Floorplan RXP 1200
Product catalog summary
Overview: This document provides technical specifications for a chiller terminal, specifically the RXP 1200 model. It includes dimensions, power requirements, and environmental conditions.
Specifications:
- Dimensions: Various measurements are provided for different parts of the machine, including heights and widths ranging from 430 mm to 3660 mm.
- Machine Height and Weight: The machine height is approximately 3550 mm, and it weighs around 26 tons.
- Power Requirements: The machine operates at 400 V +/- 10 V with a current of 63 A and connected power of approximately 44 kW.
- Pneumatic Requirements: The machine requires a pneumatic pressure of 6.5 bar with a consumption of approximately 500 liters per minute during continuous operation.
- Environmental Conditions: The maximum ambient temperature for operation is 35°C.
Connections:
- Electric and Network Connections: Indicated by specific symbols in the document.
- Air Connections: Also indicated by specific symbols.
Additional Notes:
- All dimensions and specifications are subject to change as per the revision dated 10/07.
See more
Catalog excerpts

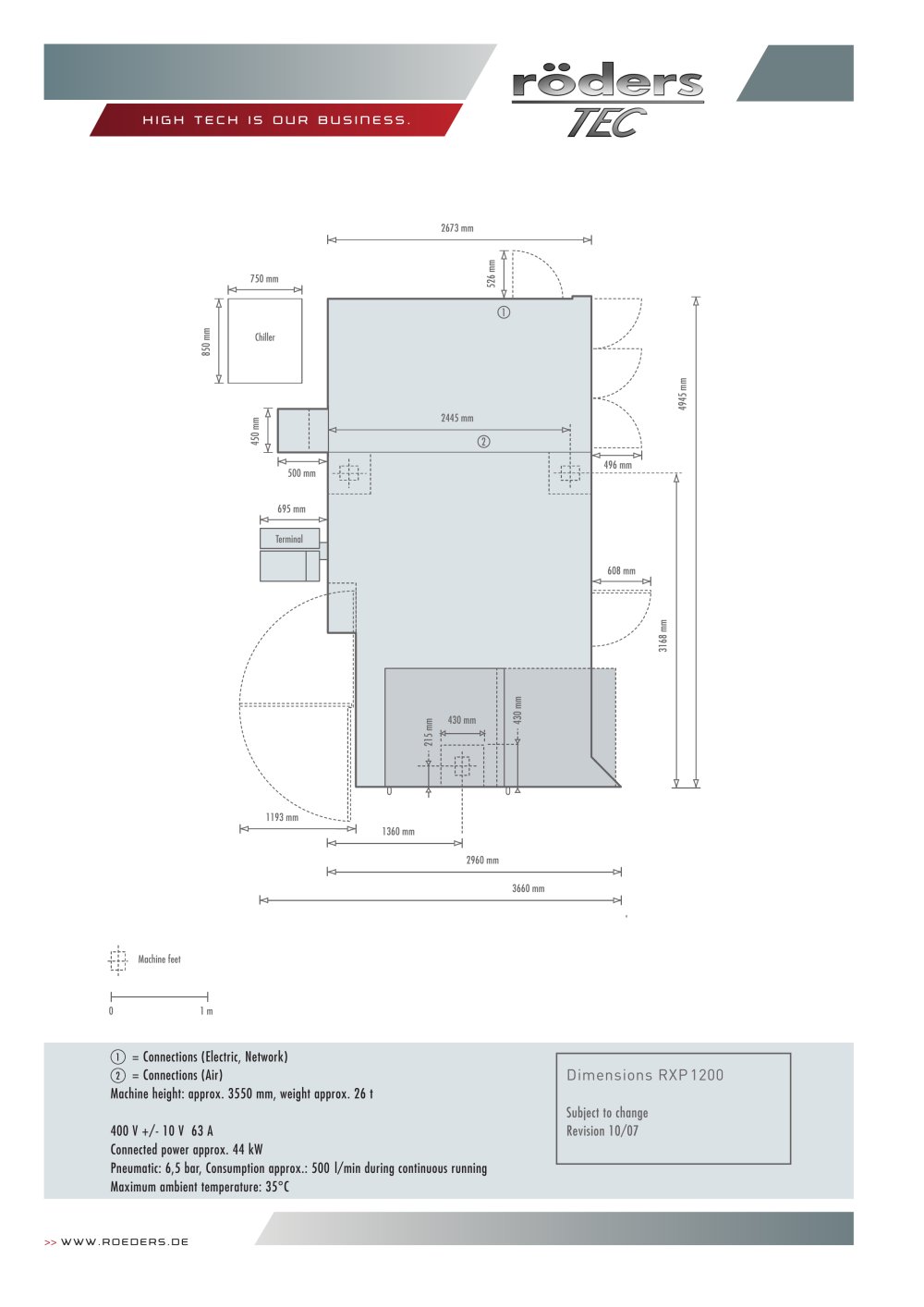

2673 mm 750 mm > 526 mm 1 > Chiller 850 mm 2445 mm > 450 mm 2 496 mm 500 mm 695 mm > Terminal 608 mm > 3168 mm4945 mm 430 mm > 430 mm 215 mm 1193 mm1360 mm 2960 mm 3660 mm Machine feet01 m > 1
