Machine Dimensions and Specifications

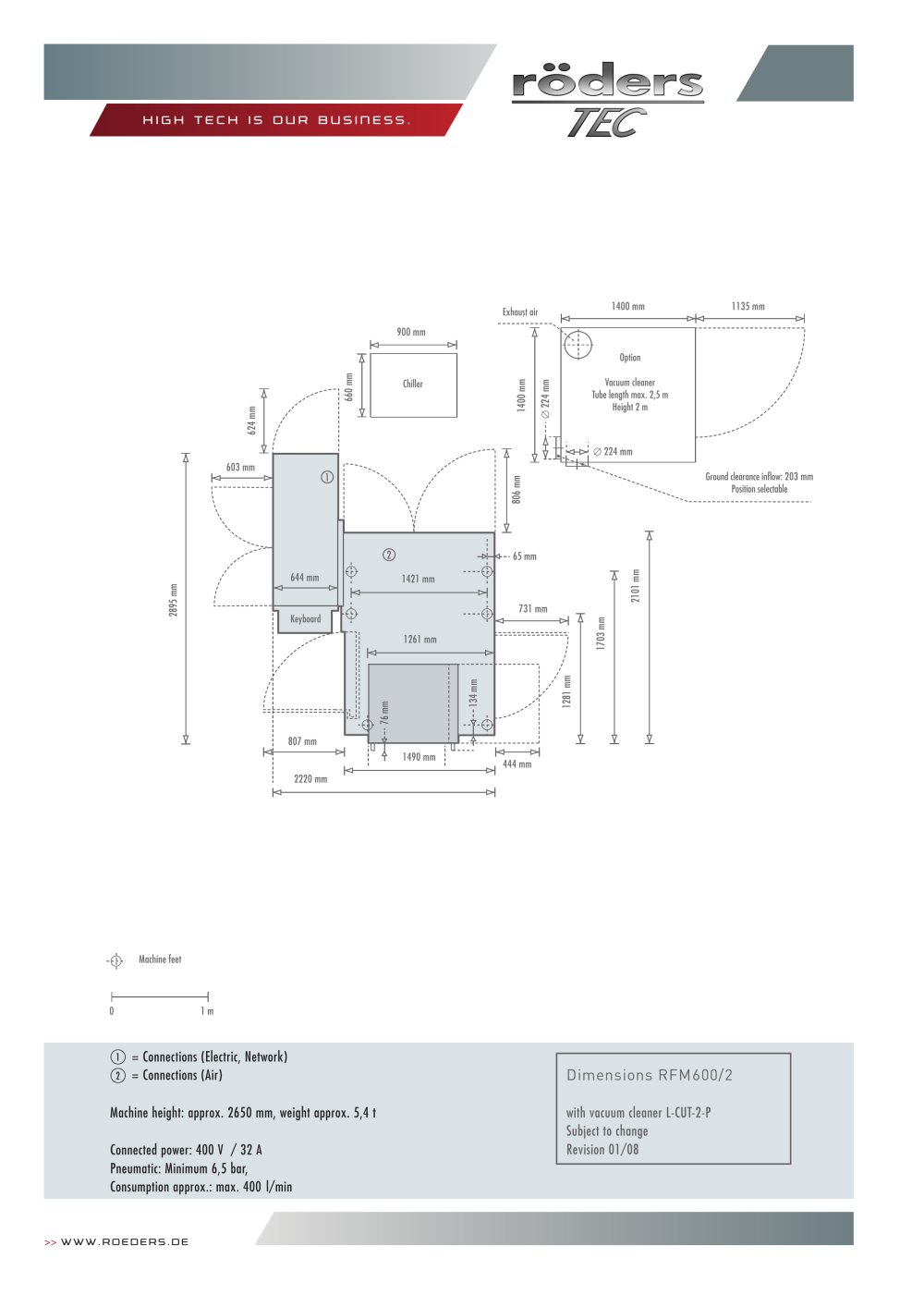

The document provides detailed measurements for the RFM600/2 machine equipped with a vacuum cleaner L-CUT-2-P. Key dimensions include a machine height of approximately 2650 mm and a weight of about 5.4 tons. Various component sizes are listed, such as 1490 mm, 2220 mm, 1421 mm, 1261 mm, and others, indicating the spatial layout and size of parts.

Connections and Utilities

The machine requires electrical and pneumatic connections. Electrical specifications are 400 V / 32 A. Pneumatic requirements include a minimum pressure of 6.5 bar with a maximum air consumption of approximately 400 liters per minute.

Vacuum Cleaner and Airflow

The vacuum cleaner option includes a maximum tube length of 2.5 meters and a height of 2 meters. Exhaust air and ground clearance for inflow are specified, with ground clearance at 203 mm. The position of the vacuum cleaner is selectable.

Additional Features and Notes

Other noted dimensions include keyboard size and chiller dimensions (660 mm by 900 mm). The document mentions machine feet and connection points for electric/network and air. The revision date is 01/08, and the document emphasizes that specifications are subject to change.

Critical Parameters and Recommendations

• Ensure electrical supply of 400 V / 32 A is available.
• Maintain pneumatic pressure at or above 6.5 bar with sufficient air flow.
• Vacuum cleaner tube length should not exceed 2.5 meters.
• Ground clearance for inflow must be maintained at 203 mm for optimal operation.
• Machine footprint and height must be considered for installation space planning.
