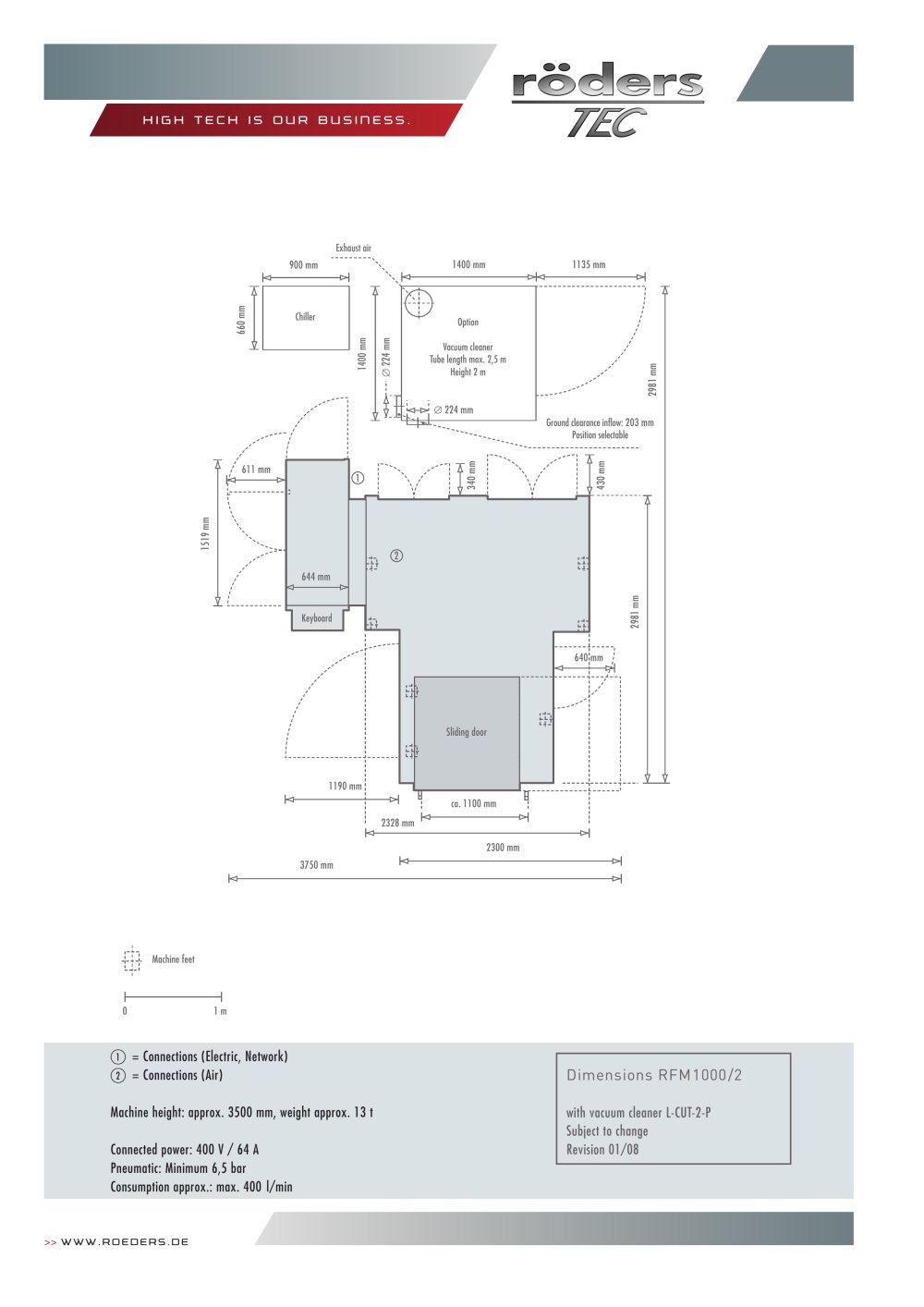

Technical Specifications

• Machine Dimensions: Length approximately 3750 mm, width approximately 2300 mm, height approximately 3500 mm.
• Weight: Approximately 13 tons.
• Ground Clearance (Inflow): 203 mm.
• Key Component Dimensions: Keyboard width 644 mm, chiller dimensions approximately 900 mm x 1400 mm x 1135 mm.
• Tube Length (Vacuum Cleaner Option): Maximum 2.5 meters, height 2 meters.

Connections and Power Requirements

• Electrical Connection: 400 V / 64 A.
• Pneumatic Connection: Minimum pressure 6.5 bar.
• Air Consumption: Maximum approximately 400 liters per minute.

Features and Options

• Selectable position for exhaust air.
• Sliding door included.
• Optional vacuum cleaner (model L-CUT-2-P) available.

Additional Notes

• Machine feet height approximately 0.1 m.
• Dimensions and specifications are subject to change (Revision dated 01/08).

Summary: This document provides detailed dimensional data, power and pneumatic requirements, and optional features for a high-tech machine model RFM1000/2. It highlights critical parameters such as machine size, weight, electrical and pneumatic connections, and accessory options to ensure proper installation and operation.
