TECHNOPLAT 3000

Product catalog summary

Overview: The Technoplat 3000 is an automatic wrapping station designed for efficient packaging operations. It offers high performance with a capacity of up to 35 pallets per hour and features an intuitive color interface for ease of use.

Specifications:

Rollers Length: 1100 mm standard, 1300 mm optional.
Table Rotation Diameter: 2130 mm (Lr=1100), 2200 mm (Lr=1300).
Max Load Weight: 1500 kg standard, 1430 kg optional.
Table Rotation Speed: 5 to 15 rpm.
Carriage Up-Down Speed: 2.5 to 7 m/min.
Film Carriage Type: PGS or PVS.
Film Tensioning: Adjustable from panel.
Film Pre-Stretch: Fixed 200% standard, variable 100-300%.
Max Pallet Dimensions: 1200x1000 mm (Lr=1100), 1200x1200 mm (Lr=1300).
Max Product Height: 2200 mm standard, up to 3100 mm optional.
Power Supply: 400 V 3Ph + PE 50/60 Hz.
Installed Power: 3.5 kW (PGS), 3.9 kW (PVS).
Working Height: 400 to 550 mm.
Max Reel Dimensions: 500x300 mm standard, 750x300 mm optional.
Max Reel Weight: 20 kg, 30 kg optional.
Film Thickness: 17 to 35 µm.
Forklifting: Lateral.

Features:

Automatic film height reduction system.
Automatic welding system.
Automatic top sheet insertion for water protection.
Pneumatic roping system.

Carriage Options:

PGS Carriage: Fixed gear pre-stretch system with optional gear sets for 150%-250%-300% pre-stretch.
PVS Carriage: Dual motor powered stretch system with adjustable stretch ratio from 100% to 300%.

Remote Control: The Rconnect system allows for 24/7 monitoring and control of machine performance from any device.

Contact Information: The document provides contact details for Robopac's production plants and subsidiaries worldwide, including locations in Italy, Germany, Brazil, USA, Russia, France, UK, Spain, and China.

Catalog excerpts

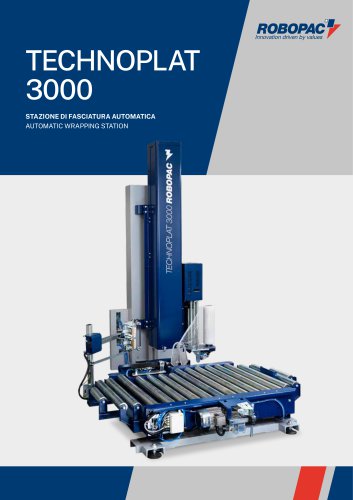

TECHNOPLAT 3000 STAZIONE DI FASCIATURA AUTOMATICA AUTOMATIC WRAPPING STATION

Open the catalog to page 1

TECHNOPLAT 3000 OPZIONALI OPTIONALS STAZIONE DI FASCIATURA AUTOMATICA AUTOMATIC WRAPPING STATION PERCHÈ TECHNOPLAT 3000? WHY TECHNOPLAT 3000? PRESTAZIONE PERFORMANCE PRODUTTIVITÀ PRODUCTIVITY FACILE DA USARE EASY TO USE Operazioni di imballo in tempi ridotti Grazie alla intuitiva interfaccia a colori Packaging operations in reduced time Thanks to the intuitive colour interface AUTOMATICA AUTOMATIC CONTROLLO DA REMOTO REMOTE CONTROL Ideale per linee automatiche Controlla, processa e archivia dati della macchina attraverso il sistema Rconnect monitorando le funzioni e performance 24/7 dal tuo device...

Open the catalog to page 2

PRODUCTION PLANTS ROBOPAC MACHINERY Via Fabrizio da Montebello, 81 - 47892 Gualdicciolo Repubblica di San Marino T. +378-0549-910511 - [email protected] www.robopac.com/machinery AETNA GROUP DEUTSCHLAND Holderäckerstrasse 17 - 70499 Stuttgart - Weilimdorf - Germany T. +49 7118067090 [email protected] ROBOPAC PACKERS Via Ca’ Bianca, 1260 - 40024 Castel San Pietro Terme, Bologna - Italy T. +39-0541-673411 - [email protected] www.robopac.com/packers Via J. Barozzi, 8 - 40053 Valsamoggia, Bologna - Italy T. +39-0510025000 - [email protected] www.robopac.com/packers Sotemapack...

Open the catalog to page 3
