COMPACTA

Product catalog summary

Overview: The document provides technical specifications and features of the Compacta series of manual rotating ring machines for spiral wrapping with stretch film, produced by Robopac. It includes details on various models (Compacta 4, 6, 9, 12) and highlights the benefits of using these machines.

Technical Specifications:

Spool Width: 125 mm for Compacta 4 and 6; 125/250 mm for Compacta 9 and 12.
Max Rotation Speed: 150 RPM for Compacta 4, 120 RPM for Compacta 6, 75/60 RPM for Compacta 9, and 58 RPM for Compacta 12.
Power Supply Voltage: 230 V 1Ph+N 50/60 Hz for Compacta 4 and 6; 400 V 3Ph+N 50/60 Hz for Compacta 9 and 12.
Installed Power: Ranges from 0.55 kW to 1.5 kW depending on the model.
Working Pressure: 6±1 bar for all models.
Compressed Air Consumption: Varies from 1.8 NI/cycle to 3.2 NI/cycle.

Machine Dimensions:

Compacta 4: L: 1010 mm, W: 1250 mm, H: 1340 mm.
Compacta 6: L: 1010 mm, W: 1450 mm, H: 1550 mm.
Compacta 9: L: 1400 mm, W: 1950 mm, H: 1850 mm.
Compacta 12: L: 2385 mm, W: 2300 mm, H: 2175 mm.

Key Features:

Small Footprint: Compact design suitable for various packaging needs.
Time Saving: Simplifies packaging processes and reduces operating time.
Increased Efficiency: Robustness enhances operational efficiency and reliability.
Flexibility: New ring dimensions and double reel options.
Cost Reduction: Stretch film wrapping reduces packaging costs.

Operational Recommendations: For optimal wrapping results, ensure the product's section aligns with the center of the rotating ring. Contact Robopac for products that occupy the non-workable grey area or for dimensions smaller than the minimum workable dimensions.

Catalog excerpts

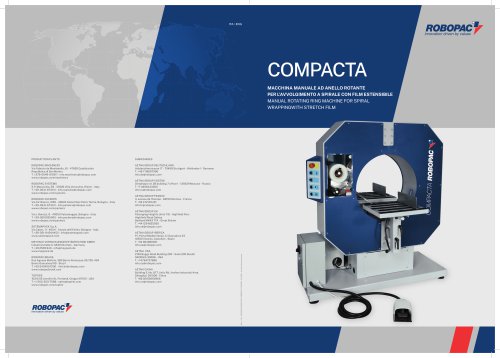

COMPACTA MACCHINA MANUALE AD ANELLO ROTANTE PER L’AVVOLGIMENTO A SPIRALE CON FILM ESTENSIBILE MANUAL ROTATING RING MACHINE FOR SPIRAL WRAPPINGWITH STRETCH FILM PRODUCTION PLANTS ROBOPAC MACHINERY Via Fabrizio da Montebello, 81 - 47892 Gualdicciolo Repubblica di San Marino T. +378-0549-910511 - [email protected] www.robopac.com/machinery AETNA GROUP DEUTSCHLAND Holderäckerstrasse 17 - 70499 Stuttgart - Weilimdorf - Germany T. +49 7118067090 [email protected] ROBOPAC PACKERS Via Ca’ Bianca, 1260 - 40024 Castel San Pietro Terme, Bologna - Italy T. +39-0541-673411 - [email protected] www.robopac.com/packers Via J. Barozzi, 8 - 40053 Valsamoggia, Bologna - Italy T. +39-0510025000 - [email protected] www.robopac.com/packers SOTEMAPACK S.p.A. Via Calari, 11 - 40011 - Anzola dell’Emilia, Bologna - Italy T. +39-051-64244452 - [email protected] www.sotemapack.com MEYPACK VERPACKUNGSSYSTEMTECHNIK GMBH Industriestraße 3, 48301 Nottuln - Germany T. +49 2509 940 - [email protected] www.meypack.de ROBOPAC BRASIL Rua Agnese Morbini, 380 Bairro Pomarosa-95.700-404 Bento Goncalves/RS - Brazil T. +55 5434557200 - [email protected] www.robopacbrasil.com TOPTIER 10315 SE Jennifer St, Portland, Oregon 97015 - USA T. +1-503-353-7588 - [email protected] www.robopac.com/toptier AETNA GROUP VOSTOK Otradnaya str. 2B building 7 office 1 - 129329 Moscow - Russia T. +7 4956443355 [email protected] AETNA GROUP FRANCE 4, avenue de l’Europe - 69150 Décines - France T. +33 472145401 [email protected] AETNA GROUP UK Packaging Heights Units 7/8 - Highfield Parc Highfield Road Oakley Bedford MK43 7TA - Great Britain T. +44 1234825050 [email protected] AETNA GROUP IBERICA P.I. Portal Mediterráneo, C/ Dauradors 23 12500 Vinaròs, Castellón - Spain T. +34 964860901 [email protected] AETNA USA 2150 Boggs Road Building 200 - Suite 200 Duluth GEORGIA 30096 - USA T. +1 6784737896 [email protected] AETNA CHINA Building 2, No. 877, Jinliu Rd. Jinshan Industrial Area, Shanghai, 201506 - China T. +86 02162665966 [email protected] Rev n. 00 - 3470300415 DEPLIANT COMPACTA ITA/ENG - 01/2025 - Acanto Comunicazione ROBOPAC SYSTEMS S.P. Marecchia, 59 - 47826 Villa Verucchio, Rimini - Italy T. +39-0541-673411 - [email protected] www.robopac.

Open the catalog to page 1

ROBOPACy Innovation driven by values r RISPARMIO DI TEMPO TIME SAVING PICCOLO INGOMBRO SMALL FOOTPRINT Semplificazione dei processi d'imbaUaggio e riduzione dei tempi operativi. Simplification of packaging processes and reduction of operating time. design compatto si adatta a diverse esigenze d’imbaUaggio. The compact design adapts to different packaging needs. EFFICIENZA AUMENTATA INCREASED EFFICIENCY RIDUZIONE COSTI D'IMBALLAGGIO PACKAGING LOW-COST Area non lavorabile (per prodotti che intersechino I’area grigia contattare Robopac)/ Non workable area (for products that occupy the grey area...

Open the catalog to page 2
