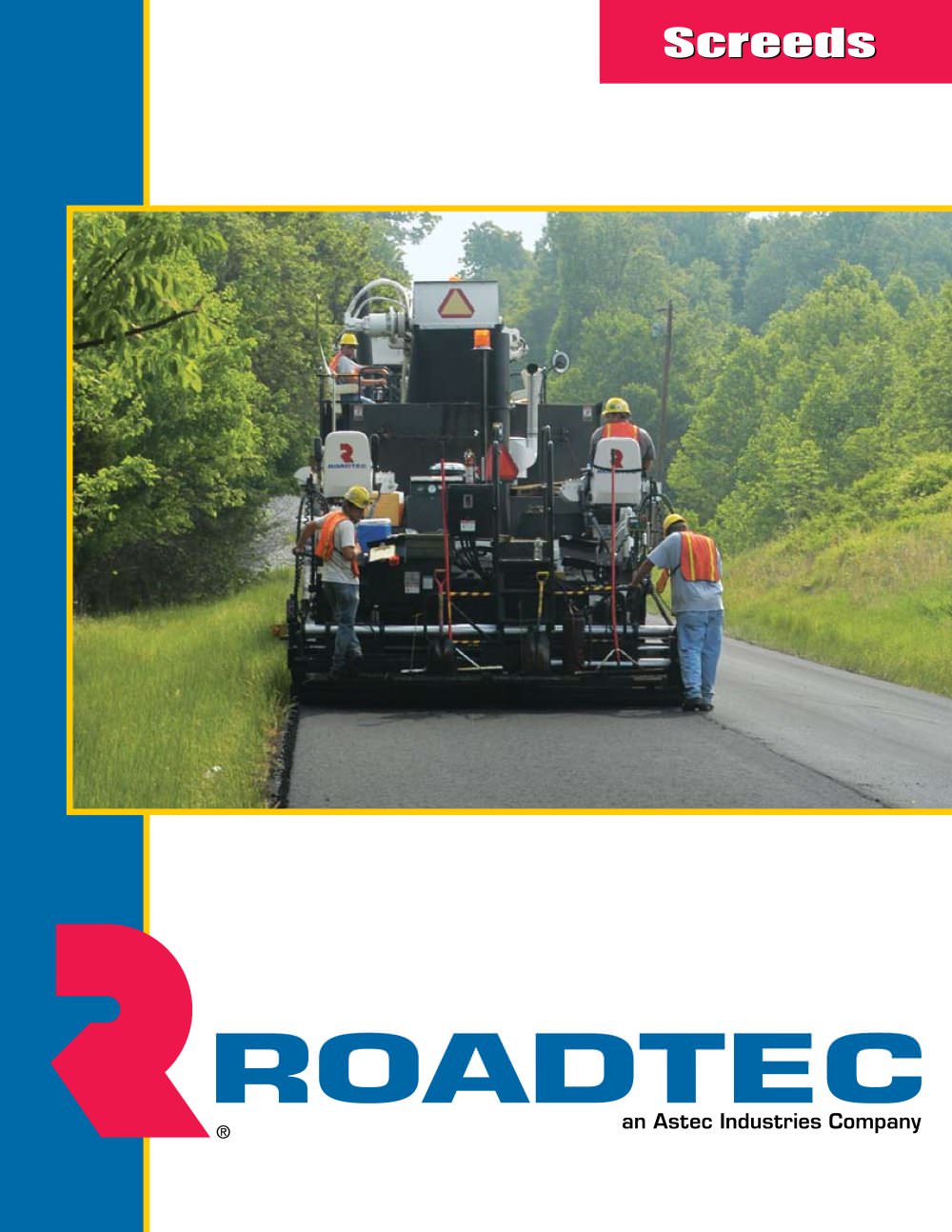

Screed Brochure

Product catalog summary

Overview
Roadtec offers a range of screeds designed for ease of operation and maintenance, with models available in 8-foot and 10-foot versions. These screeds are known for their ruggedness and functionality, making them a preferred choice for professional road builders. All screeds are designed and manufactured in the U.S.

Electric Heating System
All screed plates are electrically heated, providing an advantage over diesel-heated alternatives by ensuring even heat distribution without smoke or warped plates. The heating elements are accessible through a side door, allowing for easy replacement. A 34kW generator powers the elements and provides additional current for other electrical needs.

Eagle Series
The Eagle Series features rear-mounted extensions for even compaction and consistent mat density. The screed plates are reversible for extended wear life. The series includes adjustable pre-strikeoffs and offers various extension options to achieve different paving widths.

S & SC Series
The S & SC Series are versatile screeds with options for bolt-on extensions. The S Series offers straightforward solutions with hydraulic strikeoffs, while the SC Series features front-mounted hydraulic extensions for easy transport and extended paving capabilities.

Carlson EZ Series
The Carlson EZ Series includes electrically heated vibratory screed plates with front-mounted extensions. The series is known for its tapered plates that ensure uniform mat distribution. The EZIV model offers high-composite bushings and chrome slide tracks for durability.

Key Features
All screeds come with standard features such as pre-strikeoffs, dual control stations, a 34kW generator, and motorized crown adjustments. The Carlson series includes a unique food warming oven for crew convenience.

Specifications
The document provides detailed specifications for each model, including paving widths, screed plate depth, adjustable vibration, and extension options. The Eagle Series offers the longest wear life with reversible plates, while the Carlson series provides additional features like a food warming oven and adjustable angle of attack on extensions.

Catalog excerpts

Heat is distributed evenly across the plate after only 30 minutes of heating. The heating elements are heavy-duty and only need to run at 1/3 rated capacity to keep the screed hot. A side access door makes changing out heating elements easy. > All Electric Heat 110 Volt outlets for lights or tools. Plug connection for extension heat. Clean, fume-free electric heat. Roadtec pioneered electric screeds in the U.S. and has been building a full line of electric screeds since 2000. >

Open the catalog to page 2

Roadtec Eagle Series Eagle screed extensions are rear-mounted. > AdjustablePre-strikeoff Mix behind paver > The exclusive Eagle screed sub frame. Two-piece, spring-loaded endgates have replaceable wear plates. Adjustable pre-strikeoffs are standard on all our main screeds as well as on Eagle Series and Carlson extensions. Two guide tubes on each side support the Eagle extensions. >

Open the catalog to page 3

ModelS Series ExtensionsSC Series ExtensionsTaper Joint > Attachments H&V36"H&V6"H&V12 "H&V18" H&V24" 12Ҕ 18 S-8 > H = Heat, H & V = Heat and Vibration, C = Crownable. Extensions come in right-hand and left-hand versions. Complete extension packages, including augers, bearings, brackets, and supports are available. Additional cut-off shoes available. >

Open the catalog to page 4

%XTENSION%XTENSION Carlson Screeds ModelExtensionsTaper Joint AttachmentsBerm BuilderH12" H 18" H > 24" 12"18 "24" manual hydraulic EZIII-8 > H = Heated. Extensions come in right-hand and left-hand versions. Complete extension packages, including augers, bearings, brackets, and supports are available. Additional cut-off shoes available. >

Open the catalog to page 5

Along with electric screed heat and heating elements that can be changed out without taking the screed apart, all our screeds have the following as standard equipment: Pre-strikeoffs, dual control stations with lockable vandal covers; detachable remote controls; 34kW generator with dedicated hydraulic pump; spring-loaded, two-piece end gates; and motorized individual lead and tail crown adjustments (power crown). Two-piece, spring-loaded endgates handle grade changes. endgate e e e e en e e e en e e en e e e en en en e e e e e en en en en en en en e en e e e e n n n n n n n n n n n n n n n n...

Open the catalog to page 6
