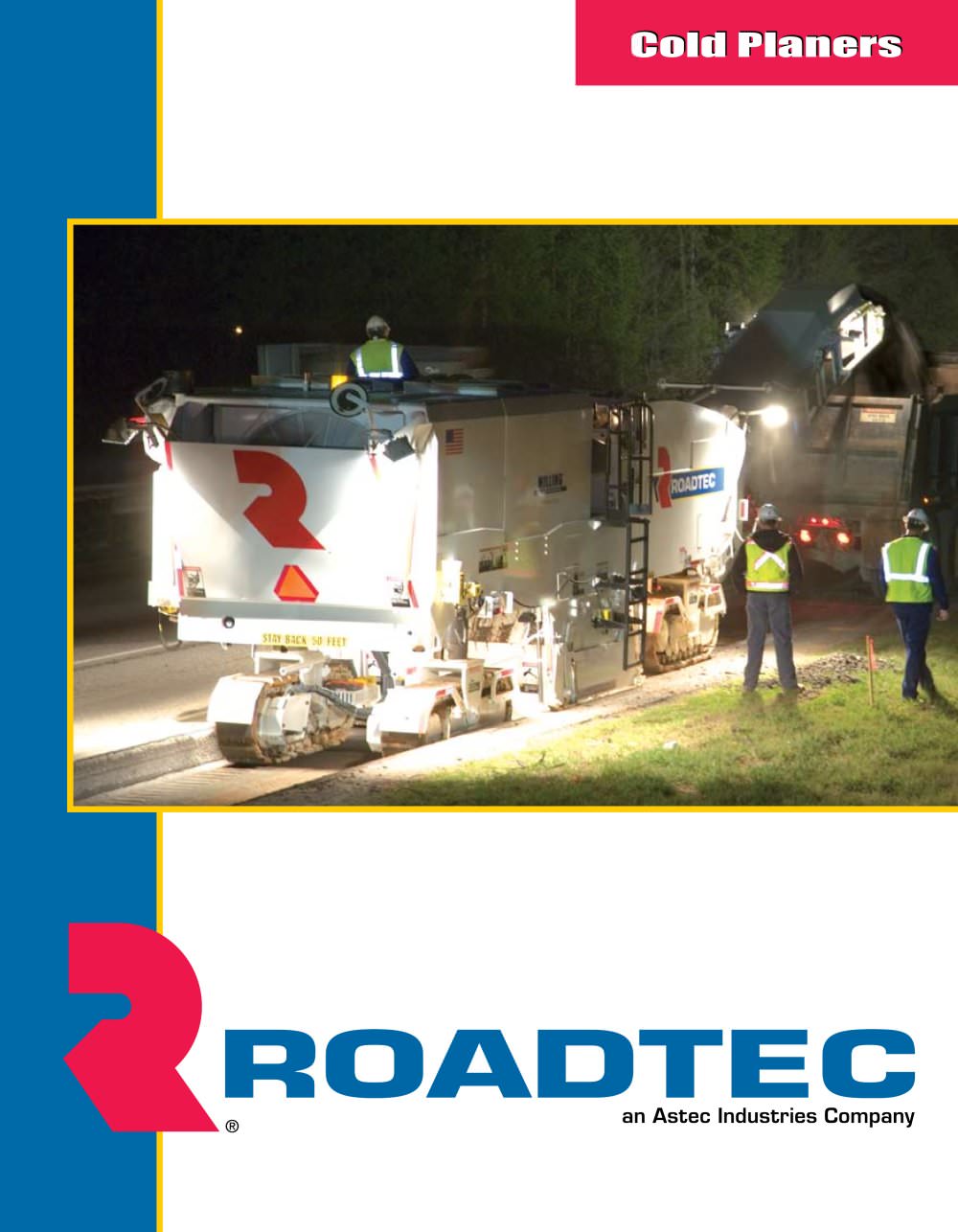

Planer Brochure
12Pages

Cold Planers Cold Planers >

Powerful and well-balanced, Roadtec cold planers will outwork the competition. Designed and built in the U.S., Roadtec cold planers offer you solid design features, systems that are simple to troubleshoot, and parts that are non-proprietary and cost less. Plus you get exclusive features like our 60 conveyor swing to either side, choice between 3 or 4-tracks, and the famous 24-hour Roadtec customer support. > RX-900 Equipped with a 950 hp (708 kW) CaterpillarЮ engine, this machine cuts up to 14 ft. (411cm) wide and 14 (35.5cm) deep. The RX-900 is the best choice if you do lots of full-lane,...

Milling an uneven pavement before repaving will make resufacing easier and will assure you the best possible situation for achieving smoothness, especially if your cold planer is equipped with automated grade and slope controls. And you can turn the removed material into money by recycling it in your own asphalt plant or selling it to an asphalt producer. > A 30,000 ton pile of RAP with an average 6% liquid AC content is the equivalent of about 28,200 tons of clean aggregate plus 420,000 gallons of liquid asphalt! This material can replace virgin materials in new mix. The recycled materials...

The Right Balance of Power, Maneuverability and Weight > A cold planer needs to be heavy enough to perform in the cut, yet easy to transport to the job site. The kind of work the machines have to do requires a powerful engine and the ability to follow trucks through tight turns or in adjacent lanes. Roadtec has worked to properly balance these requirements in its cold planer model line. It Starts with a Strong Frame > All Roadtec Cold Planer frames are made from extremely strong BethStar 80 low-carbon, low-sulfur steel. It has twice the yield strength as the mild steel used in other...

Triple-pitch used in Roadtec Shuttle Buggy MTVs V Ғ s Various coordinated steering modes for maximum maneuverability. Front conveyors can swing 60 to the right or left. Dual operator stations on a vibration-isolated platform. >

Cutters Adjustable endgates with replaceable shoes Gear box hasbreak-awayԔ shear coupling The easy-to-install one-piece cutter housing is lined with wear plates. An asphalt emulsion package consisting of pumps and meters for cold-in-place recycling work.

The front moldboard can be set to float with the elevation, or in a fixed position. Height of the rear moldboard is fully adjustable. This Roadtec feature comes in especially handy when using the cold planer as a reclaimer in the preparation of sub-base. Raise the rear board completely to easily access the drum and cutter teeth. When the moldboard is fully raised the drum is disengaged for safety.Both the rear and front moldboard on Roadtec cold planers are angled in toward the drum by 10. This allows less material to accumulate around the drum, which means increased component life,...

Extra Features to Make the Work Go Smoother > Youll enjoy thoughtful features that can make the work day go better. From better dust control to better noise and vibration control, Roadtec strives to give you what you need so you have the best possible conditions for productivity and profitability. Please see the last page for all options. Front & Rear Spray Bars Instead of One > Two independent stainless steel spray bars in the cutter housing provide much better dust reduction and tool cooling. The systemҒs water tank is completely lined and can be filled on the fly from three different...

Straight-Forward and Easy to Work on > The design of Roadtec cold planers makes for easy trouble-shooting and maintenance and avoids costly downtime and expensive repairs. Often minor issues can be fixed right in the field because Roadtec machines dont require complicated computer diagnostics. You can buy many maintenance parts straight off the shelf. Engine Access CouldnҒt Be Easier > Gull wing engine covers raise and lower hydraulically Central lube point Roadtec cold planers offer the best engine access in the industry. Two gullwing style covers raise hydraulically for complete access....

AUXILIARY POWER 4KW 60 Hz Continuous Duty Hydraulic Generator 4KW 50 Hz Continuous Duty Hydraulic Generator 15KW 60 Hz Continuous Duty Hydraulic Generator 15KW 50 Hz Continuous Duty Hydraulic Generator ADDITIONAL LIGHTING (Generator Required) Night Work Package Includes four 500W, 120V lights w/ brackets and mounting hardware GRADE CONTROL Roadtec Contacting Grade Control - Includes dual hydraulic grade controls with electric jacks and electric over hydraulic slope controlMoba Non-Contacting Base System - Includes dual control boxes, dual wire rope sensor, dual sonic sensors, slope sensor,...

RX-400 cold planer. 325 hp/ 242 kW. RX-500 cold planer. 600 hp/447 kW. RX-700 cold planer. 700 hp/522 kW. RX-900 cold planer. 950 hp/ 708 kW. Clean, fume-free electric heat. Roadtec pioneered electric screeds in the U.S. and has been building a full line of electric screeds since 2000. >
