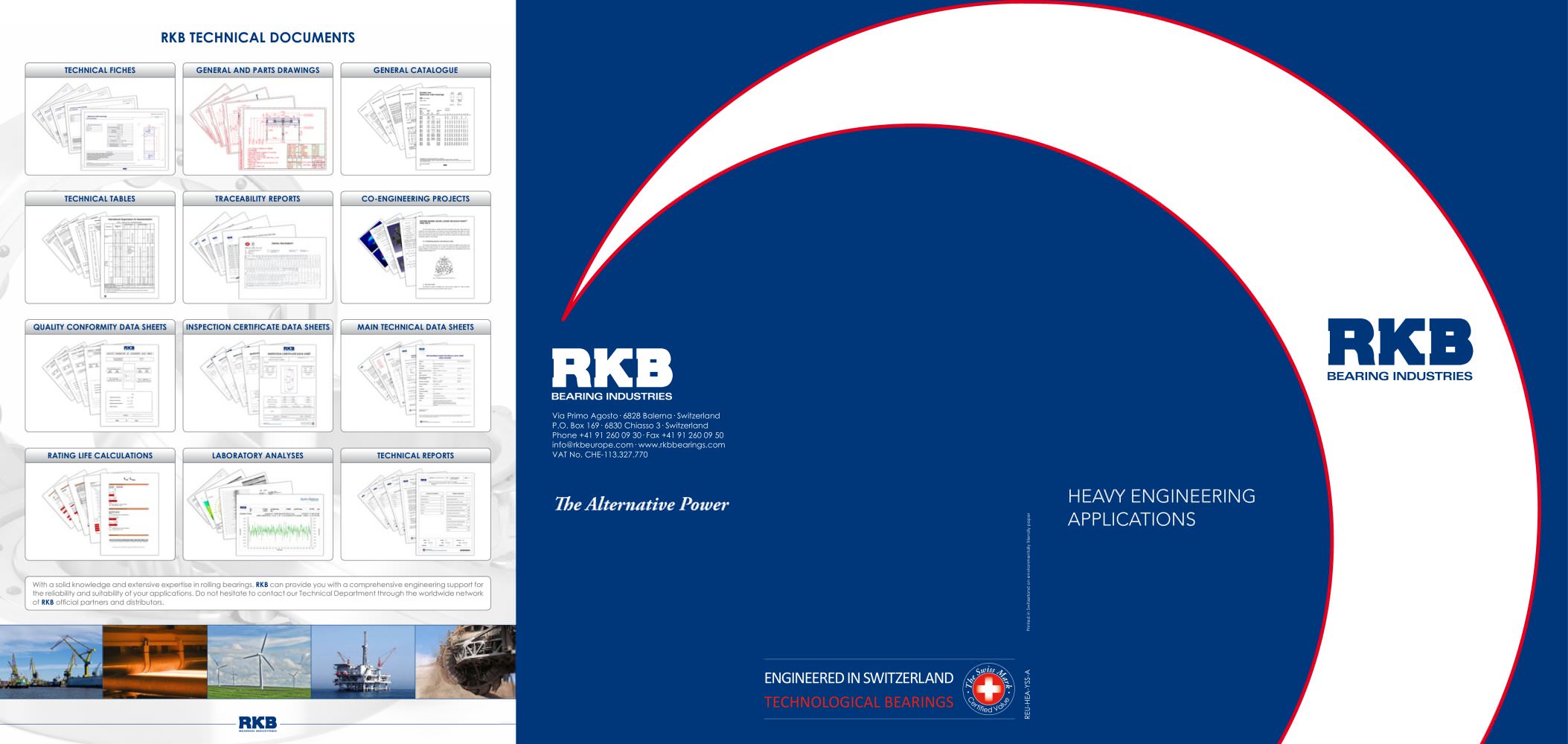

RKB TECHNICAL DOCUMENTS GENERAL AND PARTS DRAWINGS GENERAL CATALOGUE TECHNICAL TABLES TRACEABILITY REPORTS CO-ENGINEERING PROJECTS QUALITY CONFORMITY DATA SHEETS INSPECTION CERTIFICATE DATA SHEETS MAIN TECHNICAL DATA SHEETS RATING LIFE CALCULATIONS LABORATORY ANALYSES TECHNICAL REPORTS Via Primo Agosto· 6828 Balerna· Switzerland P.O. Box 169· 6830 Chiasso 3· Switzerland Phone +41 91 260 09 30· Fax +41 91 260 09 50 [email protected]· www.rkbbearings.com VAT No. CHE-113.327.770 Printed in Switzerland on environmentally friendly paper With a solid knowledge and extensive expertise in rolling bearings, RKB can provide you with a comprehensive engineering support for the reliability and suitability of your applications. Do not hesitate to contact our Technical Department through the worldwide network of RKB official partners and distributors. ENGINEERED IN SWITZERLAND TECHNOLOGICAL BEARINGS TECHNICAL FICHES Heavy Engineering Applications

RKB BEARINGS FOR HEAVY ENGINEERING APPLICATIONS VERTICAL LIFTING SYSTEMS FOR BRIDGE Main RKB bearings: T3 Segment - Spherical roller bearings • Radial load on main bearing > 8000 kN • Safety factor (S0) as per bridge design and safety specifications • Rolling evaluated to the limits of elastohydrodynamic contacts RKB BEARINGS FOR HEAVY ENGINEERING APPLICATIONS BRIDGE AND DAM LIFTING SYSTEMS Main RKB bearings: T3 Segment - Spherical roller bearings The Swiss Bearing Manufacturer • Big size spherical and cylindrical roller bearings • Up to 560 mm inner diameter • Safety factor (S0) > 7 considering...
