RTP-200

Product catalog summary
Overview: The document provides technical specifications and features of the RTP-200 Roll-In Table Press, a 200-ton capacity machine designed for custom manufacturing needs. It highlights standard features, available options, and technical specifications.
Standard Features:
  • Powered movable table for easy loading and positioning of workpieces under the cylinder.
  • Powered movable workhead for off-center work, allowing cylinder positioning from left to right with a lever.
  • Pressure regulator to limit ram pressure.
  • Hydraulic power-lift for vertical displacement of the head assembly.
  • Fingertip-controlled cylinder activation for adjustable ram speed.
Available Options:
  • VB-200: V Blocks matched pair.
  • FSG-200: Front safety guard for operator protection.
  • SSE-200: Stop/Start with emergency stop button, wired directly to the motor.
  • PP-200: Pressing Plate.
Specifications:
  • Model: RTP-200
  • Power: 10 HP, 3 phase
  • Bore: 200
  • Stroke: 80"
  • Press Return Advance Ram Speed: 12" 20" 6 IPM 24 IPM 9,000 RTP-200 29 IPM
  • Capacity: 200 tons
  • Weight: 9,000 lbs.
  • Shipping Dimensions: 84.000 x 60.000 x 70.000 inches
Additional Information: The machine is made in Canada and offers standard voltages, which should be specified when ordering. The document includes front and back views of the RTP-200.
See more

Catalog excerpts

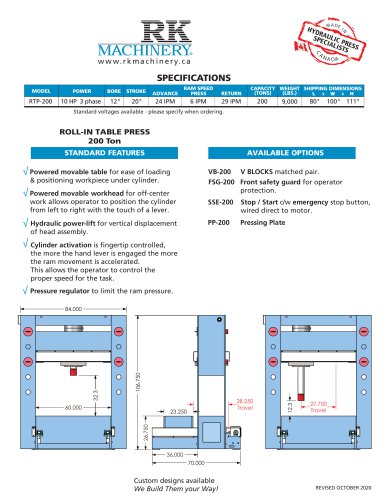

RTP-200-1

MACHINERY. SPECIFICATIONS MODEL Standard voltages available - please specify when ordering. V Powered movable table for ease of loading & positioning workpiece under cylinder. V Powered movable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever. V Hydraulic power-lift for vertical displacement of head assembly. V Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task. V Pressure regulator to limit the ram pressure. VB-200 V BLOCKS matched pair. FSG-200 Front safety guard for operator protection. SSE-200 Stop / Start c/w emergency stop button, wired direct to motor. Custom designs available We Build Them your Way!

 Open the catalog to page 1
RTP-200-2

RTP - 200 ROLL-IN TABLE PRESS 200 TON Front View Back View

 Open the catalog to page 2

All RK Machinery Ltd catalogs and technical brochures

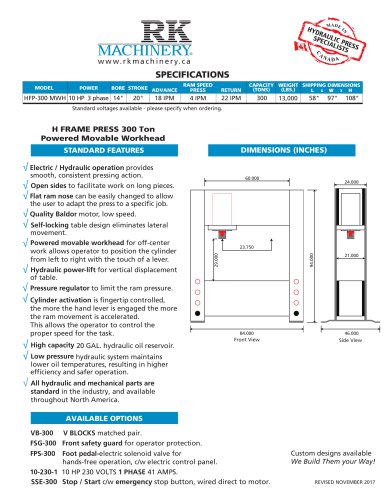

  1. HFP-300 MWH
    HFP-300 MWH

    1  Page

  2. HFP-300
    HFP-300

    1  Page

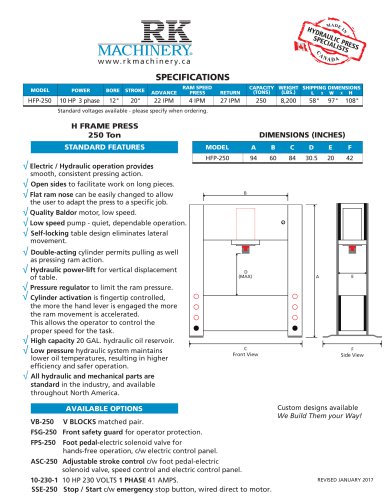

  3. HFP-250
    HFP-250

    1  Page

  4. CFP-12
    CFP-12

    1  Page

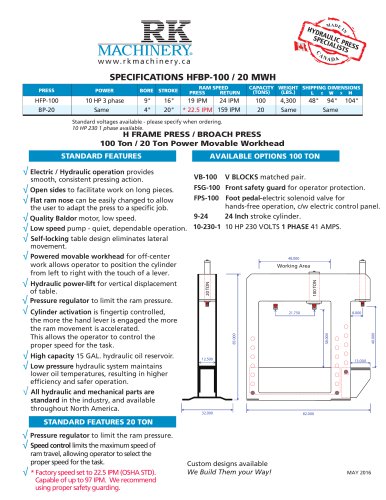

  5. HFBP-100 / 20 MWH
    HFBP-100 / 20 MWH

    1  Page

  6. HFBP-50/12 STD
    HFBP-50/12 STD

    1  Page

  7. BP-20
    BP-20

    1  Page

  8. HFP-200
    HFP-200

    1  Page

  9. HFP-150
    HFP-150

    1  Page

  10. HFP-100
    HFP-100

    1  Page

  11. HFP-50 MWH XW
    HFP-50 MWH XW

    1  Page

  12. HFP-50 MWH
    HFP-50 MWH

    1  Page

  13. HFP-50
    HFP-50

    1  Page

  14. HFP-30 MWH
    HFP-30 MWH

    1  Page

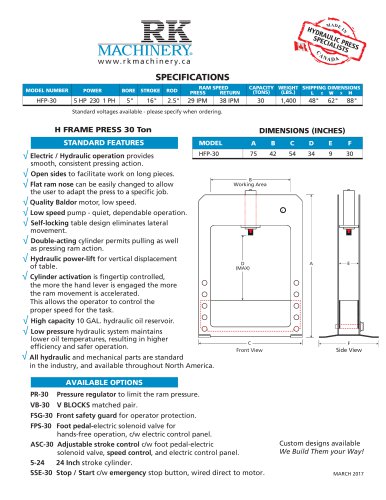

  15. HFP-30
    HFP-30

    1  Page

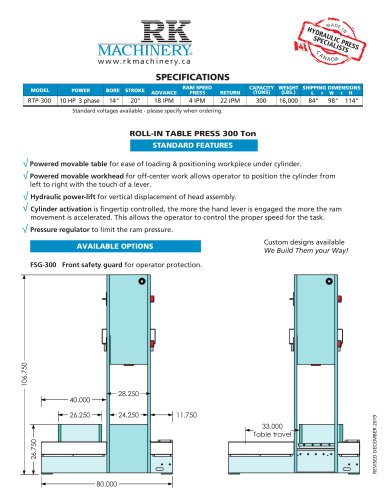

  16. RTP-300
    RTP-300

    3  Pages

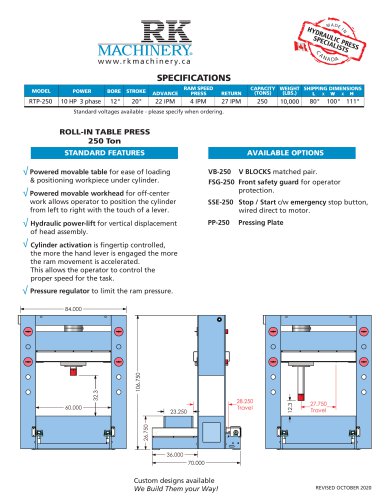

  17. RTP-250
    RTP-250

    2  Pages

  18. RTP-150
    RTP-150

    2  Pages

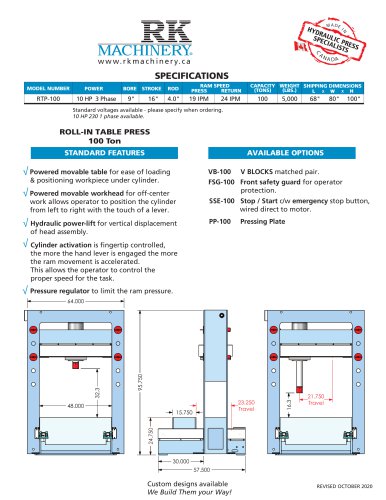

  19. RTP-100
    RTP-100

    2  Pages

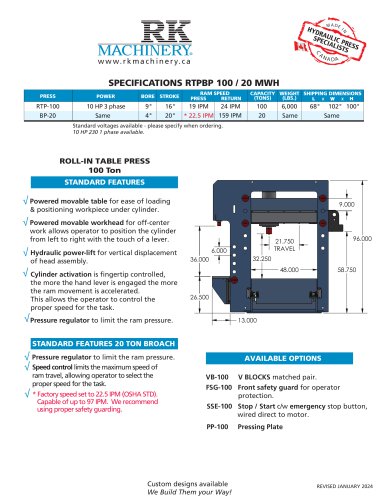

  20. ROLL-IN TABLE PRESS - RTPBP 100 / 20 MWH
