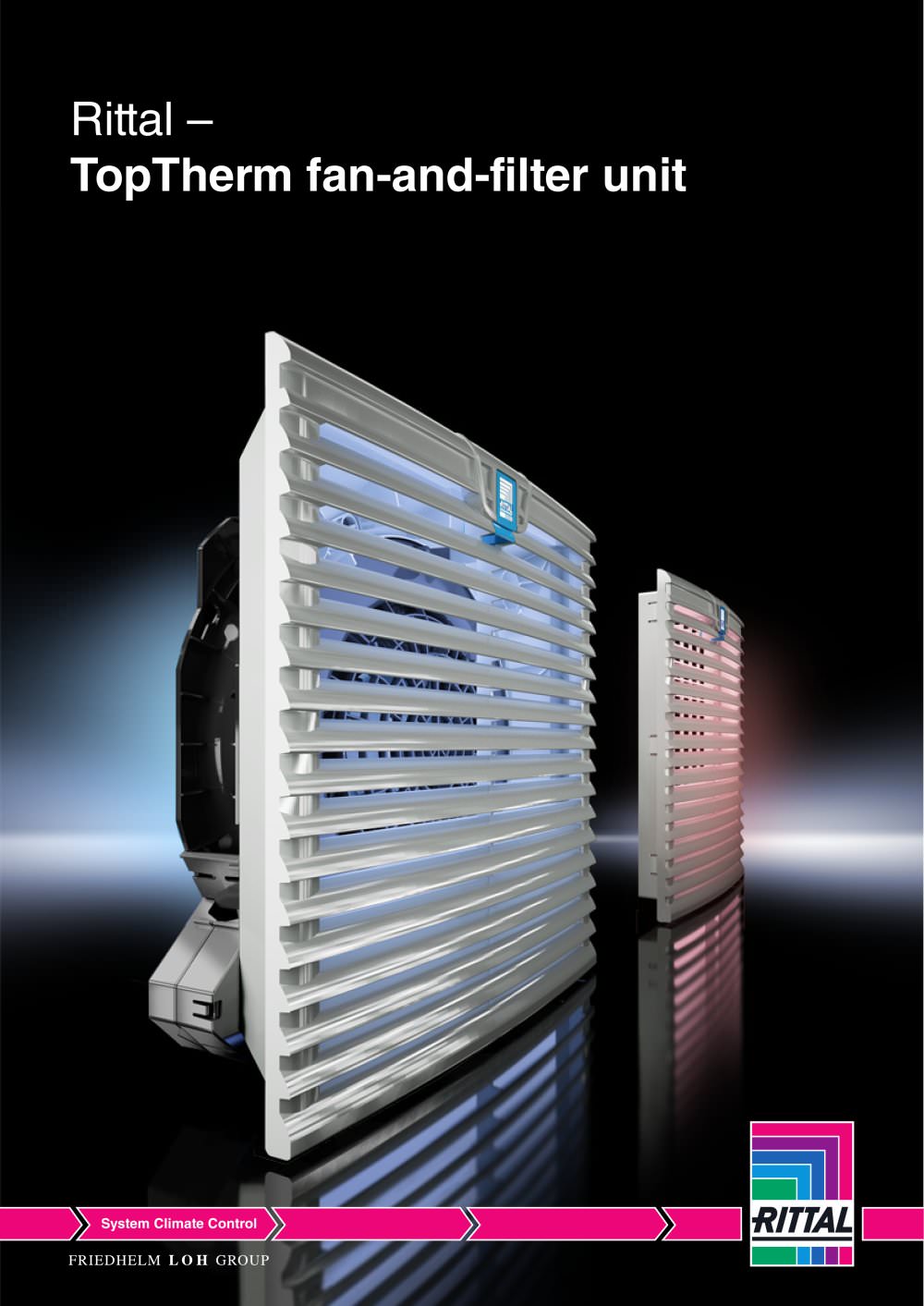

Rittal – TopTherm fan-and-filter unit System Climate Control

Open the catalog to page 1

2 More pressure. Higher air flow rates.

Open the catalog to page 2

3 Assembly without tools œ Straightforward assembly, exchange and maintenance with no need for tools of any kind œ Simple reversal of the air flow direction by turning the fan module œ Individual positioning of the power connection œ Spring clamp terminals for electrical connection without tools œ Louvred grille latch for fast filter mat replacement without tools Efficient technology œ Air throughput from 20 to 700 m³/h œ New diagonal fan technology for greater pressure stability and constant air flows in use, even with a contaminated filter mat œ Minimum installation depth œ Flow-optimised...

Open the catalog to page 3

TopTherm fan-and-filter unit 4 Rittal – TopTherm fan-and-filter unit Supply includes: Complete unit ready to install, including filter mat. B = Width H = Height T = Depth H2 B2 H1 T1 T2 B1 Air throughput 20 – 66 m3/h Model No. SK fan-and-filter unit 3237.100 3237.110 3237.124 3238.100 3238.110 3238.124 Model No. SK fan-and-filter unit – EMC 3237.600 – – 3238.600 – – Rated operating voltage V, Hz 230, 50/60 115, 50/60 24 (DC) 230, 50/60 115, 50/60 24 (DC) Dimensions mm B1/H1 116.5 x 116.5 148.5 x 148.5 B2/H2 92 x 92 124 x 124 T1 16 16 Max. installation depth mm T2 43 58.5 Air throughput,...

Open the catalog to page 4

TopTherm fan-and-filter unit Rittal – TopTherm fan-and-filter unit 5 Air throughput 105 – 120 m3/h Air throughput 180 – 250 m3/h Model No. SK fan-and-filter unit 3239.100 3239.110 3239.124 Model No. SK fan-and-filter unit – EMC 3239.600 – – Rated operating voltage V, Hz 230, 50/60 115, 50/60 24 (DC) Dimensions mm B1/H1 204 x 204 B2/H2 177 x 177 T1 24 Max. installation depth mm T2 90 Air throughput, unimpeded air flow 105/120 m3/h 105 m3/h Air throughput with outlet filter including standard filter mat 1 x SK 3239.200: 87/100 m³/h 2 x SK 3239.200: 93/108 m³/h 1 x SK 3240.200: 98/111 m³/h...

Open the catalog to page 5

Accessories for fan-and-filter units Rittal – TopTherm fan-and-filter unit 7 Hose-proof hood For fan-and-filter units/outlet filters. When the hose-proof hood is mounted above the fan-andfilter unit and outlet filter in conjunction with a fine filter mat, a protection category of IP 56 to EN 60 529 is achieved. Material: Stainless steel, silicone Protection category: In conjunction with the fan-and-filter units/outlet filters, NEMA 3R + 12 is met. For fan-and-filter unit Dimensions mm Model No. SK SK 3237. . . . 150 x 230 x 40 3237.080 SK 3238. . . . 176 x 245 x 55 3238.080 SK 3239. . . ....

Open the catalog to page 7

Rittal GmbH & Co. KG Postfach 1662 D-35726 Herborn Telephone: +49(0)2772 505-0 Telefax: +49(0)2772 505-2319 eMail: info@rittal.de www.rittal.com 04/2010 E302 Rittal – The System. Faster – better – worldwide. Maximum efficiency, reduced costs, energy savings. Rittal’s strategy says think in terms of system solutions and provide a system for all applications – from power distribution and automation, to building installation, through to the IT infrastructure. And offer your customers unprecedented benefits. Industrial enclosures Power distribution Electronic packaging System climate control IT...
