RITTAL
Monitor/keyboard unit

Monitor/keyboard unit

Product catalog summary

Overview: The Rittal monitor/keyboard unit is a compact 1 U console designed for efficient server administration. It features a 17˝ TFT display with VGA/DVI connection, a full keyboard with a numerical keypad, and a touchpad. The unit is designed to minimize heat build-up by automatically switching off the backlight when closed, resulting in a standby power consumption of less than 1 W.

Specifications:

Display: 17˝ TFT with a native resolution of 1280 x 1024, 4:3 format, 16.7 million colors, brightness of approximately 350 cd/m2, and a contrast ratio of approximately 1000:1.
Dimensions: Approximately 448 mm (W) x 1 U (H) x 680 mm (D).
Power: Mains voltage of 100 – 240 V AC, 50 – 60 Hz, with a maximum power consumption of 32 W in operation and less than 1 W when closed.
Operating Temperature: Ambient temperature range of +5°C to +45°C.

Features:

High-quality manufacturing with analog and digital video input.
Separate numerical keypad and optional integrated KVM switch for up to 32 server connections in just 1 U.
Simple installation process that can be performed by one person.

Additional Information: The unit can be combined with Rittal KVM switches (models SSC view 8 USB or SSC view 32 Cat) for expanded server access. Rear connections include mains power, VGA, DVI-D, PS/2, USB, and power supply for KVM.

Product Variants: Available in different keyboard color packs and language versions, with extended delivery times for certain models.

Contact Information: Rittal GmbH & Co. KG, Postfach 1662, D-35726 Herborn, Germany. Telephone: +49(0)2772 505-0, Fax: +49(0)2772 505-2319, Email: [email protected], Website: www.rittal.com

Catalog excerpts

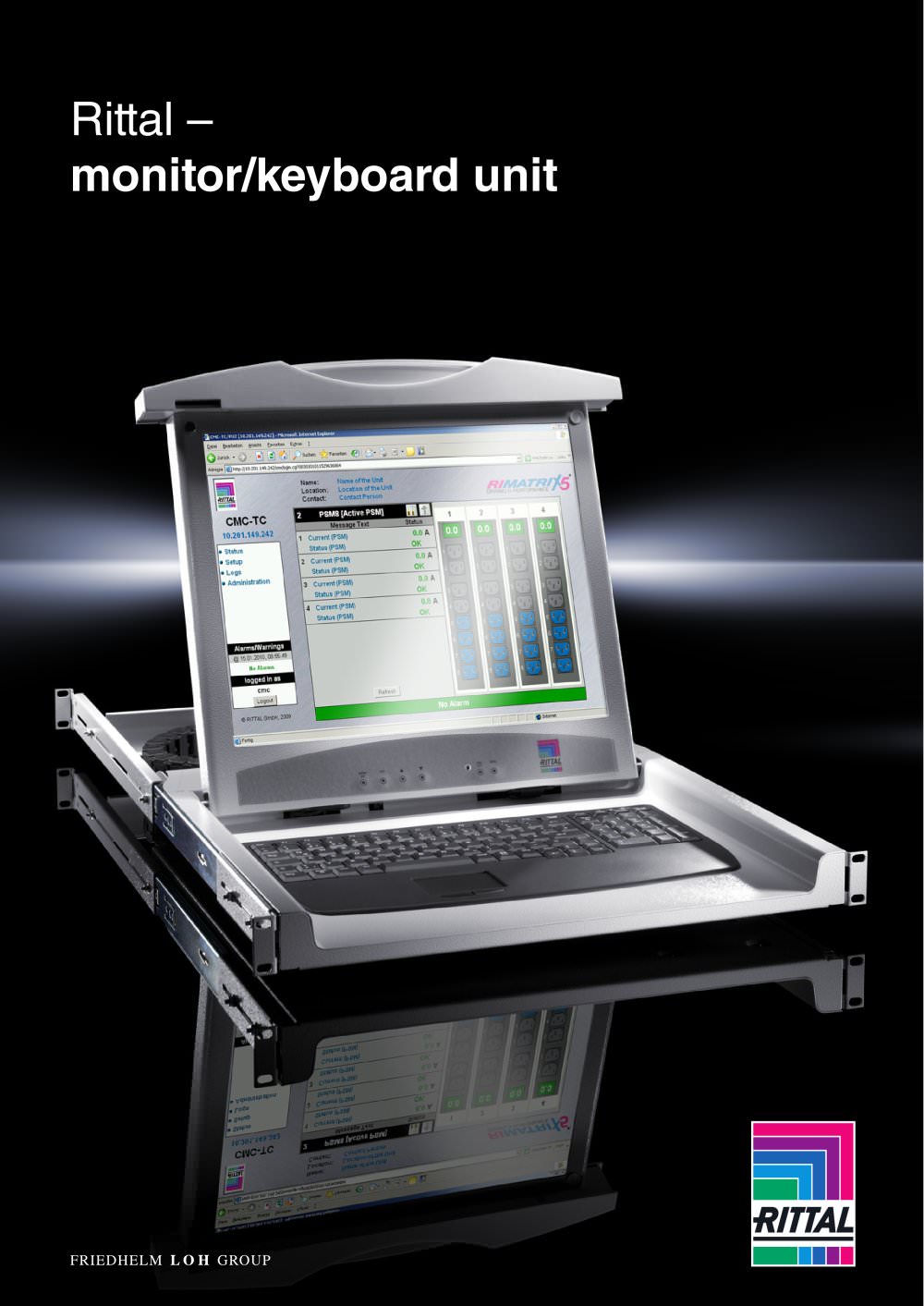

Rittal – monitor/keyboard unit

Open the catalog to page 1

Monitor/keyboard unit, 1 U with 17½ TFT display and VGA/DVI connection This compact 1 U console in a 2-colour design was developed for reliable and space-saving on-site server administration. Despite its small dimensions, the unit integrates a full keyboard with numerical keypad and touchpad. To prevent heat build-up when folded and closed, the backlight is switched off automatically. The result is a standby power consumption of less than 1 W. Installation is also child’s play: Following separate mounting of the 19½ frame, the monitor/keyboard unit itself can simply be slotted in and locked....

Open the catalog to page 2
