Connector gland

Connector gland

Product catalog summary

Overview: The Rittal connector gland is a flexible gland system designed for the entry of pre-assembled cables. It allows for simple cable entry and replacement, offering a high degree of protection and flexibility in cable management.

Specifications:

Accommodates cable diameters from 4 to 16 mm.
Sealing modules are vibration-resistant and remain attached to cables even during transport.
Protection category: IP 64 to EN 60 529; compliant with NEMA 12.
Material: Frame made of Polyamide, Flat seal made of CR.

Features:

Simple installation for up to 10 pre-assembled cables.
Sealing frame remains in place during service and expansion.
Only four sealing modules are necessary for various cable diameters, enhancing flexibility and reducing component stocking needs.

Benefits:

Faster installation and low installation costs.
Individual cables can be added or replaced without dismantling the sealing frame.
Minimized risk of inadvertent swapping or lost parts.

Accessories:

Module plates for TS divider panels available.
Sealing modules available in sizes 20 x 20 mm and 40 x 40 mm for different diameter ranges.

Contact Information: Rittal GmbH & Co. KG, Postfach 1662, D-35726 Herborn, Telephone: +49(0)2772 505-0, Email: [email protected], Website: www.rittal.com

Catalog excerpts

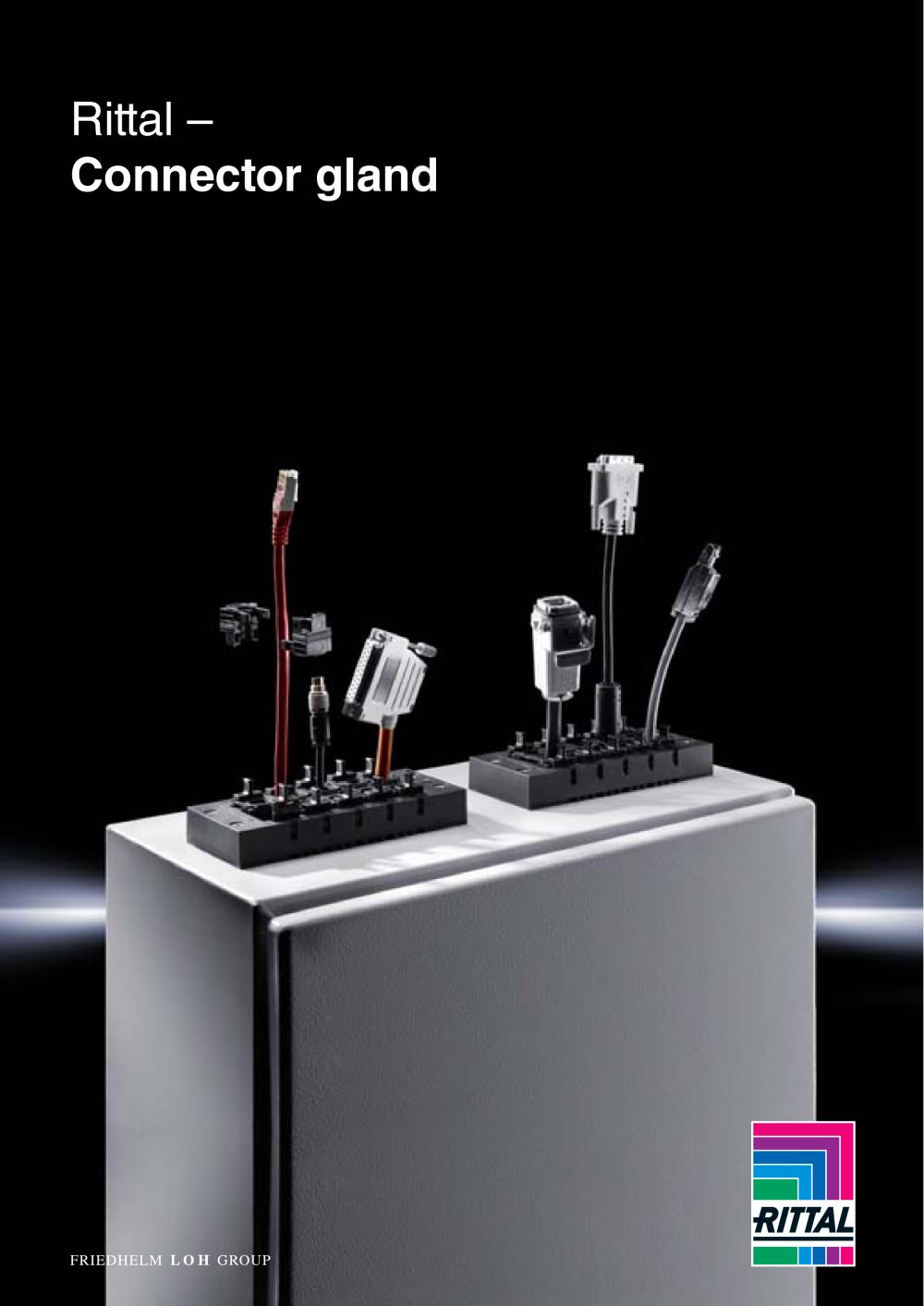

Rittal – Connector gland

Open the catalog to page 1

Rittal – Connector gland Less is more – systematic cable entry

Open the catalog to page 2

Rittal – Connector gland Flexible gland system for pre-assembled cables œ Simple cable entry for up to 10 preassembled cables. œ To replace cables, it is generally sufficient to release a single sealing module; in case of larger connectors, simply remove further modules. œ The sealing frame remains in place on the enclosure during service and in case of expansion. Only 4 sealing modules necessary for cable diameters 4 – 16 mm œ Greater flexibility and planning reliability – even if the exact cable diameter is not yet defined. œ Minimised expenditure for component stocking. œ Simple and convenient...

Open the catalog to page 3

Connector gland The Rittal connector gland proves that sometimes “less is more”: significantly faster installation, a flexible sealing system for different cable diameters and simple cable entry with pre-assembled cables. Low installation costs, a high degree of protection and flexible cable management – added value guaranteed with the latest generation of cable entry solutions from Rittal. Rittal GmbH & Co. KG Postfach 1662 D-35726 Herborn Telephone: +49(0)2772 505-0 Telefax: +49(0)2772 505-2319 eMail: [email protected] www.rittal.com 04/2010 Sealing frame For pre-assembled cables with connectors....
