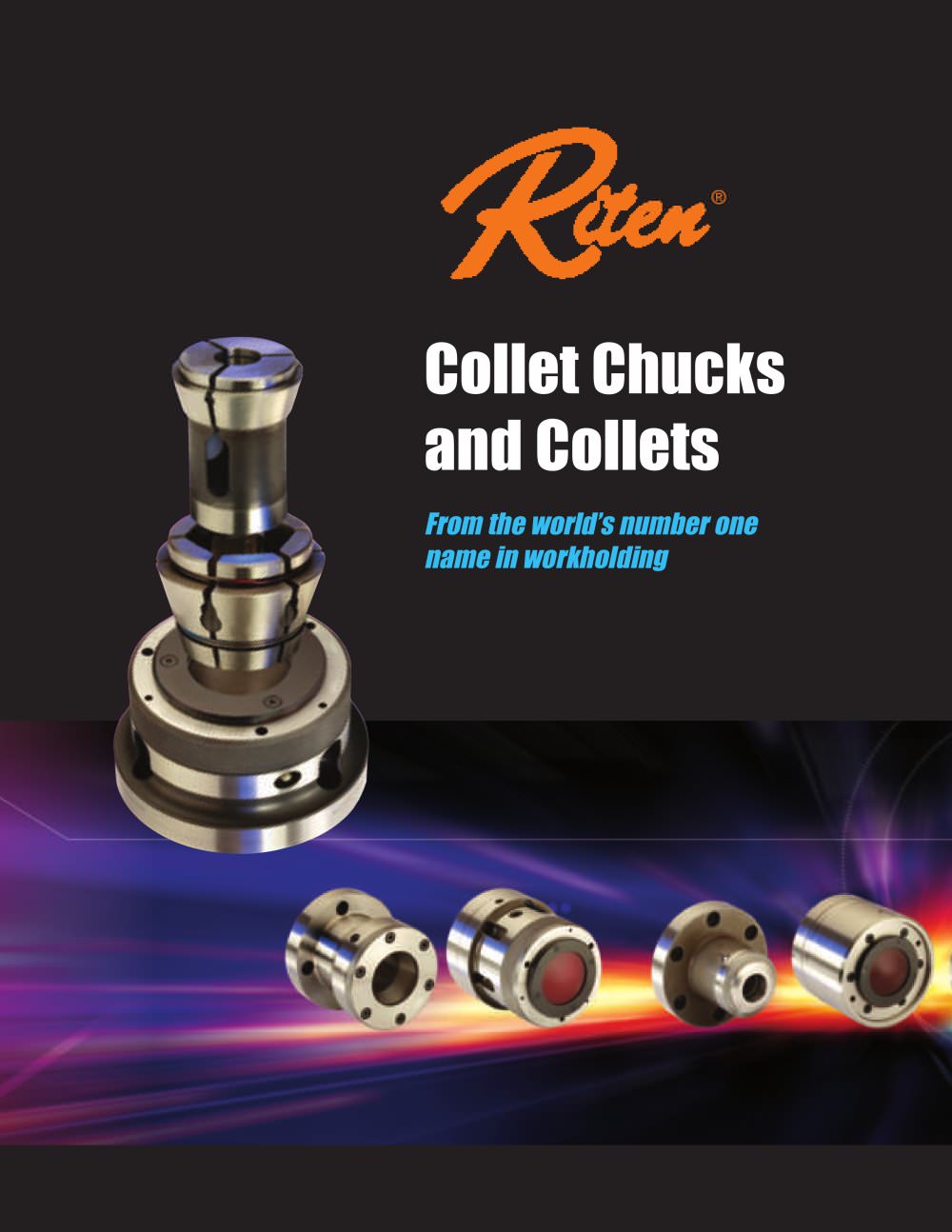

Collet Chuck Catalog
28Pages

From the worldΒs number onename in workholding >

For accurate, high-volume turning of bar stock or other parts under3-1/8Δ in diameter, your best bet is a collet chuck. Why? > Consistent centering. Collet chucks grip the workpiece aroundthe entire circumference, with no slippage when the stock is re- gripped, and less risk of deformation to thin-walled workpieces. > Better tool clearance. Short or thin parts can be machined closer to the chuck face for better accuracy and less distortion. > Dead length chuck withSetrite adjustment Higher speeds. Compact, lightweight collet chucks have agreater tolerance for high centrifugal forces, hold...

Riten size-for-size collets (5C, 16C and R8) are designed for excellent accuracy and repeatability, superior gripping power, and extendedservice life. To achieve this, we load the collet with a coil at the base of the slots, heat the collet to a glowing red, insert the spreader into the slots, and push down on the collet face. After cooling for one to two minutes, the spreader is removed and the collet cools complete- ly. This process gives our collets a spring of .010Δ and drastically improves the life of the collet. Few other manufacturers go to this length to ensure a quality...

Page Page SetriteήSet Length . . . . . . . . . . . . . . . . 4 R8 Collets . . . . . . . . . . . . . . . . . . . . 12 5C, 16C Collet Chucks > Diameters up to 27/32 and 20mm ԕ Setrite feature allows accuracy adjustment to virtual zeroΕ Accepts 5C and 16C collets Type Aand DIN mounts 5C Collets (inch) . . . . . . . . . . . . . . . .13 5C Collets (Metric) . . . . . . . . . . . . .14 Set Length Standard5C, 16C Collet Chucks > Diameters up to 1-1/8Ք and 27mm . . . . . . . . . . . . . . 5 > Short overall length ideal for mainor sub-spindle workՕ Accepts 5C and 16C collets Type Aand DIN mounts 16C...

΢֠ > Ideal for bar work with minimum working envelope (not suitable for gripping short components for secondary operation). ■ > Large capacity: up to 2.59 round Ԣ֠ > Accuracy guaranteed to .0002 TIR from rear mounting register and working collet taper Ԣ֠ > Repeatability is .0002 TIR Ԣ֠ > Hardened and ground main body and cone ■ > Speeds up to 6000 rpm B JCDEFLA ■ > Also available in DIN 55026 mountings DrawtubeAdapterMultiboreCollet Dimensions shown in in/mm Chuck Model No.MountStd. Multibore ColletCapacity, RoundCapacity, HexCapacity, SquareABCD*EFJMaxmimum RPMDrawbar Force (lb/ft)Clamping...

΢֠ > Quick change bayonet cap design saves setup time ■ > Uses DIN type Multibore collets for a powerful parallel gripover a wide diameter range. When gripping short compo-nents,or where marking of a finished diameter is to be avoided, use B type spring collets or a fixed bore size collet. ■ > Large capacity: up to 2.36 round Ԣ֠ > Accuracy guaranteed to .0002 TIR from rear mounting register and working collet taper Ԣ֠ > Repeatability is .0002 TIR Ԣ֠ > Hardened and ground main body and cone ■ > Speeds up to 6000 rpm ■ > Also available in DIN 55026 mountings DCA B B typeSpring...

΢֠ > Quick change bayonet cap design saves setup time ■ > Uses DIN type Multibore collets for a powerful parallel gripover a wide diameter range. When gripping short compnents, or where marking of a finished diameter is to be avoided, use B type spring collets or a fixed bore size collet. ■ > Large capacity: up to 2.36 round Ԣ֠ > Accuracy guaranteed to .0002 TIR from rear mounting register and working collet taper Ԣ֠ > Repeatability is .0002 TIR Ԣ֠ > Hardened and ground main body and cone ■ > Speeds up to 6000 rpm ■ > Call for availability of Atype spindle mountings. ACBD DCBA B type Spring...

LIMITATION OF DAMAGES DISCLAIMER OF LIABILITY BUYER֒S SOLE AND EXCLUSIVE REMEDYAGAINSTRITEN FOR BREACHOF WARRANTYSHALLBE LIMITED TO REPAIR OR REPLACEMENTOF ANYNONCONFORMING PRODUCTS, PURSUANTTO THE ABOVE STATE-MENTOF WARRANTY.RITEN SHALLNOTBE LIABLE TO BUYER OR ANYOTHER PERSON FORANYSPECIAL, INDIRECT, INCIDENTAL, CONSEQUENTIALOR EXEMPLARY LOSSES, DAMAGES OR EXPENSES, DIRECTLYOR INDIRECTLYARISING OUTOF THE SALE, HANDLING OR USE OF THE PRODUCTS OR FROM ANYOTHER CAUSE RELATING THERETO. RITENS LIABILITYWHETHER BASED ON CONTRACT, WARRANTYOR TORT(INCLUDING BUTNOTLIM- ITED TO NEGLIGENCE AND...
