37/57 High Pressure Series

Product catalog summary

Overview: The document provides technical specifications and features of the Rineer Code 62 High Performance Motor, focusing on the 37 and 57 series. It includes details on motor configurations, performance characteristics, and installation guidelines.

Specifications: The Code 62 motor features ports with continuous pressure up to 4500 PSI and intermittent pressure up to 5000 PSI. It supports speeds up to 1100 RPM and outputs up to 300 horsepower. The motor is available in single stack, double stack, and 4-port configurations with varying weights.

Model Codes: The document lists model codes for different configurations, including displacement options ranging from 12 in³ to 111 in³ for the 37 series and 24 in³ to 74 in³ for the 57 series. It also details seal and bearing package selections.

Technical Features: The Rineer motor utilizes a patented vane crossing vane design for improved efficiency. It offers flat torque curves with starting and stall torque at 90-94% of theoretical torque. The motor supports two-speed operation with external valving and has high thrust and radial load capacities.

Installation and Maintenance: The motor requires a minimum filtration of 25 microns and operates best with premium grade fluids. It is designed for unrestricted mounting positions and includes guidelines for case drain circulation and temperature management.

Additional Information: The document references other available Rineer motors and provides contact information for further inquiries.

Catalog excerpts

All values are theoreticaland are affected by oil viscosity and temperature. Larger Diameter Output Shafts 31 = Splined Shaft40 = Double Splined 012 = 12 in > 3 (197cc)/rev.016 = 16 in 024 = 24 in > 3 (393cc)/rev.028 = 28 in > 3 (262cc)/rev.020 = 20 in > 3 (459cc)/rev.032 = 32 in > 3 (328cc)/rev.026 = 26 in > 3 (525cc)/rev.036 = 36 in > 3 (426cc)/rev.032 = 32 in > 3 (590cc)/rev.040 = 40 in > 3 3 (910cc)/rev.096 = 96 in > 3 (1819cc)/rev. Seal Package Selection > .48 > HOLE B1 8.35 .75 > 2.50 4.81 > EFFECTIVE SPLINE LG. 6.500 8.63 > 6.498 7.91 5.00 B2 A2 A1 > 2.375 2.370 8.13 6.36 > STD. 1/2" O-RING BOSS CASE DRAIN 1.50 > SAE-FLAT ROOT 6.36 > (2) PLACES 1.07 > SIDE FIT 18T., 8/16 7.91 13.95 > DP., 30 INVOLUTE SAE 4-BOLT FLANGE PORT 4.44 > SPLINE - CLASS 7 .812 DIA. (4) HOLES CODE 62 HIGH PRESSURE 1-1/4" (4) PLACES

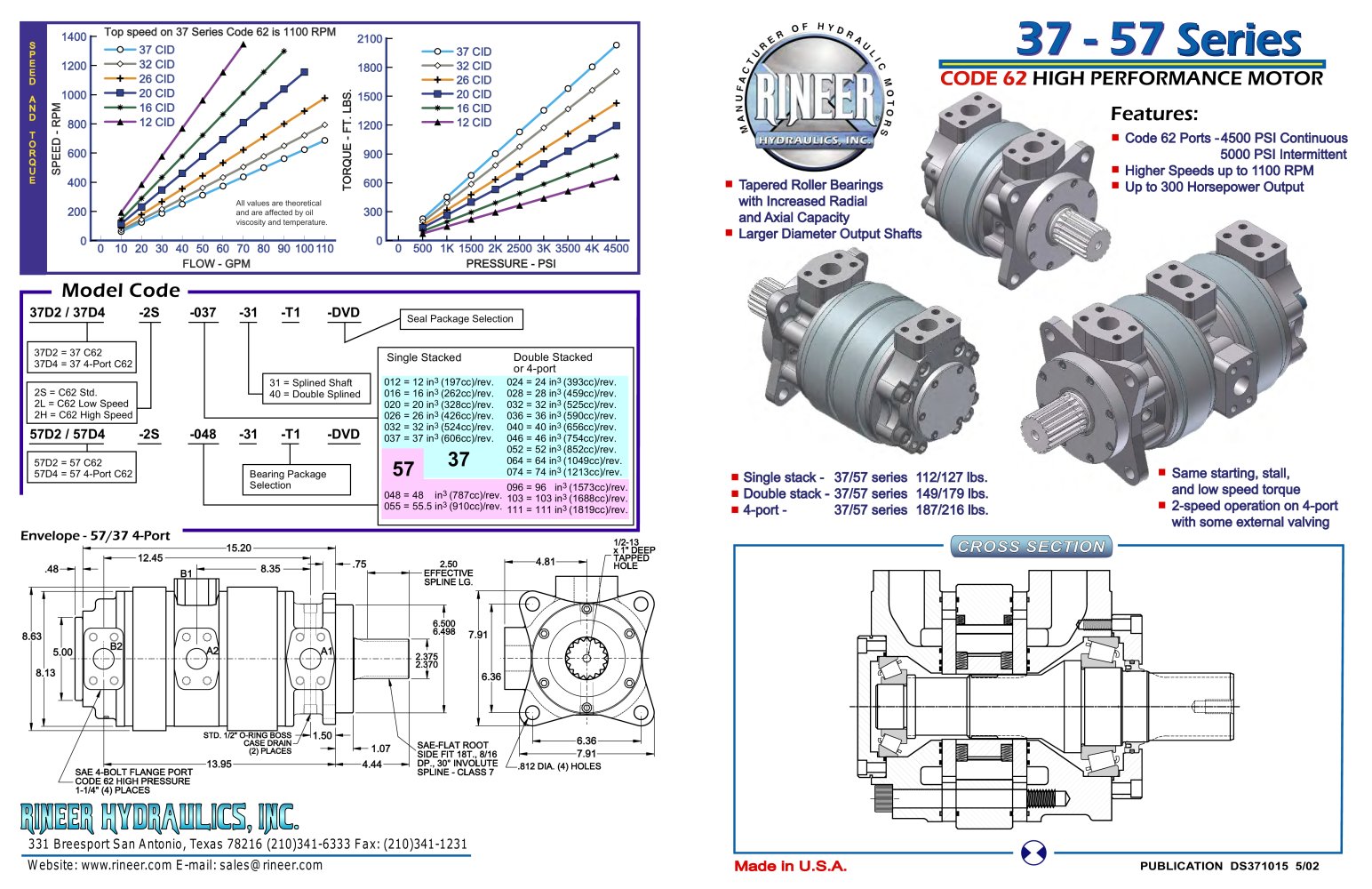

Open the catalog to page 1

37/57 High Pressure Series

37/57 High Pressure Series
