Specifications:

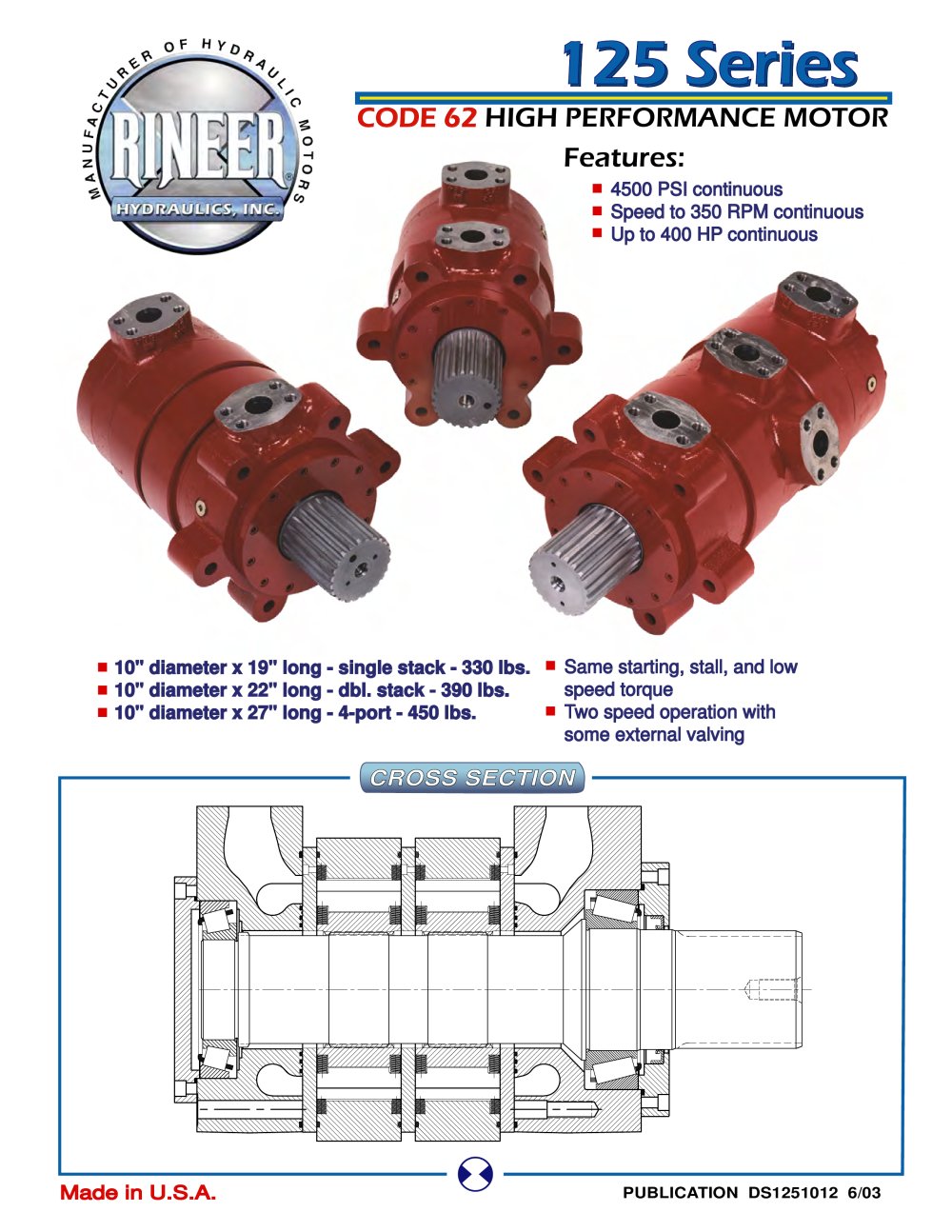

The Code 62 High Performance Motor is designed for continuous operation at 4500 PSI and speeds up to 350 RPM, delivering up to 400 HP. It is available in various configurations: single stack (10" diameter x 19" long, 330 lbs), double stack (10" diameter x 22" long, 390 lbs), and 4-port (10" diameter x 27" long, 450 lbs). The motor features a two-speed operation with external valving and maintains consistent starting, stall, and low-speed torque.

Technical Information:
The motor utilizes a patented vane crossing vane design for enhanced volumetric and mechanical efficiencies. It offers flat torque curves with starting and stall torque at 90-94% of theoretical torque. The 125 Series includes six stator cavities and 16 rotor vanes, resulting in 96 power strokes per revolution. The 4-ported motor configuration allows for displacements from 120 in³ to 250 in³, with options for individual or parallel operation.

Performance and Design:
The motor supports thrust loads up to 13,900 lbs dynamic and 147,000 lbs static, with radial loading up to 20,000 lbs dynamic and 125,000 lbs static. It is equipped with Buna N seals as standard, with Viton seals available as an option. The motor can rotate in either direction and is designed for unrestricted mounting positions.

Operational Guidelines:
For optimal performance, use premium grade fluids with anti-wear additives, maintaining viscosity between 100 and 200 SUS at operating temperature. Fluid temperature should not exceed 180°F. The motor requires a 25-micron minimum filtration and is designed for external case drain with a recommended pressure of 35 PSI or less.

Additional Features:
The motor can be configured for two-speed operation using external valving, with specific circuit diagrams provided for 4-port configurations. It is available in various displacements, with model codes indicating specific configurations and options.
