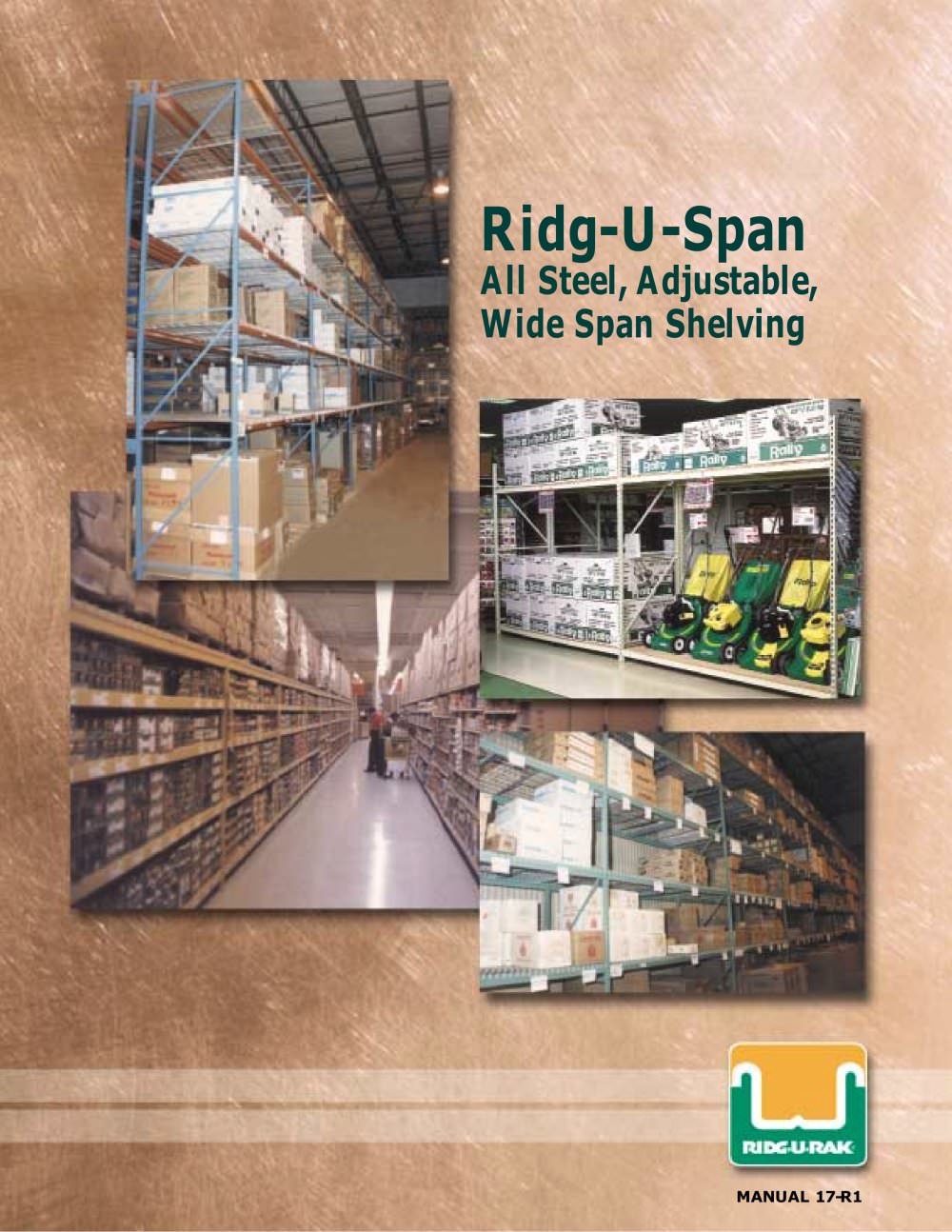

wide span shelving

Product catalog summary

Overview: The Ridg-U-Span Wide Span Shelving system is a versatile, all-steel storage solution designed for bulk material storage. It is compatible with various competitive designs and features a modular design for future expansion. The system is easy to assemble with boltless connections and offers optional locking devices for enhanced safety.

Specifications: The shelving system consists of four main components: upright frames, beams, supports, and shelf material. Upright frames are made from 1-3/4” square columns with welded 'C' channel supports, available in heights from 72” to 240”. Beams are constructed from steel step-beams with welded, three-lug hook plates, accommodating various shelf materials like plywood and wire. The system allows vertical adjustment on 2” centers.

Frame and Beam Capacities: The capacity of the frames varies based on vertical beam spacing, with a maximum capacity of 15,400 lbs for 24” spacing. Beams are available in different lengths and capacities, with specific configurations for standard and inverted lateral supports.

Accessories: The system offers a range of accessories, including back-to-back ties, bridge beams, adjustable load stops, and various decking materials like plywood and steel. Optional features include locking clips and bolt connections for added security.

Customization: Ridg-U-Rak provides customized solutions to meet specific storage needs, offering additional accessories like frame protectors and caster mounts. The company encourages presenting custom ideas for tailored storage solutions.

Contact Information: Ridg-U-Rak Inc., 120 S. Lake Street, North East, PA 16428. Phone: 814-725-8751, Fax: 814-725-5659, Website: www.ridgurak.com

Catalog excerpts

Upright Frames > All steel constructionwith welded ֓C channel supportsԖ available in a wide variety of sizes and capacities. Ridg-U-Span wide-span shelving isan efficient, cost-effective means of storing bulk material.When assembled, Ridg-U-Spansfour basic components - upright frames, beams, supports and shelf material - create a rigid and stable hand-loaded, bulk storage system. Optional locking devices provide additional security from accidental dislodgement of beams from upright columns.Ridg-U-SpanҒs modular designallows a single unit to stand alone or future expansion by use of a common upright...

Open the catalog to page 2

Beam LengthCenterline-Beam Length + 1 3/4"

Open the catalog to page 5

Smooth Steel Deck Inverted Lateral Support R R RIDG-U-RAK, INC. NORTH EAST, PA 16428 Decking Materialplywood, particle board,wire, corrugated, steel and custom designs Frame-to-frame spacers Frame-to-wall spacers Locking clip֖Optional Bolt connectionsOptional Inverted beam arrangement for smooth steel decks >

Open the catalog to page 6

wide span shelving

wide span shelving
