Sampling valves PA/F, PA/S

Sampling valves PA/F, PA/S
6Pages

Catalog excerpts

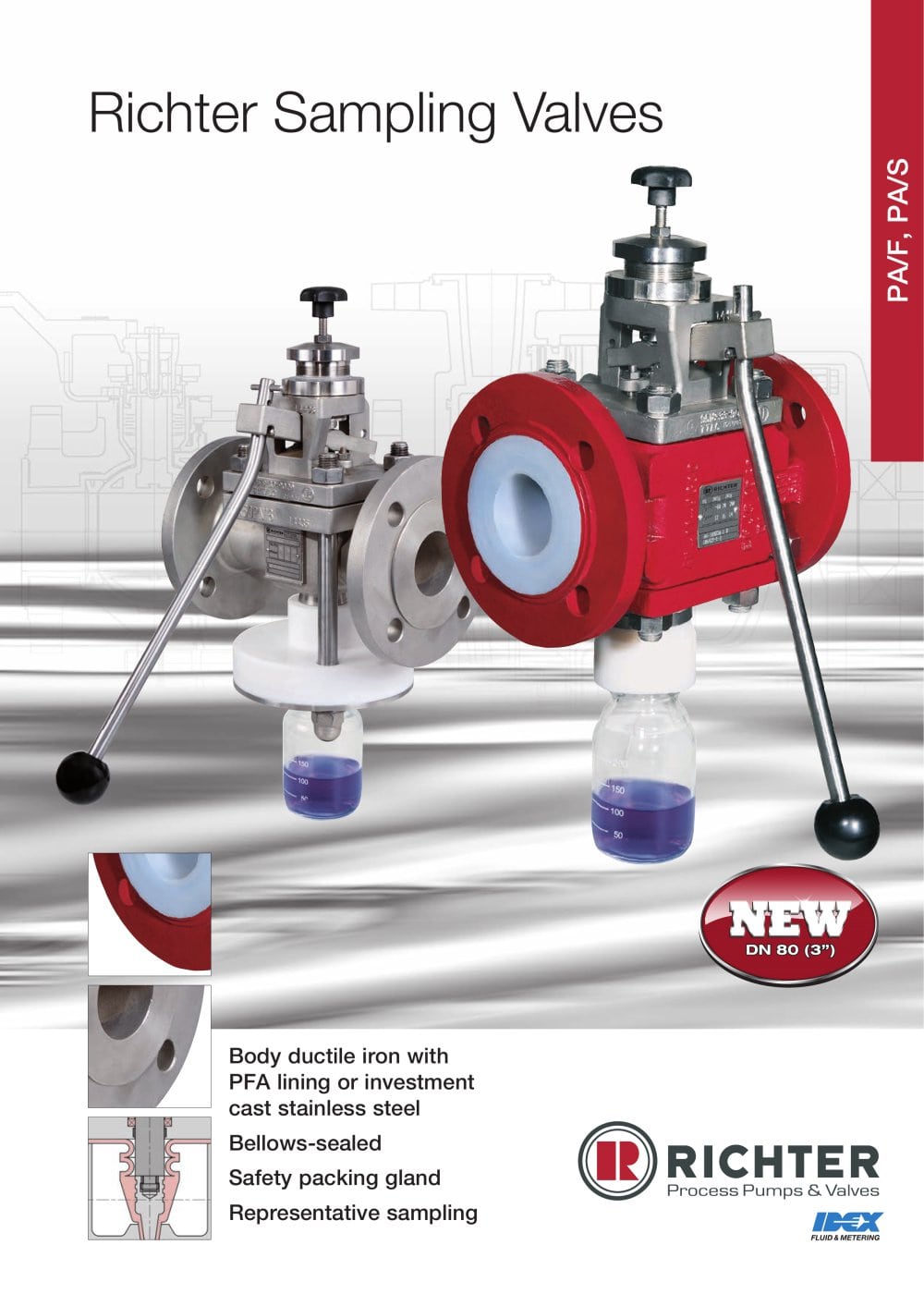

Richter Sampling Valves Body ductile iron with PFA lining or investment cast stainless steel Bellows-sealed Safety packing gland Representative sampling

Open the catalog to page 1

® Travel stop, adjustable from outside • finely metered sampling • closing force can be increased at any time if the sealing action in the seat/ plug area is insufficient (e.g. if sealing surfaces damaged) ® Safety spring return by means of a central spring suitable for all pressure ranges (“dead man’s handle”) © Safety packing gland • acts independently • re-adjustable from outside © a: Lining virgin PFA • wall thickness 3-3.5 mm • high permeation resistance • vacuum-proof anchored b: Alternatively stainless steel 1.4435 (316 L) investment cast body without lining © Glandless due to...

Open the catalog to page 2

Sampling valve PA/F with thick-walled PFA lining 7 Sampling valve PA/S of stainless steel design (without lining) 3

Open the catalog to page 3

Richter sampling valves Components and materials Item Designation Material 100 Body PA/F: ductile cast iron EN-JS 1049/ ASTM A395 with PFA lining PA/S: cast stainl. steel 1.4435 (316 L) investm. 104 Transition flange stainless steel (only DN 40+80, not shown) 106 Cover stainless steel 203 Lever stainless steel 205 Seat PA/F: ductile cast iron EN-JS 1049/ ASTM A395 with PFA lining DN 40+80: stainless steel PA/S: cast stainl. steel 1.4435 (316 L) investm. 206 Bellows w. plug modified pure PTFE 226 Bottle connection modified pure PTFE 302/1 Guide ring PTFE carbon 400/1 O-ring, not wetted FKM...

Open the catalog to page 4

Options Sampling valves with stainless steel protective cabinet Sampling valves with actuator Septum bottle NEW: adapter for Needle and adapter high-purity media made of stainless steel With this new option sampling in a septum bottle is even possible with the stainless steel series PA/S. The protective cabinets are produced in standard sizes and with various accessories, also custom-made. Fig.: Option with spring-loaded bottle holder. Pneumatic and electric actuators. Makes as per customers choice. For design details, see page 6 Body heating Handwheel instead Flat plug for of...

Open the catalog to page 5

Plug and adapter versions Special design for highly viscous media or applications with low operating pressure The standard version of the PA valve with a tapered plug has a travel of 3 mm, producing an angular gap of 0.5 mm over a length of 20 mm. With a travel of 3 mm the special flat plug produces a full cross section of the outlet opening of 10 mm. • higher viscous media and The suitable valve plug is selected according to the viscosity/operating pressure diagram (see page 4). • media with a low operating pressure Richter should be consulted in case of different application parameters....

Open the catalog to page 6
