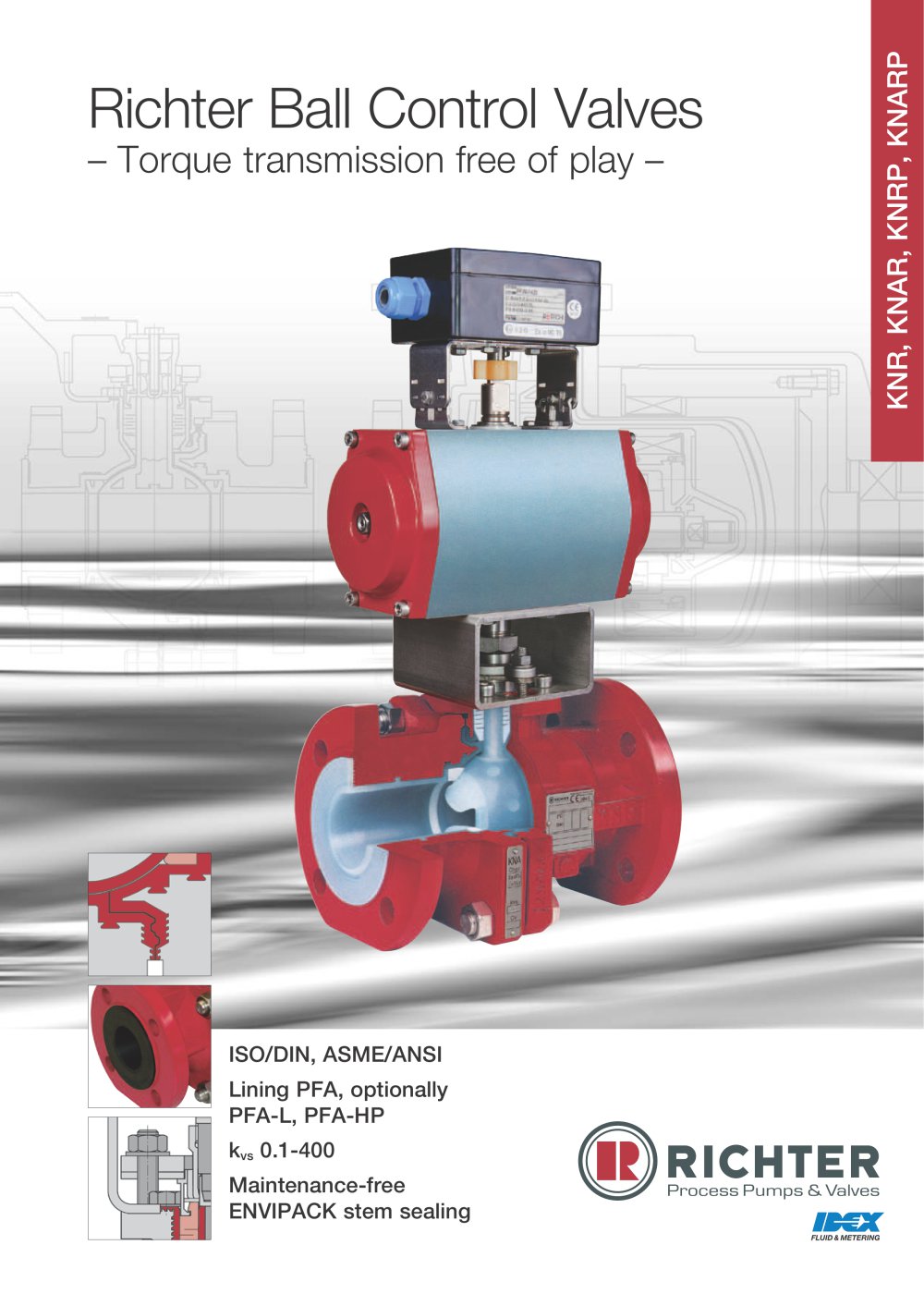

KNR, KNAR, KNRP, KNARP ISO/DIN, ASME/ANSI W Lining PFA, optionally PFA-L, PFA-HP kvs 0.1-400 Maintenance-free ENVIPACK stem sealing (fitjRICHTER Process Pumps &. Valves FLUID & METERING

Open the catalog to page 1

Heavy-duty ball control valves with ENVIPACK stem seal With the series KNR, KNRP (ISO/DIN) and KNAR, KNARP (ASME/ANSI), compact control valves with high flow control accuracy are available to plant operators. In many applications they are a very economical alternative to bellows-type sliding stem valves and rotary plug valves. The ENVIPACK stem sealing, valve body and seat rings are i dentical to those of the shut-off ball valves KN and KNA, as are the selection of material and the pressure/temperature range. Advantages: minimum stocks of spare parts, subsequent conversion from a shut-off...

Open the catalog to page 2

Particularly low-cavity f Transmission of torque free of play with sleeve nut (6a) and setscrew (6b) g niversal ISO 5211 U connection h External corrosion protection Epoxy coating. Packing gland, lever, bolts/nuts made of stainless steel. Pressure/temperature range Temperature (°F) Vacuum (mbar) V-control ball • PFA-lined • igh quality control h performance • free of play Gauge pressure (psig) KNAR, KNARP Vacuum (psia) Body EN-JS 1049 (0.7043)/PFA: -60 °C (-75 °F) to +200 °C (400 °F); max. 16 bar (235 psi) as per AD 2000 Body ASTM A395/PFA: -30 °C (-20 °F) to +200 °C (400 °F); max. 17.2 bar...

Open the catalog to page 3

KNR, KNAR, KNRP, KNARP Components and materials Item DN 150 (6“) and 200 (8“) manual actuation: At Ap > approx. 2 bar (29 psi) *** Dimension HL not shown: length hand lever from centre of ball/stem unit a worm gear is recommended instead of the hand lever. Details on request. (part 201) On request: drilled to JIS 10K, ISO 7005-2 **** Dimension H not shown: height from centre

Open the catalog to page 4

KNR, KNAR, KNRP, KNARP All operating torques: test medium water 20 °C, seat rings pure PTFE. The operating and breakaway torques may differ depending on the medium (dry gases, crystallising media, oil contents etc.).

Open the catalog to page 5

KNR, KNAR, KNRP, KNARP Richter’s speciality: customised problem solutions Ask Richter when you are looking for a solution to your problem! In addition to the selection of common special designs presented here, we also offer many other specialities. Stainless steel body with PFA lining ASME/ANSI face-to-face 1“-2“ Standard with the manual actuation version: lockable stainless steel hand lever Linings antistatic, FDA-compliant PFA-lined sliding stem control valves • kv 0.05-155 • ellows sealed b • ingle-piece valve body s • 60 to +200 °C (-75 to +400 °F) • ee separate publications s RSS...

Open the catalog to page 6
