New extra-thin XT35 Cross cutting disc

New extra-thin XT35 Cross cutting disc

New extra-thin XT35 Cross cutting disc

Product catalog summary
Introduction
The document introduces the XT35 Cross, a new extra-thin combination cutting and grinding disc by Rhodius Schleifwerkzeuge GmbH & Co. KG. This disc is notable for its thickness of only 1.9 millimeters, making it the thinnest available for both cutting and face grinding.

Specifications
The XT35 Cross is approved according to EN 12413 standards, ensuring safety and efficiency. It meets the lateral load limits of 290 N, a standard previously only met by thicker grinding wheels.

Features and Benefits
The disc offers several advantages, including:
  • Tested safety and high efficiency.
  • Low burr development and minimal flying sparks.
  • Cool cutting with low odor development.
  • Iron and sulfur-free, suitable for various materials.
Its innovative manufacturing process and additional reinforcement allow for both cutting and light grinding tasks without compromising user safety.

Applications
The XT35 Cross is suitable for processing a wide range of materials, including:
  • Stainless and acidproof steels.
  • Hardened, high alloy, and high tensile steels.
  • Galvanized parts and hardox.
It is applicable in various fields such as sanitary trade, tank and car-body construction, structural engineering, and ship-building.

Technical Data
The disc is available in two dimensions:
  • 115 x 1.9 x 22.23 mm
  • 125 x 1.9 x 22.23 mm

Conclusion
The XT35 Cross offers significant cost savings by eliminating the need for frequent tool changes, thus accelerating work and reducing tool costs. It is a versatile tool that can handle a variety of materials and applications efficiently.
See more

Catalog excerpts

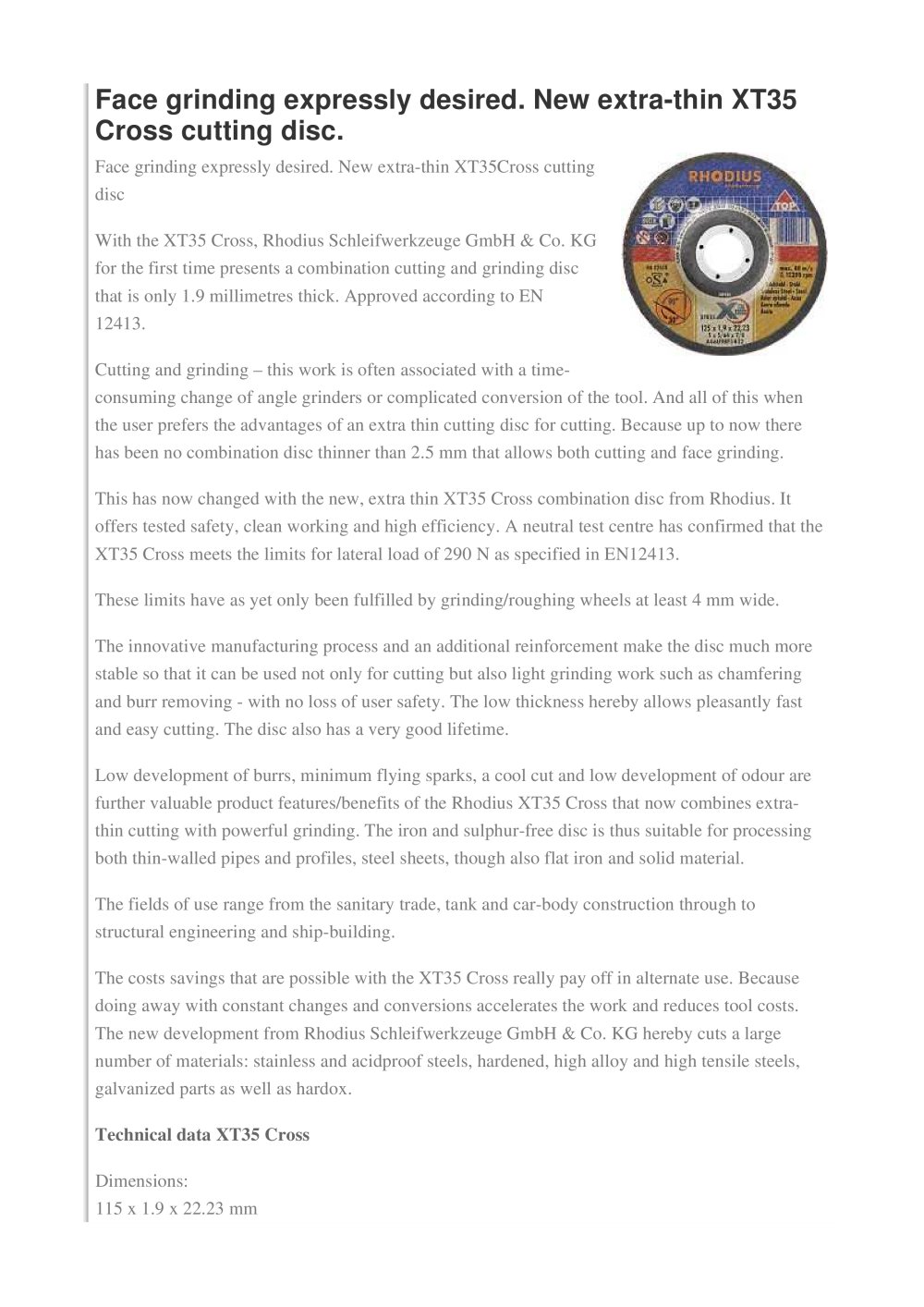

New extra-thin XT35 Cross cutting disc-1

Face grinding expressly desired. New extra-thin XT35Cross cutting disc With the XT35 Cross, Rhodius Schleifwerkzeuge GmbH & Co. KG for the first time presents a combination cutting and grinding disc that is only 1.9 millimetres thick. Approved according to EN 12413. Cutting and grinding this work is often associated with a time-consuming change of angle grinders or complicated conversion of the tool. And all of this when the user prefers the advantages of an extra thin cutting disc for cutting. Because up to now there has been no combination disc thinner than 2.5 mm that allows both cutting and face grinding. This has now changed with the new, extra thin XT35 Cross combination disc from Rhodius. It offers tested safety, clean working and high efficiency. A neutral test centre has confirmed that the XT35 Cross meets the limits for lateral load of 290 N as specified in EN12413. These limits have as yet only been fulfilled by grinding/roughing wheels at least 4 mm wide. The innovative manufacturing process and an additional reinforcement make the disc much more stable so that it can be used not only for cutting but also light grinding work such as chamfering and burr removing - with no loss of user safety. The low thickness hereby allows pleasantly fast and easy cutting. The disc also has a very good lifetime. Low development of burrs, minimum flying sparks, a cool cut and low development of odour are further valuable product features/benefits of the Rhodius XT35 Cross that now combines extra-thin cutting with powerful grinding. The iron and sulphur-free disc is thus suitable for processing both thin-walled pipes and profiles, steel sheets, though also flat iron and solid material. The fields of use range from the sanitary trade, tank and car-body construction through to structural engineering and ship-building. The costs savings that are possible with the XT35 Cross really pay off in alternate use. Because doing away with constant changes and conversions accelerates the work and reduces tool costs. The new development from Rhodius Schleifwerkzeuge GmbH & Co. KG hereby cuts a large number of materials: stainless and acidproof steels, hardened, high alloy and high tensile steels, galvanized parts as well as hardox. Technical data XT35 Cross Dimensions: 115 x 1.9 x 22.23 mm >

 Open the catalog to page 1
New extra-thin XT35 Cross cutting disc-2

125 x 1.9 x 22.23 mm Material: stainless and acidproof steels, hardened, high alloy and high tensile steels, galvanized parts, hardox Applications: thin-walled pipes and profiles, steel sheets, flat iron, solid material >

 Open the catalog to page 2
