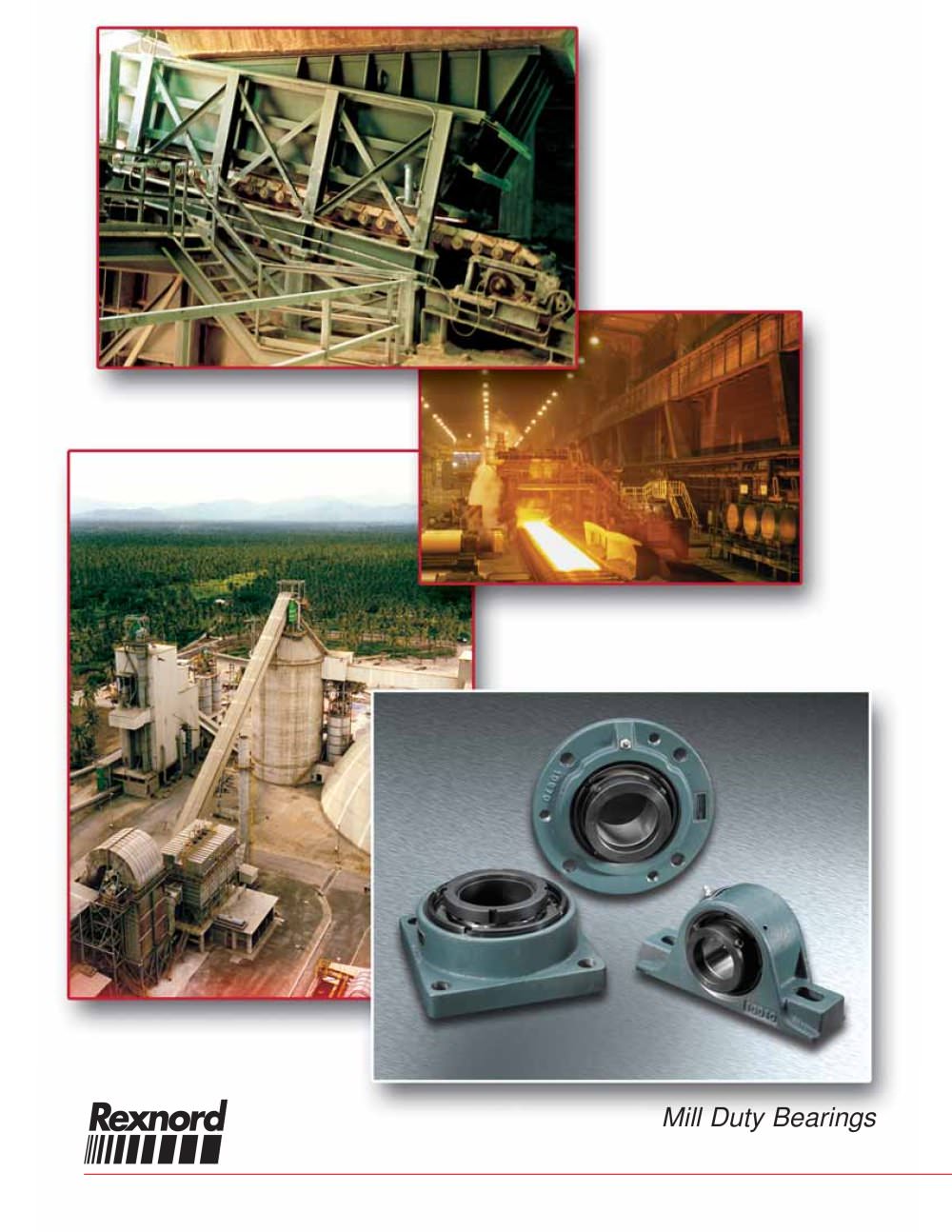

Rexnord® Mill Duty Bearing Catalog

Rexnord® Mill Duty Bearing Catalog

Product catalog summary

Specifications:
The document details specifications for Mill Duty Bearings, including dimensions for RSSN Adapter Mount bearings. It provides measurements in inches for two-bolt and four-bolt housings, along with weight and bolt size information.

Mounting Procedures:
Procedures for mounting eccentric lock bearings (1000 series) and adapter bearings (8000 series) are outlined. Key steps include inspecting the shaft, positioning bearings, aligning and securing housings, and ensuring proper torque on setscrews. Instructions are specific for both fixed and floating bearings.

General Installation Comments:
Guidelines suggest pre-lubrication with NLGI grade 2 lithium complex grease, positioning housings for grease fitting accessibility, and handling thrust loads carefully. It advises against direct hammer blows and mixing different types of grease.

Disassembly and Re-assembly:
Instructions for disassembly include removing snap rings and seals, and using a press to remove the bearing from the housing. Re-assembly involves cleaning the housing, installing the bearing, and ensuring proper torque on set screws.

Lubrication Instructions:
Bearings are prelubricated with Mobil Mobilith AW2 grease. Guidelines for relubrication frequency are provided based on service type, with a warning against mixing incompatible greases.

Replacement and Maintenance Instructions:
The document emphasizes correct bearing selection, installation, and maintenance for reliability. It includes theoretical bearing life calculations and replacement kit information for different series.

Customer Service:
Contact information for Rexnord's worldwide customer service centers is provided, highlighting their commitment to quality and service.
