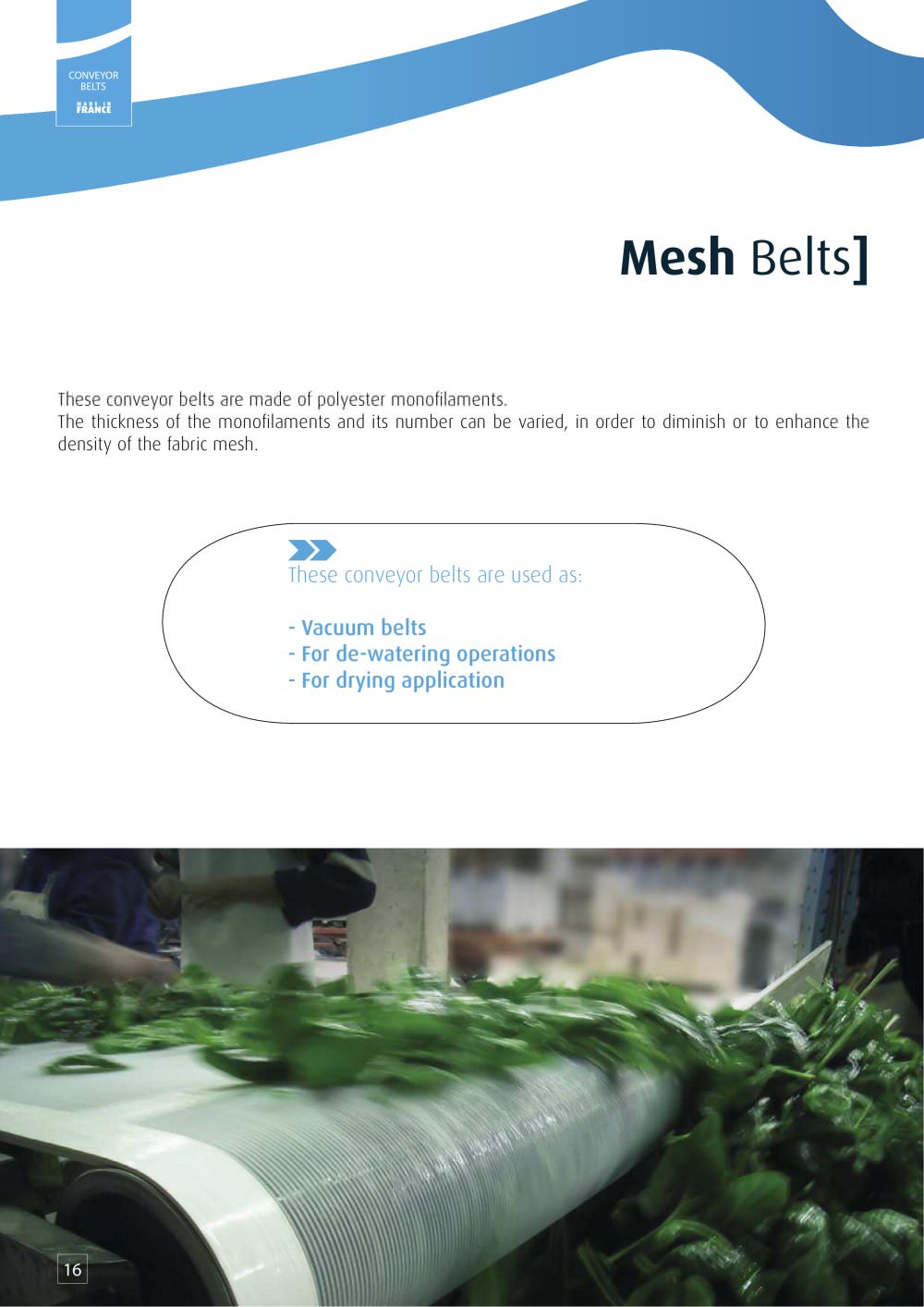

Mesh belts

Product catalog summary

Overview: The document provides technical specifications and applications for polyester monofilament conveyor belts, highlighting their versatility and adaptability for various industrial uses.

Specifications:

Material: Polyester monofilaments.
Monofilament Diameter: Ranges from 0.8 to 1.2 mm.
Fabric Density: Adjustable by varying the thickness and number of monofilaments.
Tear Strength: Up to 180 daN/cm.
Standard Width: Up to 1500 mm.
Minimum Pulley Diameter: 100 mm (excluding additional equipment).

Applications:

Vacuum belts.
De-watering operations.
Drying applications.
Food processing.

Additional Features:

Available with various equipment options such as compartment sidewalls, tracking guides, different flights, and fingers.
Can be made endless using fasteners or a special reinforced joint.

Contact Information: For special developments or additional information, contact the provider.
