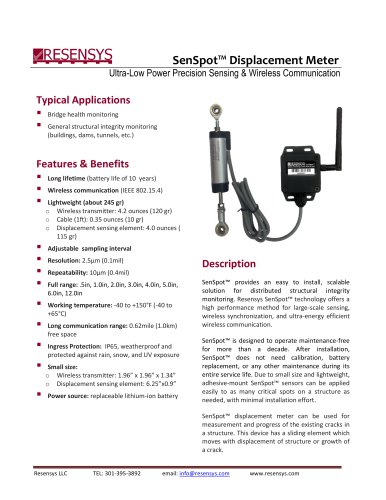

Enhanced Displacement IoT Sensor Ultra-Low Power Precision Sensing & Wireless Communication Typical Applications Bridge health monitoring Structural integrity monitoring (Airplanes, Buildings, Cranes, Dams, Tunnels, Platforms, Machinery, etc.) Monitoring of bridge bearing and expansion joints Monitoring width of cracks on structures Monitoring timber structures and bridges Long lifetime: Solar powered and almost maintenance free A Stand-alone IoT Device: all-in-one device capable of sensing, collecting and uploading data to the remote server Easy mounting: Flange mount or adhesive tape Ingress Protection: IP68, weatherproof, and protection from rain, snow, and UV exposure Maintenance free: Self-powered by a solar panel. No battery replacement, calibration or post-installation maintenance is required

Open the catalog to page 1

from other third-party manufacturers such as OMEGA or Vishay. The transceiver and the solar panel can be easily mounted with either flanges or adhesive, both attached to the outer box. The device comes with a high-capacity lithium-ion battery charged by a solar panel. It does not require battery replacement so that once installed, it is almost maintenance free. The whole product meets IP68 standard (completely weatherproof). As a result, it is an excellent choice for crack-development monitoring applications that require the sensors to be installed some outdoor places which are often hard...

Open the catalog to page 2

Installation Wireless transceiver box comes with mounting flanges. It can be installed either with screws and anchors through the flange holes or with VHB adhesive tape (for steel and smooth surfaces). Wireless Transceiver Dimensions (in inch) Figure 1: Wireless transceiver dimensions for enhanced displacement IoT sensor. All dimensions are in inch. Email: info@resensys.com

Open the catalog to page 3

Displacement sensing element All dimensions are in mm [inch]. Model Dimension ”A” (mm)[inch] Figure 2: Sensing element dimensions of enhanced displacement IoT sensor. All dimensions are in mm [inch]. Ordering Information Part Number 2 Channels. Range 2” (50 mm) 2 Channels. Range 3” (75 mm) 2 Channels. Range 4” (100 mm) 2 Channels. Range 6” (150 mm) 2 Channels. Range 12” (300 mm)
