Stabilized 633nm Laser

Stabilized 633nm Laser

Product catalog summary
Overview: The document provides detailed specifications for REO's Frequency and Intensity Stabilized 633 nm Helium-Neon Laser, designed for applications in interferometry, metrology, instrumentation, and research. The laser offers active frequency and intensity stabilization, ruggedness, and a long lifetime.
Specifications:
  • Output Power: Greater than 1 mW of single longitudinal mode, polarized output.
  • Frequency Variation: Less than 3 MHz long-term.
  • Polarization: Linear polarization greater than 800:1.
  • Spatial Mode: TEM 00.
  • Beam Diameter: 0.7 mm.
  • Beam Divergence: 1.2 mrad.
  • Temperature Range for Lock: 15 - 30°C.
  • Time to Lock: Less than 30 minutes.
  • Classification: CDRH/CE Classification IIIa/3R.
Frequency Stabilized Mode:
  • Frequency Stability: ±1 MHz over 1 minute, ±1 MHz over 1 hour, ±2 MHz over 8 hours.
  • Intensity Stability: ±1%.
  • Frequency Shift with Temperature: Less than 2 MHz/°C.
Intensity Stabilized Mode:
  • Intensity Stability: ±0.1% over 1 minute, ±0.2% over 1 hour.
  • Frequency Stability: ±3 MHz over 1 minute, ±5 MHz over 1 hour.
Features: The laser is available in OEM configurations and is designed to meet specific customer needs in terms of packaging, performance, functionality, delivery schedule, and cost.
See more

Catalog excerpts

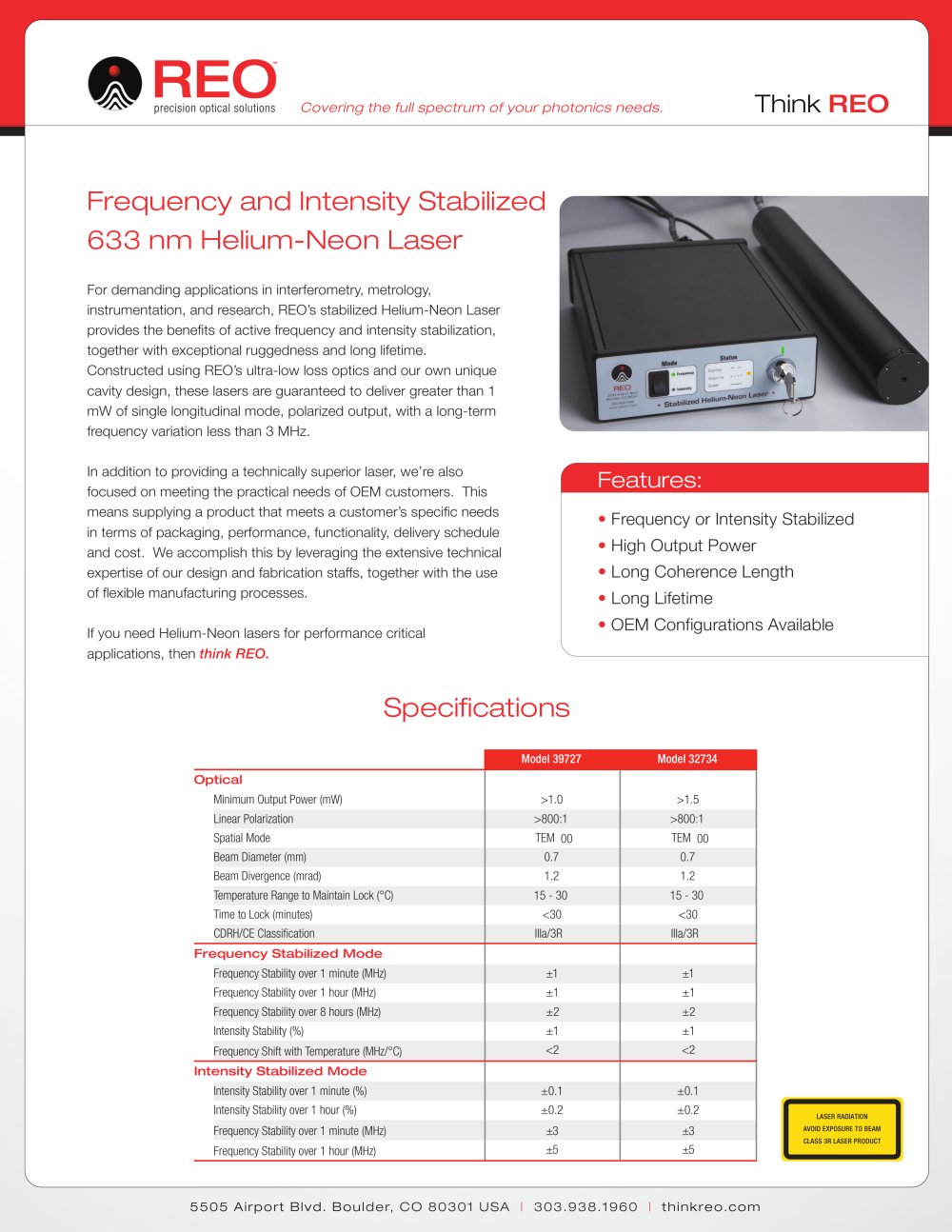

Stabilized 633nm Laser-1

precision optical solutions Covering the full spectrum of your photonics needs. Frequency and Intensity Stabilized For demanding applications in interferometry, metrology, instrumentation, and research, REO's stabilized Helium-Neon Laser provides the benefits of active frequency and intensity stabilization, together with exceptional ruggedness and long lifetime. Constructed using REO's ultra-low loss optics and our own unique cavity design, these lasers are guaranteed to deliver greater than 1 mW of single longitudinal mode, polarized output, with a long-term frequency variation less than 3 MHz. h addition to providing a technically superior laser, we're also focused on meeting the practical needs of OEM customers. This means supplying a product that meets a customer's specific needs in terms of packaging, performance, functionality, delivery schedule and cost. We accomplish this by leveraging the extensive technical expertise of our design and fabrication staffs, together with the use of flexible manufacturing processes. If you need Helium-Neon lasers for performance critical applications, then think REO. Frequency or Intensity Stabilized High Output Power Long Coherence Length Long Lifetime LASER RADIATION AVOID EXPOSURE TO BEAM CLASS 3R LASER PRODUCT 5505 Airport Blvd. Boulder, CO 80301 USA I 303.938.1960 I thinkreo.com

 Open the catalog to page 1
