Nonlinear & Gain Crystal Coatings

Product catalog summary

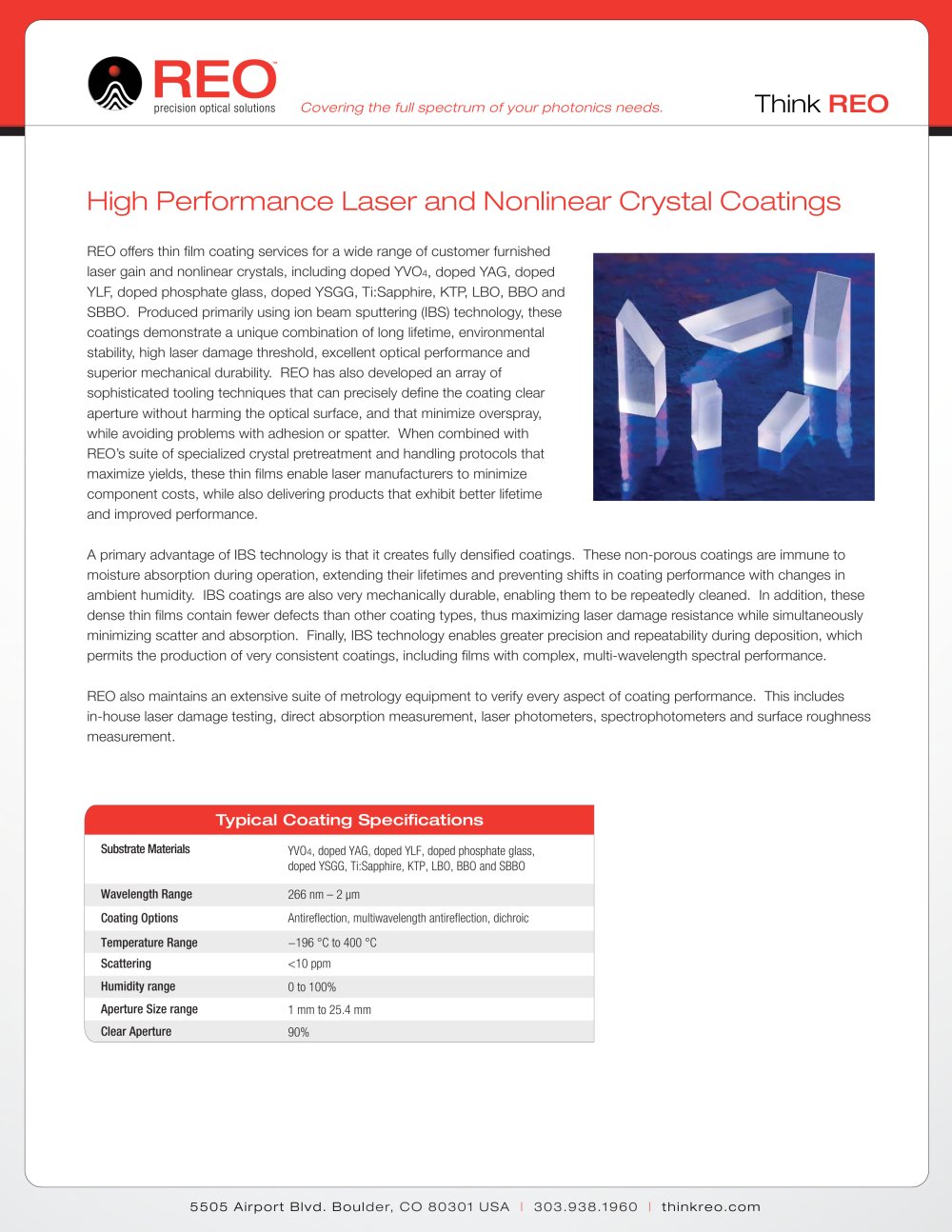

Overview: Think REO provides high-performance laser and nonlinear crystal coatings, utilizing ion beam sputtering (IBS) technology. These coatings are designed for a variety of laser gain and nonlinear crystals, offering durability and superior optical performance.

Key Features:

Coating Technology: IBS technology produces fully densified, non-porous coatings that resist moisture absorption, enhancing lifetime and performance stability.
Durability: Coatings are mechanically durable, allowing for repeated cleaning and maintaining high laser damage resistance.
Precision: IBS enables precise and repeatable deposition, supporting complex multi-wavelength spectral performance.

Substrate Materials: Coatings are available for materials such as doped YVO4, YAG, YLF, phosphate glass, YSGG, Ti:Sapphire, KTP, LBO, BBO, and SBBO.

Specifications:

Wavelength Range: 266 nm to 2 µm
Coating Options: Antireflection, multiwavelength antireflection, dichroic
Scattering: Less than 10 ppm
Humidity Range: 0 to 100%
Aperture Size Range: 1 mm to 25.4 mm
Temperature Range: -196 °C to 400 °C
Clear Aperture: 90%

Metrology: REO employs extensive metrology equipment to ensure coating performance, including laser damage testing, absorption measurement, and surface roughness measurement.
