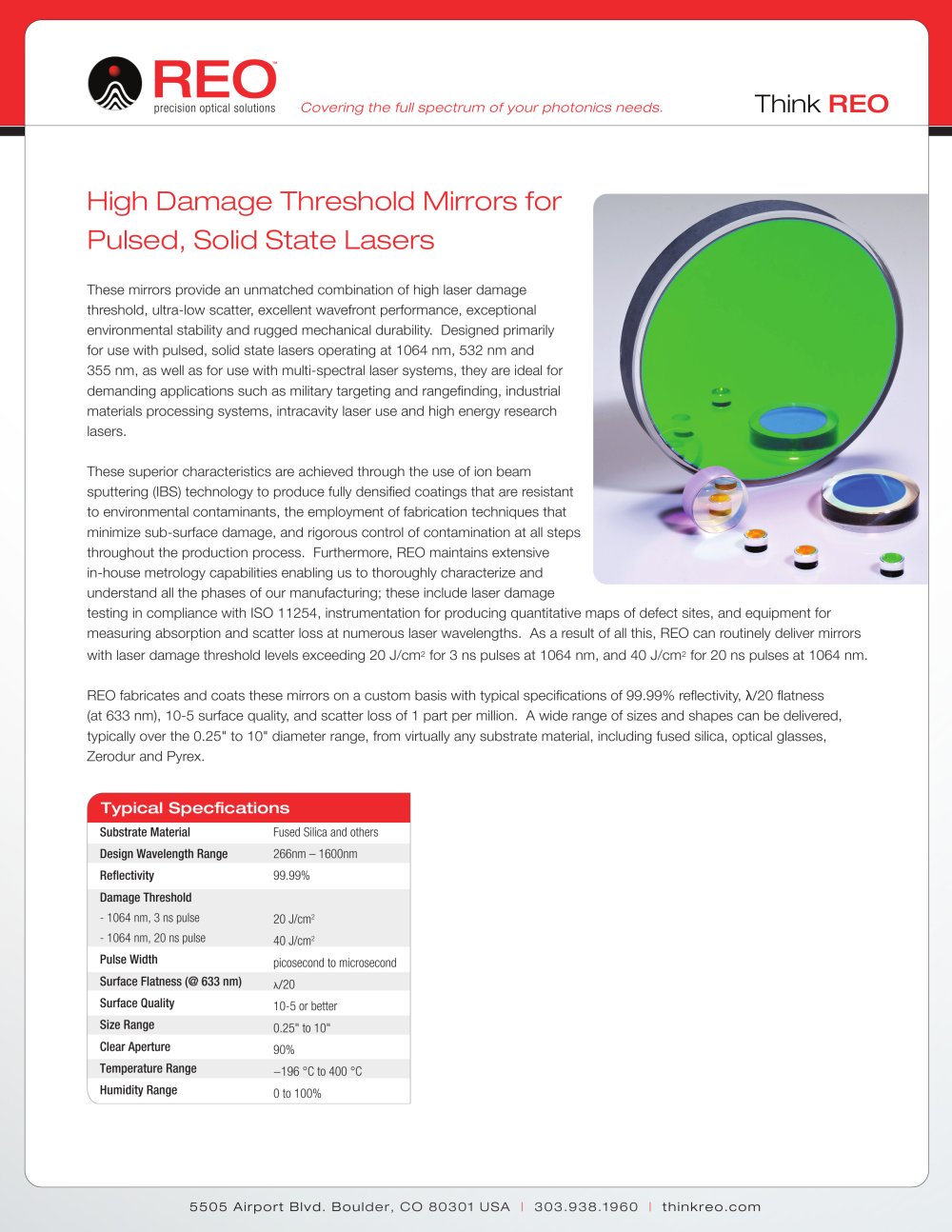

High Laser Damage Threshold Mirrors

Product catalog summary

Overview
Precision Optical Solutions offers high damage threshold mirrors designed for pulsed, solid state lasers. These mirrors are ideal for applications such as military targeting, industrial materials processing, and high energy research.

Key Features

High laser damage threshold with levels exceeding 20 J/cm² for 3 ns pulses and 40 J/cm² for 20 ns pulses at 1064 nm.
Ultra-low scatter and excellent wavefront performance.
Exceptional environmental stability and mechanical durability.

Technology and Manufacturing

Utilizes ion beam sputtering (IBS) technology for fully densified coatings.
Minimizes sub-surface damage through advanced fabrication techniques.
Rigorous contamination control throughout production.
In-house metrology capabilities for comprehensive manufacturing characterization.

Specifications

Reflectivity: 99.99%
Surface Flatness: λ/20 at 633 nm
Surface Quality: 10-5
Scatter Loss: 1 part per million
Size Range: 0.25" to 10" diameter
Substrate Materials: Fused silica, optical glasses, Zerodur, Pyrex
Design Wavelength Range: 266 nm – 1600 nm
Temperature Range: −196 °C to 400 °C
Humidity Range: 0 to 100%

Applications

Military targeting and rangefinding
Industrial materials processing systems
Intracavity laser use
High energy research lasers
