The document details Resato International B.V.'s BMS series high-pressure pump units, designed for high flow and pressure applications such as pressurizing valves, hoses, and piping systems. These units are also suitable for chemical injection.

Specifications
The BMS pump units are air-driven, capable of handling pressures up to 52,200 psi (3650 bar) and a maximum flow of 50 L/min. Constructed from stainless steel, they offer durability and a modular design for customization. They can be powered by compressed air or nitrogen, with a maximum air supply pressure of 7 bar (100 psi).

Models and Options
Two main models are available: BMS-W, which connects to a water supply, and BMS-D, which uses a detachable 40-liter stainless steel reservoir. Optional features include additional pumps, chart recorders, and various fittings and connections.

Operation
Pressure control is managed via an air regulator, with automatic pump stop at the desired pressure to conserve energy. An optional second pump can be independently controlled, and pressure readings are available through gauges and optional recorders. Pressure release is managed through a bleed valve.

Technical Details
The pump design minimizes mechanical components to enhance reliability and reduce maintenance time. Critical components are made from stainless steel or bronze, with easily replaceable high-pressure seals and check valve seats to minimize downtime.

Options and Accessories
The BMS units offer a range of options, including lids, engraved panels, isolating valves, wheels, pad eyes, forklift pockets, and chart recorders. An optional PC data acquisition system is available for documenting test results.

Service and Support
Resato emphasizes fast and efficient service, with in-house manufacturing ensuring parts availability. The company provides thorough training for service technicians to ensure minimal downtime for clients.

Certifications
The units are available in ATEX versions for use in hazardous areas, compliant with ATEX 94/9/EC standards. They come with test certificates, calibration reports, and maintenance manuals.

Company Profile
Founded in 1985, Resato International B.V. specializes in high-pressure components and systems up to 14,000 bar (200,000 psi). The company offers a wide range of products, including pumps, valves, and test equipment, with a focus on quality and service.

Contact Information
Resato International B.V. is based in Roden, The Netherlands, with contact details available for further inquiries.

Catalog excerpts

Mobile high pressure high flow testunits-1

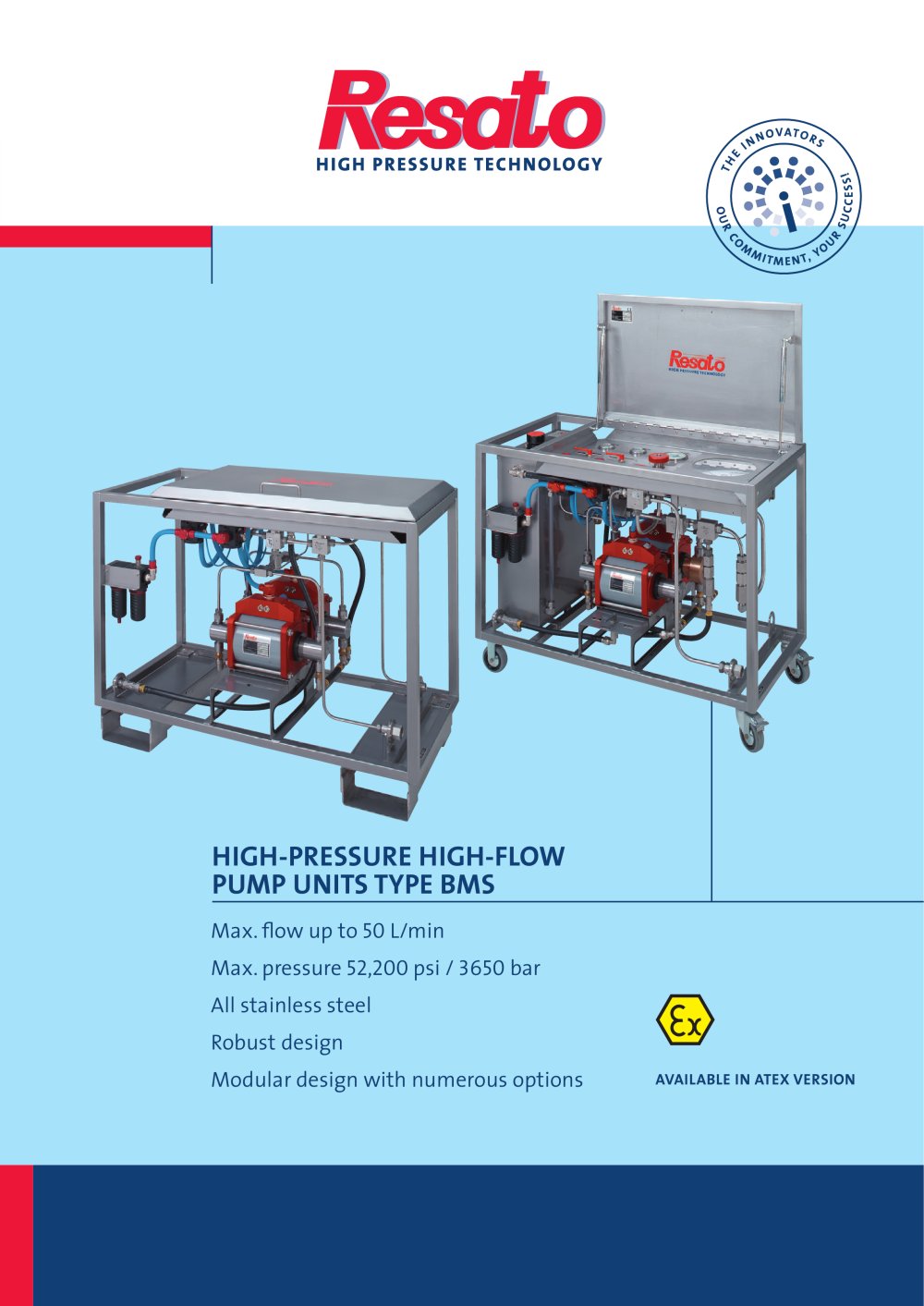

HIGH-PRESSURE HIGH-FLOW PUMP UN ITS TYPE BAAS__ Modular design with numerous options AVAILABLE IN ATEX VERSION

Open the catalog to page 1

Mobile high pressure high flow testunits-2

HIGH PRESSURE TECHNOLOGY Whenever high flow and high pressure are required, the Resato BMS pump unit will provide it. Resato's air-driven high-pressure BMS units are specially designed to pressurize for example valves, hoses, piping systems, completions, safety valves and wellhead equipment. Quick testing or testing of large objects is possible with an optional high-flow / low-pressure air-driven pump. This extra pump can be a single- or a double acting pump. Water, oil or an emulsion of both can be used as a high pressure medium. The BMS-unit can also be used for chemical injection,becausethe...

Open the catalog to page 2

Mobile high pressure high flow testunits-3

HIGH PRESSURE TECHNOLOGY TECHNICAL SPECIFICATION_ Unlike most other air-driven pumps,there are no mechanical pilot valves and long internal pilot channels which have a negative influence on the reliability and cycling speed of the pump. The air drive section of the pump only has the air piston and cycling spool as moving parts. Freezing of the pump is prevented by using an air cycling valve provided with light weight spool for high airflow at low air velocity. The high-pressure seal can be replaced within minutes, without dismantling the air drive section. Check valve seats can also be replaced...

Open the catalog to page 3

Mobile high pressure high flow testunits-4

BMS-W/BMS-D BMS-W/BMS-D 550 + 25 + 29 Reservoir 40 ltr Double acting pump acting 2= Double acting 0.9 1.3 2.1 2.9 4.5 8.0 12.2 18.0 25.0 BMS-D models (single acting) 1= Single 0.5 0.7 1.1 1.5 2.4 4.2 6.4 9.5 13.2 Extra weight BMS-D = Direct waterfeed BMS-W = 520 400 255 180 115 65 40 Second single acting pump Second double acting pump 30 20 WEIGHT (KG) BMS-W models (single acting) Recorder 70 85 +4 +9 Dimensions in mm. See our pump brochure for more details 2.4 1.5 1.1 0.7 0.5 180 255 400 520 0-600 0-400 4100 0-1600 0-2000 800 / 11,400 1245 / 17,800 1790 / 25,600 3655 / 52,200 2800 / 40,000 E,F...

Open the catalog to page 4

Mobile high pressure high flow testunits-5

HIGH PRESSURE TECHNOLOGY water feed HIGH PRESSURE TECHNOLOGY

Open the catalog to page 5

Mobile high pressure high flow testunits-6

HIGH PRESSURE TECHNOLOGY EXAMPLES OF RESATO HIGH-PRESSURE Air-driven pumps and gas boosters_ Hvdraulicallv-driven pumps and gas boosters_ General-purpose valves_ Check valves_ Pressure transducers Rupture-disc safety devices EXAMPLES OF RESATO HIGH- PRESSURE EQUIPMENT AND SYSTEMS Portable pressure-test systems_ Test equipment for hoses (safety) valves, fittings etc. Computer-controlled high-pressure test equipment Autofrettage systems_ Custom-made test equipment Water-jet cutting systems High-pressure food preservation systems PC data acquisition and recording systems Ouick connectors COMPANY...

Open the catalog to page 6
