Overview

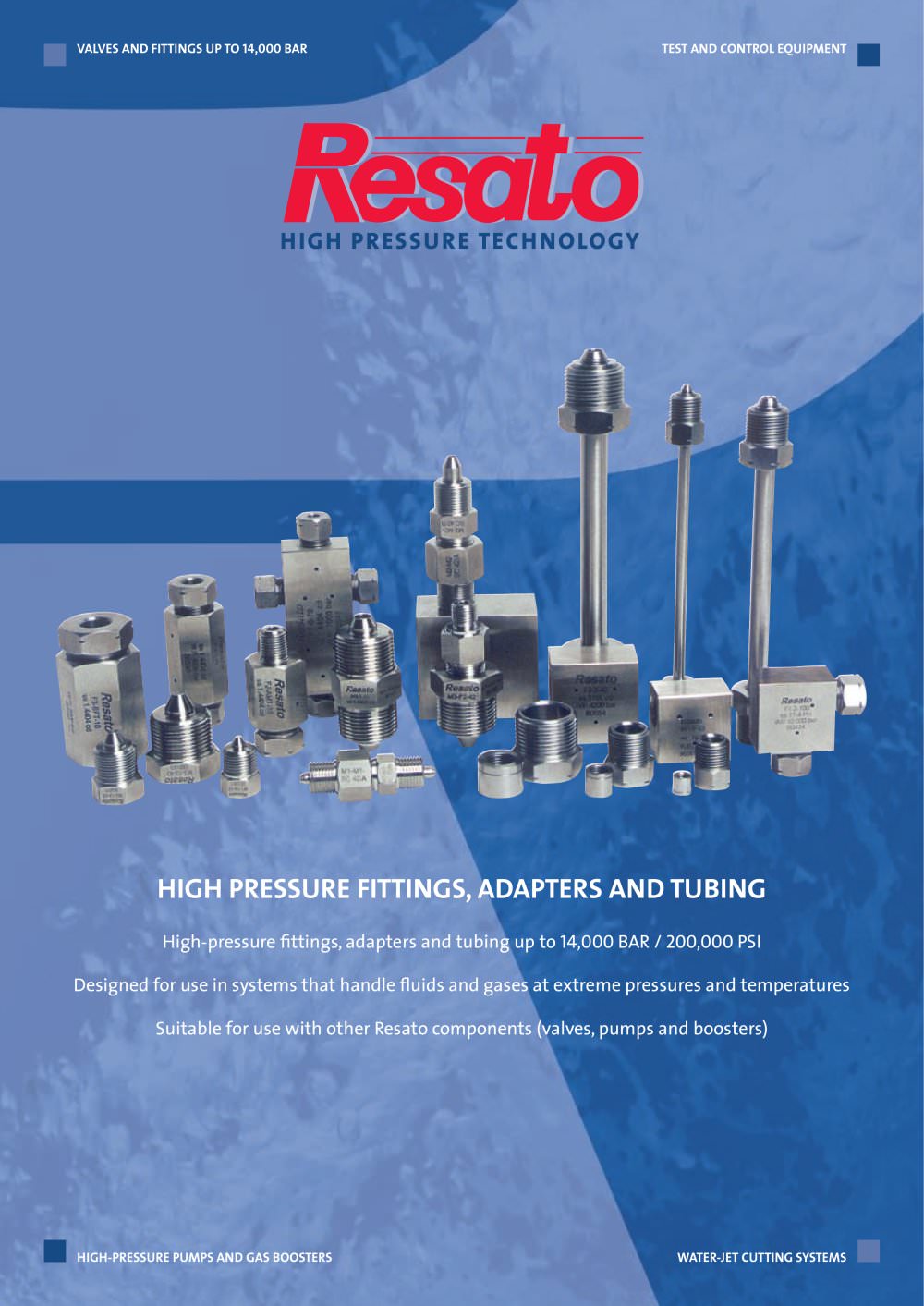

This document provides comprehensive information on high-pressure technology components, including valves, fittings, adapters, and tubing designed to handle pressures up to 14,000 BAR (200,000 PSI). These components are essential for systems managing fluids and gases under extreme conditions.

Specifications
The document details various high-pressure connections such as M16x1.5, 9/16”-18 UNF, M20x1.5, and 3/4”-16 UNF, with pressure ratings from 700 bar (10,000 psi) to 14,000 bar (200,000 psi). Materials include cold drawn stainless steel for pressures up to 7,000 bar and specially treated stainless steel for higher pressures.

Ordering Code System
An ordering code system is explained, indicating connection types, fitting types, adapter types, and pressure ratings. Codes like F1, FU1, M1, and MU1 denote different connection types and sizes, crucial for selecting appropriate components.

High-Pressure Connections
These connections feature an elastic metal-to-metal sealing system, with a flat cone sealing for pressures over 7,000 bar. A bleed hole is emphasized to prevent pressure build-up in case of leaks.

Fittings and Adapters
The document lists a range of fittings and adapters, including unions, elbows, tees, crosses, and plugs, each with specific pressure ratings and dimensions, available in various configurations.

Materials and Standards
Components are made from high-grade stainless steel, with options for sour gas service compliant with NACE MR-01-75 standards. Consultation with Resato is advised for applications outside the standard temperature range of -20°C to 80°C.

Conclusion
This document serves as a guide for selecting and ordering high-pressure components, ensuring compatibility and safety in high-pressure applications.

High Pressure Technology Overview

1. Specifications and Components
Detailed specifications for high-pressure fittings and adapters are provided, covering connections like M20x1.5, 3/4”-16 UNF, M30x2, and 1 1/8”-12 UNF.

2. High Pressure Fittings
Fittings are designed for tubing sizes of 10 mm or 3/8” (O.D.) and 14 mm or 9/16” (O.D.), with pressure ratings up to 60,000 psi.

3. High Pressure Adapters
Adapters for BSP and NPT connections are available, with pressure ratings from 10,000 psi to 23,000 psi.

4. High Pressure Tubing
Resato offers high-pressure tubing made from stainless steel, with sizes ranging from 6 mm to 14 mm O.D. and working pressures up to 100,000 psi.

5. Inspection and Testing
Tubing undergoes stringent inspection and testing, including hydrostatic testing.

6. Materials and Customization
Standard material is stainless steel, with options for heavy-duty cycling services.

Specifications
Specifications for stainless steel tubing are provided, categorized by outer diameter (O.D.), inner diameter (I.D.), and material type.

Procedures
Recommendations include maintaining a minimum bending radius of at least five times the outer diameter of the tubing.

Ordering Instructions
Instructions for ordering tubing, specifying length and type code, are provided.

High-Pressure Technology
Resato International B.V. offers components and systems up to 14,000 bar, including fittings, valves, hoses, and pressure transducers.

Company Profile
Resato International B.V. is a leading manufacturer in high-pressure technology, based in Roden, The Netherlands.

Contact Information
Resato International B.V., P.O. Box 30, 9300 AA Roden, Holland. Phone: (+31) 50 - 501 6877, Fax: (+31) 50 - 501 2402, Email: [email protected], Website: www.resato.com
