High pressure Check Valves

Product catalog summary

Overview: This document provides detailed information on Resato's high-pressure technology, specifically focusing on check valves types CV and CVM, which are designed for high-pressure applications up to 14,000 bar. It includes specifications, materials, and examples of high-pressure components and systems.

Check Valves Types CV and CVM:

Designed for one-directional flow of liquids and gases.
Soft seating available up to 4200 bar, ensuring high reliability.
Metal-to-metal seating for pressures of 7000 and 10,000 bar.
Available for direct (CVM) and in-line (CV) mounting.

Media Compatibility:

Standard soft seats suitable for water, hydraulic and lubrication oils, air, helium, mineral base fluids, emulsions, nitrogen, and argon.
Contact factory for other media compatibility.

Specifications:

In-line check valves with various pressure ratings and orifice sizes, e.g., CV1-42 (4200 bar, 2.2 mm), CV1-70 (7000 bar, 1.2 mm).
Direct mounting check valves with materials such as 1.4404 (316L) or 15-5PH for body and gland, and Viton O-ring seating up to 4200 bar.

High-Pressure Components and Systems:

Includes air-driven and hydraulically-driven pumps, fittings, general-purpose valves, swivels, hoses, tubing, pressure transducers, rupture-disc safety devices, and quick connectors.
Examples of equipment include portable pressure-test systems, computer-controlled high-pressure test equipment, autofrettage systems, autoclaves, and water-jet cutting systems.

Company Profile:

Resato International B.V., founded in 1985, specializes in high-pressure components and systems up to 14,000 bar.
Located in Roden, The Netherlands, with in-house engineering, R&D, and production facilities.

Contact Information:

Address: P.O. Box 30, 9300 AA Roden, Holland.
Phone: (+31) 50 - 501 6877
Email: [email protected]
Website: www.resato.com

Catalog excerpts

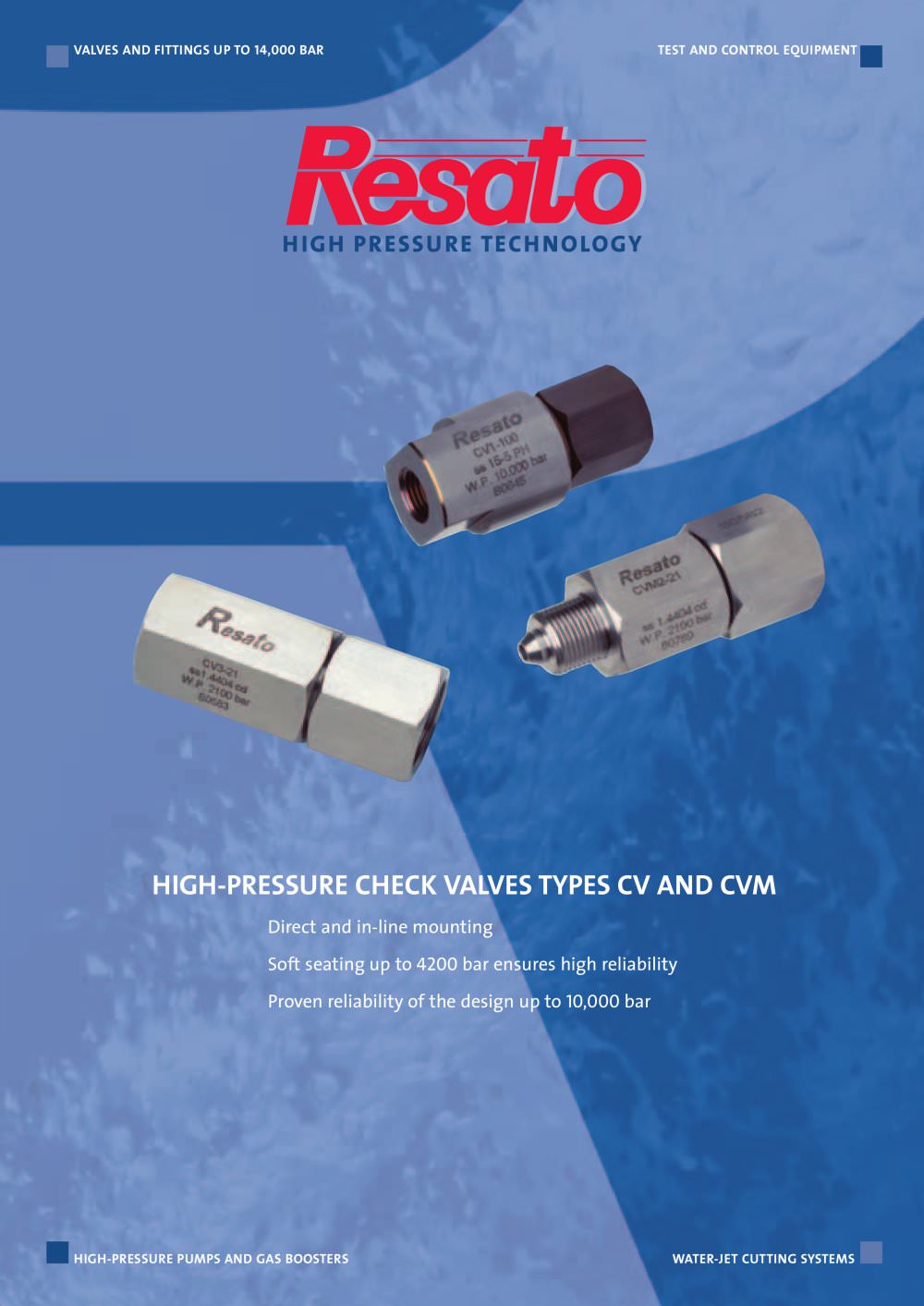

VALVES AND FITTINGS UP TO 14,000 BAR WATER-JET CUTTING SYSTEMS HIGH-PRESSURE PUMPS AND GAS BOOSTERS TEST AND CONTROL EQUIPMENT Directand in-line mountingSoftseating up to 4200 bar ensures high reliabilityProven reliability of the design up to 10,000 bar >

Open the catalog to page 1

HIGH PRESSURE TECHNOLOGY 75 Hex. 32 Hex. 32 M 16x1.5 (a)Pressure ratingOrificeOrdering codebar/psimm > CVM1-424200/60,0002.2 a a 80 Hex. 32 Hex. 32 M 20x1.5 (a)Pressure ratingOrificeOrdering codebar/psimm > CVM2-212100/30,0005.0CVM2-424200/60,0003.5 a a 95 Hex. 36 Hex. 36 M 30x1.5 (a)Pressure ratingOrificeOrdering codebar/psimm > CVM3-212100/30,0008.0CVM3-424200/60,0005.0 a a Body and gland material: 1.4404 (316L) or 15-5 PH Spring: 1.4310 Ball / poppet: 1.4034/1.4404 Seating: Viton O-ring (code V) up to 4200 bar Alternatives: EPDM (code E)BUNA-N (code B) > CV 1 - 42 / VIn-line check valvePressure...

Open the catalog to page 3
