Data recording systems

Product catalog summary

Overview: The document provides detailed information about the Resato PC data acquisition and recording system (type CR), designed for high-pressure systems up to 14,000 bar. It includes specifications, installation instructions, and options for customization.

Description: The Resato CR system is a calibrated data acquisition and recording system that generates test certificates with online pressure/temperature graphs. It is compatible with existing high-pressure systems and can be installed on a user's PC, allowing for certificate printing and data storage.

Technical Specifications:

Hardware: Resato data acquisition controller with up to 4 input channels, 16-bit resolution, operating temperature 0-30°C, and accuracy ≤ 0.5% of span up to 10,000 bar.
Software: Logging frequency of 2 Hz, supports up to 4 channels, certificates stored in *.emf format, data exportable in *.txt format, and supports English, German, or Dutch languages.
System Requirements: Minimum Pentium 166, 32 MB RAM, 20 MB free disk space, and Windows 95/98.

Pressure Transmitter: Must be ordered separately, with a range of 0-10 to 0-10,000 bar and accuracy ≤ 0.5% of span at 20°C.

Options:

Hardware: Temperature sensor (Pt 100 element) with a range of 0-250°C.
Software: Extended database features for customer and test data management.

Ordering and Package Delivery: The CR system can be configured with different input combinations (pressure, temperature). The package includes the data acquisition controller, power supply, setup software, cables, and connectors.

Company Profile: Resato International B.V., established in 1985, specializes in high-pressure components and systems. Located in Roden, The Netherlands, the company offers a wide range of products and services for high-pressure applications.

Contact Information: Resato International B.V., P.O. Box 30, 9300 AA Roden, The Netherlands. Phone: (+31) 50 - 501 6877, Email: [email protected], Website: www.resato.com

Catalog excerpts

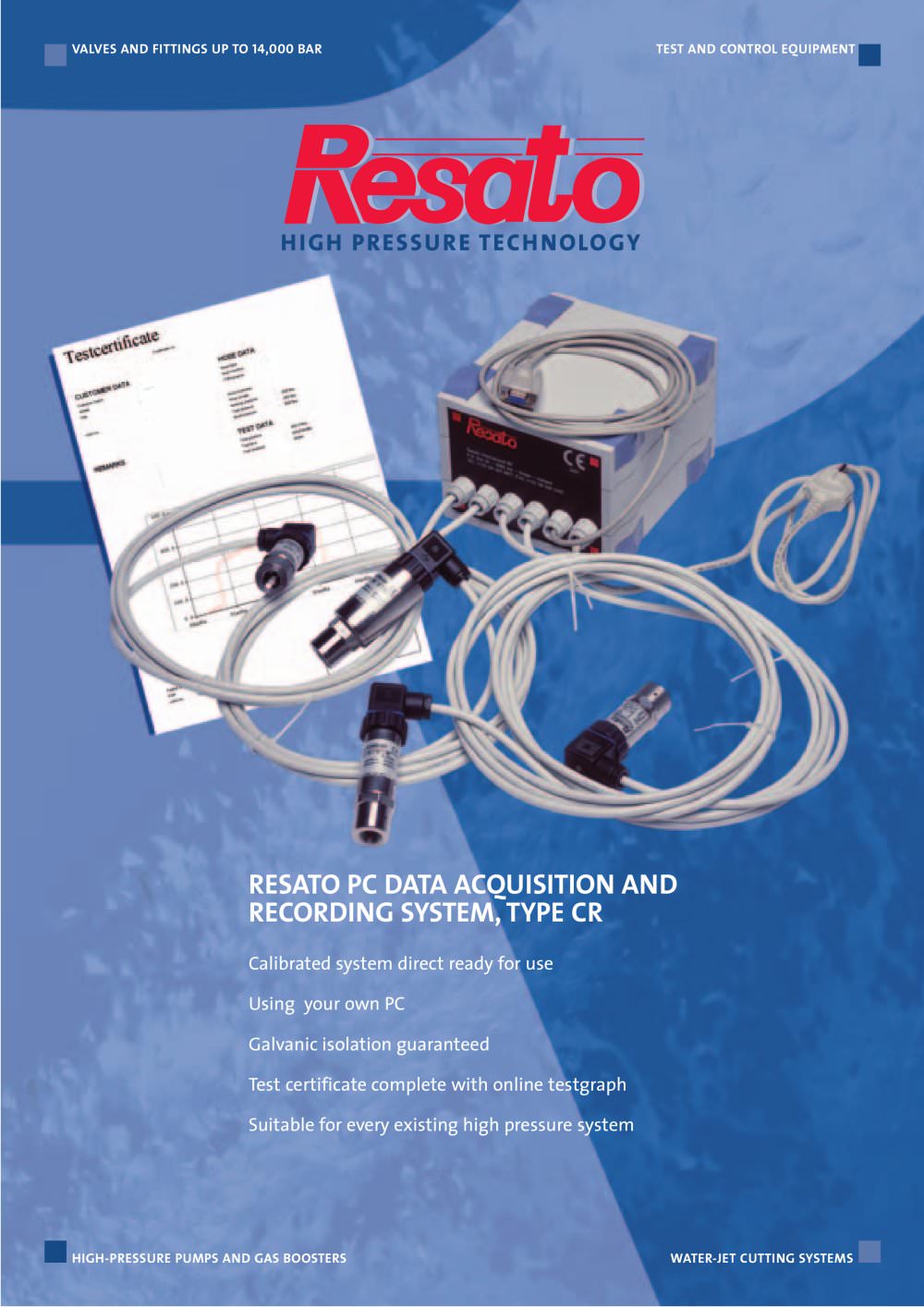

VALVES AND FITTINGS UP TO 14,000 BAR WATER-JET CUTTING SYSTEMS HIGH-PRESSURE PUMPS AND GAS BOOSTERS TEST AND CONTROL EQUIPMENT >

Open the catalog to page 1

HIGH PRESSURE TECHNOLOGY Pressure transmitters have to be ordered separately.See our leafletfor pressure transmitters type S. - Range 0-10 to 0-10,000 bar- Accuracy 0.5 % of span up to 10,000 bar at 20 C- Output The CR-system can be supplied with four different inputs (pressure,temperature and both). 0-10 V Ordering example: CR-P-P-P-T=CR recorder with three pressureinputs and one temperature inputCR-P- > 0-0-0 =CR recorder with one pressure input. The following options can be easily added to the Resato CR system. Hardware -Temperature sensor (Pt 100 element),range 0-250 аC,with separate transmitter.The...

Open the catalog to page 3
