CNC Bridge/Gantry Mills - Zayer KP/KPU

Product catalog summary

Overview: The document provides technical specifications and features of CNC milling machines and milling centres produced by Zayer, a company based in Vitoria-Gasteiz, Spain. It includes details on various models, their applications, and technical capabilities.

Key Sections:

Machine Types and Applications: The document lists different types of milling machines such as Bridge and Gantry type, and their applications in industries like railway and aeronautics.
Heads and Accessories: Various head types are mentioned, including 45º manual and automatic heads, and the TWIST head. Accessories like chip conveyors and coolant tanks are also highlighted.
Technical Specifications: Detailed specifications for different models are provided, including table dimensions, travel distances, feed rates, power, spindle speed, and weight capacities. The document also notes the positioning and repeatability accuracy of the machines.
Model Variants: Specific models such as GMCU-AR, FMCU-AR, MEMPHIS, and others are described with their respective technical details, including optional features and standard equipment.
Performance Metrics: Information on rapid feed, working feed, and drive systems for X, Y, Z axes is included, along with power and speed metrics for spindle heads.
Customization and Options: The document mentions the availability of optional features and the possibility of customizing machines to meet specific requirements.

Critical Information: The document emphasizes the precision and versatility of the milling machines, highlighting their ability to perform complex tasks with high accuracy. It also notes that specifications are subject to change due to continuous technological improvements.

Catalog excerpts

CNC Bridge/Gantry Mills - Zayer KP/KPU-1

Rack and double motor and pinion Dies Bed FPCs - FMCsRam KPCs / FPCs / FMCs > Hydroelectric Carriage KPCs - FPCs - FMCsTable FPCs - FMCs Railway Aeronautic >

Open the catalog to page 1

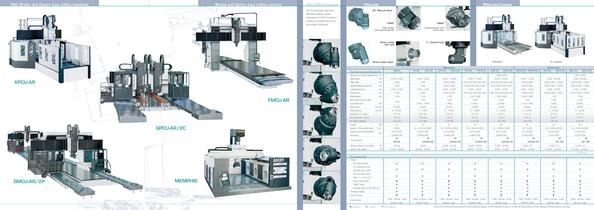

CNC Bridge/Gantry Mills - Zayer KP/KPU-2

4.000 - 6.000 TEBAS > 3.000 - 5.000 KP-AR > 3.000 - 5.000 KPU-AR > 4.000 - 12.000 KPC-AR > 4.000 - 12.000 KPCU-AR > 6.000 -12.000 FPC-AR > 6.000 -12.000 FPCU-AR > 6.000 -12.000 FMC-AR > 6.000 -12.000 FMCU-AR > 3.000 -12.000 MEMPHIS MEMPHIS U > 3.000 -12.000 4.000 - 27.000 GPC-AR > 4.000 - 27.000 GPCU-AR > 4.000 - 27.000 GMC-AR > 4.000 - 27.000 GMCU-AR Moving cross beam, displacementTable lengthTable widthDistance between columns Longitudinal travelCross travelVertical travelMax. distance from tableto spindle nose Rapid feedWorking feedDrives of X, Y, Z axisB= Ball screw / Ԙ mmR= Rack / Module...

Open the catalog to page 2
