REMA Catalogue - Edition 19
REMA Catalogue - Edition 19
This document is the 19th edition of the REMA catalog, focusing on hoisting and lifting equipment. It outlines the specifications, features, and standards of various lifting devices, ensuring compliance with European Machinery Directive 2006/42/EC and certifications like ISO 9001, ISO 45001, and EKH.
REMA emphasizes quality in both products and services, adhering to European standards and regulations. The catalog highlights the importance of following legal guidelines for the safe use of hoisting and lifting equipment.
The catalog is organized into several sections, each detailing different types of hoisting and lifting equipment, including hand chain hoists, ratchet hoists, electric chain hoists, trolleys, and more.
Each product section provides detailed descriptions, including specifications such as weight, dimensions, and load capacity, features like safety mechanisms, material quality, and design benefits, compliance with relevant norms and standards, and options for customization.
Highlighted products include the REMA C-21 Hand Chain Hoist, Elephant H100 Hand Chain Hoist, and REMA RIH Stainless Steel Hand Chain Hoist, each known for specific features like compact design, safety factors, and suitability for various environments.
The REMA catalog provides comprehensive information on a wide range of hoisting and lifting equipment, emphasizing quality, safety, and compliance with international standards. It serves as a valuable resource for selecting the appropriate equipment for various industrial applications.
The document provides detailed specifications and features of various REMA hand chain hoists and ratchet hoists, including models like X-Line, Black Line, S20P, S20G, and KBT200OD, outlining their properties, standard deliveries, options, and compliance with norms.
Details on REMA YA Ratchet Hoist, REMA YAM Mini Ratchet Hoist, and REMA YAS Ratchet Hoist are provided, highlighting their robust design, safety features, and suitability for various applications.
All models comply with EN12100-1/2, EN13157, and EN818-7 standards, with safety features including double pawl systems, safety latches, and overload protection mechanisms.
The document provides comprehensive information on REMA's range of hoists, highlighting their safety features, compliance with international standards, and suitability for various industrial applications.
Features include low effort at full load, double pawl system for increased safety, asbestos-free brake discs, and wear-resistant alloy steel load chain wheel.
Models like Elephant Electric Chain Hoists and REMA SR Electric Chain Hoists are detailed, with features like slip clutch for overload prevention and self-locking brake.
Load capacities range from 100 kg to 12,500 kg, with options for different lifting speeds and power supplies.
All products conform to EN12100-1/2, EN818-7, and EN14492 standards, ensuring safety and reliability.
Electric Chain Hoists and Trolleys are detailed, including models like ALHVDH, SR, and LK series, with varying lifting capacities, speeds, and duty cycles.
Hoists come with specified lifting height, control cable, power cable, and chain bag, while trolleys are delivered with adjustable flange widths and maintenance-free bearings.
Higher lifting and control heights, larger chain bags, wireless remote controls, and different operating voltages are available for hoists.
All products comply with EN12100-1/2, EN818-7, and EN14492 standards, ensuring safety and reliability.
Hoists are categorized by weight load limits (WLL), lifting speeds, motor outputs, and dimensions.
Various models of trolleys are described, including dimensions and weight capacities, with key features like adjustable flange widths and solid steel wheels.
Rema Select 30S and RMBT spindle beam trolleys are highlighted for their quick assembly and safety features.
Elephant MAS and EEFS electric trolleys are designed for use with specific electric hoists, offering features like single or double axle designs and multiple speed options.
Used in various industries, these hoists operate at 6 Bar air pressure and include features like load-holding brakes and limit switches.
MD Power Pullers and MDA Rope Pullers are lightweight and robust, designed for pulling, lashing, and tensioning with a safety factor of 4.
REMA Gripper wire rope hoists are versatile, with capacities up to 3200 kg, and include safety features like shear pins and overload indicators.
Wireless remote controls offer user-friendly operation with a range of 100 meters and include emergency stop features.
Light-weight, medium-weight, and heavy-weight designs are available, each with specific features and compliance with EN12100-1/2 and DIN-EN15112 standards.

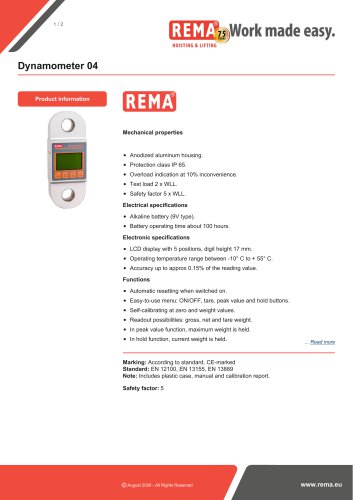

Models like DSD04 and DSD05 are detailed, with features like anodized aluminum housing, IP65 protection, and high accuracy.
The TEO mechanical crane scale is robust and maintenance-free, designed for continuous use with an accuracy of +/- 1% of full scale.
REMA cargo lashing systems are manufactured according to EN 12195-2 standards, with key requirements including a safety factor of 2x for hardware and 3x for straps.
The document outlines the specifications for cargo lashing systems, emphasizing the importance of using at least two lashing systems with an angle α between 35° and 90°.
Proper lashing procedures are highlighted, including inspecting ratchet straps for damage and using corner protectors for sharp edges.
The document adheres to the European Standard EN 12195-2, which specifies requirements for lashing equipment.
Recommendations include using anti-slip mats to increase the coefficient of friction, thereby reducing the number of lashing systems needed.
The tables provide detailed information on various lashing straps, including their standard tension force (Stf), lashing capacity (LC), webbing width, and length.
Safety precautions are emphasized, including regular inspections of lashing gear and using protective gear for sharp edges.
The document provides comprehensive guidelines for the safe and effective use of cargo lashing systems, emphasizing adherence to standards and proper inspection and maintenance of equipment.
Protective equipment like REMA DF polyurethane protective sheets and anti-slip mats are detailed, with specific standards and applications.
Usage guidelines for load binders and lifting slings are provided, emphasizing safety and compliance with standards.
Load binders conform to EN12195-3 and PAS1065 standards, while lifting slings meet European Standard EN 1492-2.
Storage and material selection recommendations are provided, focusing on environmental conditions and application needs.
Information on load binders and webbing slings is provided, including lashing capacities and dimensions.
Temperature limits and environmental considerations for slings are highlighted, along with protective sleeve options.
This document provides detailed specifications and standards for various types of slings and protective equipment used in industrial applications.
Duplex webbing slings with a double band layer are described, each stripe indicating a 1-ton capacity.
Polyester round slings are highlighted for their durability and suitability for industrial use.
The REMA BS protective cover and DF polyurethane protective sheet are designed to protect slings during lifting operations.
Zinc-coated and galvanized steel wire rope slings are detailed, available in 1-leg to 4-leg configurations.
Information on REMA (G10) chain slings is included, focusing on their components and working load tables.
Chains used in lifting applications are commonly available in grades 8, 10, and 12, with Grade 10 chains offering superior strength and reduced weight.
Grade 10 chains are more robust and environmentally friendly, consuming less energy during production.
The Working Load Limit (WLL) for REMA chains is specified for various configurations and angles.
Grade 10 chains are designed to withstand nominal loads of 250 N/mm², test loads of 625 N/mm², and failure loads of 1,000 N/mm².
Chains must be rated at 50% of the maximum WLL in asymmetric load conditions, with load factors provided for angled and shock loads.
REMA offers various chain sling assemblies for different configurations, each with specific components.
REMA 10 chains provide significant advantages in lifting applications due to their enhanced strength, reduced weight, and environmental benefits.
The document provides detailed specifications for various types of lifting equipment, including eye hooks, swivel hooks, and lifting clamps.
These hooks are designed for lifting applications with a safety factor of 4 and include a safety latch.
REMA lifting clamps are highlighted for their quality, compact design, and safety features.
These clamps are used for lifting steel plates vertically, with safety mechanisms to prevent slippage.
Designed for horizontal transportation of steel plates, these clamps must be used in pairs.
The document provides comprehensive safety guidelines, including ensuring the safety lever is closed before lifting.
This technical document serves as a detailed guide for selecting and using various lifting equipment, emphasizing safety and compliance with standards.
The document provides detailed specifications and applications for various types of lifting clamps used in industrial settings.
CHT, CNMH, CHTV, and CHV clamps are described, each with specific applications and safety features.
CSH and WF clamps are detailed, highlighting their force distribution and safety features.
CBV and COBK clamps are designed for vertical lifting of steel beams, ensuring load stability.
CBS and CBU clamps are equipped with thread spindles for easy attachment.
CPH and CRK clamps are used for horizontal lifting of pipes and tubes.
CBKN clamps are for vertical lifting of plates and blocks with parallel sides.
PU-10 and PU-20 are designed for wooden pallets, while PU-30 is suitable for both wooden and steel pallets.
CSVW, CSV, KSB, KSBO, RMBC, RMBCV, RMAC, and RMMC clamps are detailed, each with specific safety features and applications.
PFC, S Series, USC, and AC Series clamps are described, highlighting their compact design and safety features.
REMA DG10 Drum Grab, CVA and CVB Barrel Clamps, and Drum Chain Assembly (G8) are detailed for safe lifting and handling of barrels.
This document provides technical specifications, norms, and usage guidelines for various material handling equipment, including barrel clamps, dolly, hydraulic trucks, lifting magnets, and concrete lifting hooks.
Details on DTS Fork Truck Barrel Clamp, DD Steel Barrel Dolly, VK Barrel Clamp, DH Hydraulic Barrel Truck, and DM Movable Barrel Truck Swivel are provided.
Concrete Hook Type RBH, Stelcon Chain Sling Assembly, and CBA Vertical Concrete Pipe Lifting Clamps are detailed.
PFR Permanent Lifting Magnets, QPM Permanent Lifting Magnets, and PK/MK Compact Hand Magnets are described.
Ensure compliance with specified norms for safety and efficiency, with regular inspections by authorized personnel.
The document outlines specifications for various lifting equipment including hand magnets, mechanical vacuum lifters, electric/pneumatic vacuum lifters, and winches.
Safe workload must not be exceeded, with specific safety factors for hand and crane magnets.
REMA VHM mechanical vacuum lifters require no energy source and include safety features like vacuum protection.
Designed for horizontal transport of non-porous materials, with safety features like vacuum protection and acoustic signals.
Specifically for glass plates, with ergonomic handling and options for electric rotation and tilting.
RPHA and RPHM pallet hooks feature adjustable loading forks and height adjustment.
Various types of winches are detailed, including hand winches, gear and worm gear winches, and electric winches.
Always verify material specifications and dimensions before lifting, with emphasis on safety features.
This document provides detailed specifications and properties of various types of winches, sheaves, snatch blocks, and jacks.
Different types of winches are covered, including worm gear winches, electric hoisting winches, and electric worm gear winches.
Details on RZ and RBZ sheaves, as well as SKW and KBH snatch blocks, are provided.
Various types of steel jacks are described, including DMK, VHS, and KBH models.
Details on REMA RMG hydraulic jacks and Weber A and AT hydraulic jacks are provided.
Norms like EN12100-1/2, EN13157, EN14492, DIN-EN7355, and ASME/ANSI Safety Standard are mentioned.
Overload limiters are required for certain equipment above specified weight limits, with customization options available.
The document outlines various hydraulic jacks, cranes, pallet trucks, and lift tables, each with specific properties and applications.
Types include Weber ATD, RMV, RMGL, and RMH jacks, each designed for specific load capacities and applications.
GWK and GWKE cranes are designed for intensive environments, featuring collapsible designs and safety valves against overload.
Various models like PT, HPTR, PTZ, and PTE are detailed, each with specific load capacities and wheel materials.
PTH-M and PTH-E models combine pallet truck maneuverability with scissor table lifting heights.
SL manual winch stackers are compact and maintenance-free, with adjustable fork widths and brakeable steering wheels.
Each equipment type is listed with its Working Load Limit (WLL), dimensions, weight, and product ID.
This document provides detailed specifications and descriptions of various lifting tables, roller carriages, skates, cranes, and overload limiters.
Types include HT (hand-operated) and D (double scissors for more lift height), with features like hydraulic systems and foot pedals for lifting.
Types include HS (standard), HSD (double scissor), HSL (low profile), and HSU (U-form), with robust construction and safety features.
Types include TRV, TRZ, TKV/TBV, TRS, TRW, RTRS, and TS, with features like nylon or steel rollers and anti-slip coatings.
Type HF for wire ropes, with features like integrated microswitch and aluminum sensor.
Types include PKA and PKAV (mobile), with features like quick assembly and adjustable height and span.
This document provides detailed specifications and options for various crane systems, tripods, hoist traverse beams, fall arrest equipment, and electric cable systems.
Different types of jib cranes are described, including column jib cranes with a 270° slew and wall-mounted jib cranes with a 180° slew.
REMA aluminum tripods are noted for their lightweight and transportability, with options for steel tripods and additional safety features.
These beams come with fixed or adjustable hooks and comply with several safety norms.
Systems for suspended cables used in crane power supply are outlined, including C-rails and flat cable systems.
Information on personal safety harness sets, lanyards, and fall arrestors is included, emphasizing proper use and regular inspection.
The document references several safety standards, ensuring compliance with industry regulations.
Users are advised not to exceed equipment capacities and ensure regular maintenance and inspection of safety gear.
Various fall arrest equipment and harnesses are detailed, adhering to norms such as EN 361, EN 355, EN 353-2, EN 360, EN 358, EN 813, EN 1497, EN 1498, EN 354, EN 1891, EN 892, and EN 795-B.
Harnesses, lanyards, fall arresters, ropes, and accessories are described, each with specific features and applications.
Each product is designed for specific applications, with recommendations for proper fit and adherence to specified norms.
Key parameters include maximum load capacities, compliance with safety norms, and specific applications.
Catalog excerpts
HOISTING AND LIFTING typ: X-CH15 Chain: 7.1 /1500 x 21.0 Serial No: Year:
Open the catalog to page 1
i Rights This document has been compiled with the greatest possible care. No rights or claims can be derived from the content and any typing errors. Images may differ from the original. All information is protected by copyright and may not be used or distributed by third parties. No part of this publication may be reproduced without explicit permission © REMA Holland B.V. Quality REMA stands for quality, both for our products and our services. REMA products are conform to the European Machinery Directive 2006/42 / EC. REMA is ISO 9001, ISO 45001 and EKH certified. Rema® is a registered trademark...
Open the catalog to page 2
Comparison list hand chain hoist REMA C-21 Hand chain hoist Elephant Hand chain hoist Elephant PIH/H100 Cleanroom hand chain hoist REMA RIH Stainless steel hand chain hoist REMA Select 200 Hand chain hoist REMA X-Line Hand chain hoist REMA X-line Black line hand chain hoist REMA S20 Hoist/Trolley combination
Open the catalog to page 4
Manual hoist selection chart Elephant H100 Chain hoist featuring precision bearings. REMA Select 200 Designed with overload protection to lower the load safely in the event of overloading. REMA X-line Identical to the Select 200-OD, but without the overload protection. REMA BLACK-line Identical to the X-line, but a black version. Hoistman mini-hoist A high-quality, lightweight hand chain hoist available in 150 kg and 250 kg versions. Main features General purpose. Ideal for industrial uses and installation work. Main features Suitable for very intensive use in the offshore industry and heavy...
Open the catalog to page 5
REMA C-21 Hand chain hoist Safety factor of at least 4.8 or higher. Very compact and light body, 5.5 kg 0.5 ton, easy to carry. Strong and dimensionally stable house made of high-quality metal. Durable brake discs guarantee a longer service life. The strongest hoist load chain B39VH, Grade 10. High-quality solid forged hooks with a strong and stable safety latches for even greater safety. Properties -- Light and compact design. -- Galvanized load chain with high tensile strength, Grade 10. -- Galvanized hand chain. -- Reliable load pressure brake that holds the load at any desired height. --...
Open the catalog to page 6

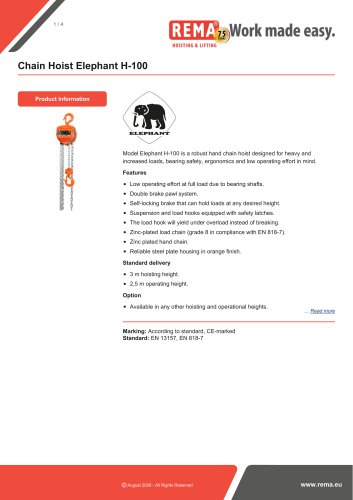

Elephant H100 Hand chain hoist The Elephant H100 is a robust hand chain hoist for heavy and very intensive use where safety, ergonomics and little operating effort is required. Properties -- Low operating force at maximum load due roller bearings. -- Double pawls with double springs supporting fail-safe brake mechanism. -- Self-locking brake holds the load at any desired height. -- Safety latches on top and bottom hooks. -- Rolled-edge hand wheel cover to provide smooth operation of the hand chain when pulled sideways. -- In case of overload, the hooks will gradually bend and do not suddenly...
Open the catalog to page 7
1 Elephant HOISTMAN The Elephant HOISTMAN is a lightweight mini-hand chain hoist. Very compact for use in confined spaces and where a low self weight is desirable. Properties -- Light and compact. -- Low operating effort at maximum load through planetary gears. -- Safety latches on top and bottom hook. -- Body plating in golden colour powder painting. -- Galvanized load chain (Grade 10). -- Galvanized hand chain. Standard delivery -- 2,5 meters lifting height (max. between top and bottom hook). -- 2 meters operating height. Norm: -- EN12100-1/2, EN13157, EN818-7 E Hand chain hoist Elephant Hand...
Open the catalog to page 8
Elephant PIH/H100 Cleanroom hand chain hoist The Elephant PIH / H100 cleanroom manual chain hoist is a robust hoist that is suitable for use in clean rooms. Properties -- Cover chrome-plated. -- Side plates nickel plated. -- Top and bottom hooks nickel plated and have safety latches. -- In case of overload, the hooks will gradually bend and do not suddenly break off. -- Nuts and base discs of stainless steel. -- Hand chain made of stainless steel. -- Load chain nickel plated. Standard delivery -- 3 meters lifting height (max. between top and bottom hook). -- 2.5 meters operating height. Options...
Open the catalog to page 9
REMA RIH stainless steel hand chain hoist The Rema RIH hand hoist is a robust manual chain hoist made entirely of stainless steel, which is suitable for use in the food industry or other environments where there is high humidity and there is sensitivity to corrosion. Properties -- Suitable for highly corrosive environments or dust-free rooms - clean room environment -- Maximum protection against corrosion -- Load and hand chain AISI 316 -- Cover caps AISI 304 -- Stainless steel components -- Hooks and load chain wheel, plates: AISI 304 -- Electrolytically polished surface. Standard delivery --...
Open the catalog to page 10
REMA Select 200 Hand chain hoist The REMA Select 200 OD is equipped with an overload protection from 500 kg. It is a robust manual chain hoist for heavy and intensive use where safety, ergonomics and a low operating effort are paramount. Properties -- The new innovative overload protection ensures an improved safer operation of the hoist. -- Overload device system makes it possible to lower the load in a controlled way. -- Equipped with a double pawl system. -- Brake is provided with astbestos free friction discs. Overlo ad De -- Top and bottom hooks are equipped with a robust latches. provid...
Open the catalog to page 11
1 REMA Select 200 Hand chain hoist (high capacities) The REMA Select 200 is a robust manual chain hoist for heavy and intensive use where safety, ergonomics and a low operating effort are paramount. Properties -- Equipped with a double pawl system. -- Brake is provided with astbestos free friction discs. -- Safety latches on top and bottom hook. -- In case of overload, the hooks will gradually bend and do not suddenly break off. -- Galvanized load chain Grade 8. -- Galvanized hand chain. Standard delivery -- 3 meters lifting height (max. between top and bottom hook). -- 2.5 meters operating height....
Open the catalog to page 12
REMA X-Line Hand chain hoist The REMA X-Line hand chain hoist is a robust and ergonomic hoist for intensive use. Properties -- Low operating force at full load. -- Increased operational safety due to double pawl system. -- Brake is provided with astbest-free friction discs. -- Load chain wheel is made of wear-resistant alloy steel. -- Safety latches on top and bottomhook. -- In case of overload, the hooks will gradually bend and do not abruptly break off. -- Galvanized load chain (Grade 8). -- Galvanized hand chain. -- Steel housing with orange colored powder coating. Standard delivery -- 3 meters...
Open the catalog to page 13All REMA Hollande B.V. catalogs and technical brochures
