Catalog excerpts

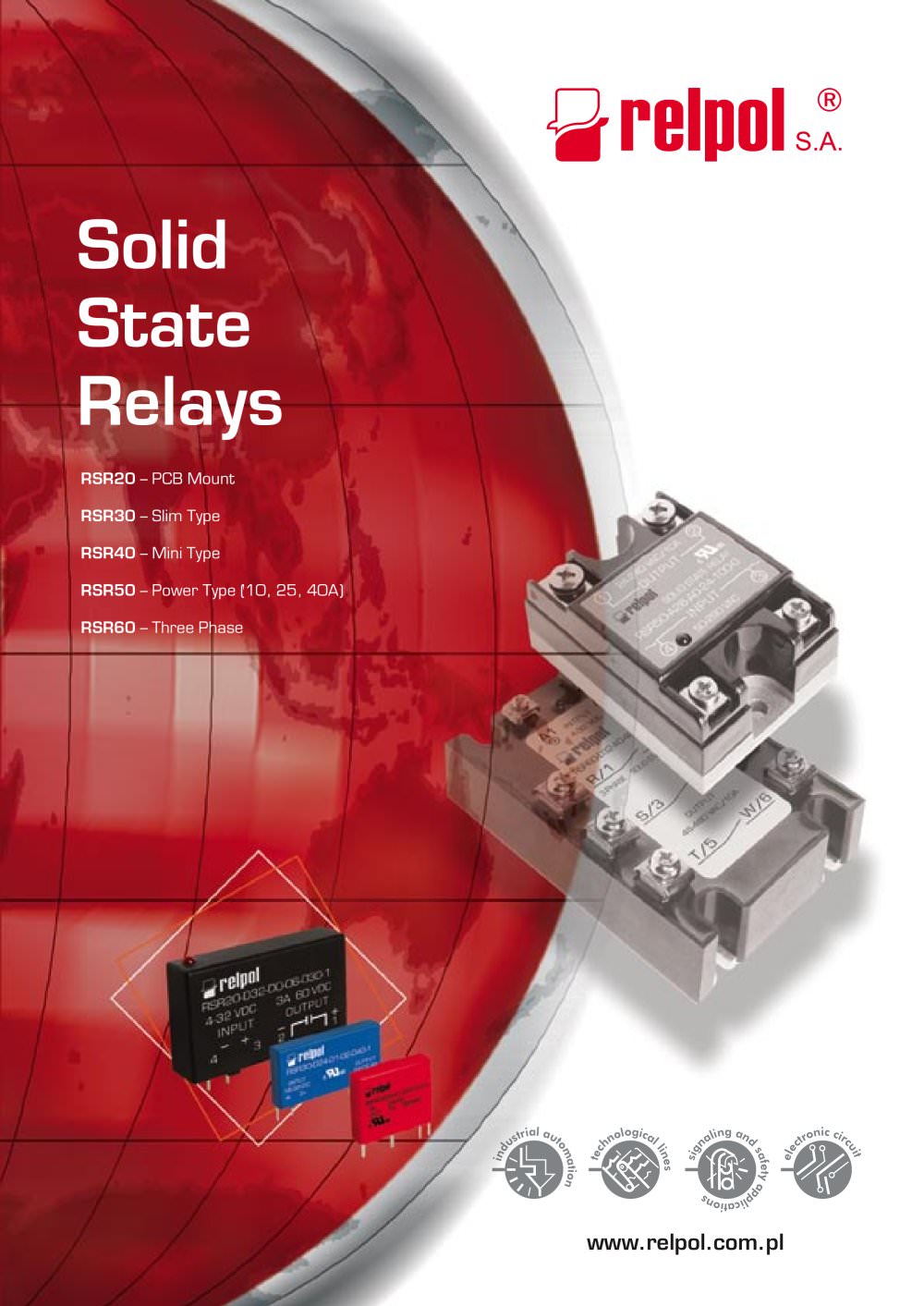

RSR20 PCB Mount RSR30 ֖ Slim Type RSR40 Mini Type RSR50 ֖ Power Type (10, 25, 40A) RSR60 Three Phase >
Open the catalog to page 1of the manufacturer of electromagnetic relays in Europe > provides for Relpols presence > in markets worldwide RELPOL M Minsk / Belarus RELPOL BG Varna / Bulgaria RELPOL HUNGARY Budapest / Hungary RELPOL BALTIJA Vilnius / Lithuania > RELPOL ELTIM Sankt-Petersburg / Russia RELPOL ALTERA Kiev / Ukraine RELPOL FRANCE Paris / France RELPOL LTD. London / England > www.relpol.com.pl size="-2">
Open the catalog to page 34 The standards quality guaranteed > Taking into account the high requirements of the marketand our customers full satisfaction, Relpol S.A. constantly strives for improvement of the quality of the products and services we offer. Our own technological, designing and research facilities remarkably help us to achieve our goals.The modern production profile and high qualityof the products that comply with the requirements of the European Union are confirmed by the ISO 9001 : 2000 CERTIFICATE. The Gold Statuette of the Business Centre Club 1995 / EUROPRODUCT 2002 / EUROPRODUCT 2003 / the...
Open the catalog to page 45 Relations and trust > Our co-operation with numerous renowned suppliers of materials and components necessary for the production process allows us to realize even complex deliveries quickly and smoothly. We build long-term partnership relations with our customers. Owing to regular consultations and steady contri-bution of our Partners to our activities, we gain the knowledge necessary for reliable and professional services.The permanent development of our staff along with human resources stabilization provide our customers with professional service. As a result of our striving for...
Open the catalog to page 5a turn-on time of less than 1 ms . This fast switching capability makes it possible to phase angle control the power output by means of an external control circuit. In the ana- log switching relay this function is already built-in.SSRs are available with input circuits which are directly Advantages DCB substrate, on which the chip is soldered, con-sists of a ceramic insulator (Al2O3) with a layer of copper (Cu) on both sides. The copper is bonded with the ceramic material in order to get similar thermal expansion conditions for both materials. Thereby the mechanical stress between silicon...
Open the catalog to page 6RSR30DESCRIPTION TYPESD05-A1-24-020-1D12-A1-24-020-1D24-A1-24-020-1 INPUT CIRCUIT Nominal voltage5 VDC12 VDC24 VDCControl voltage range3 ~ 10 VDC7 ~ 20 VDC18 ~ 32 VDCControl current12 mA10 mA7.7 mA Release voltage1 V1 V1 V Input internal resistor320 Ω1070 Ω3000 Ω GENERAL CHARACTERISTICS Operating temperature range-20C do +80аC Storage temperature range-40C do +100аC Input-output isolation4 KVrms, 1 minute (for input-output)Maximum soldering heat220C (10sec)Weight4 g Load voltage240 VACOperating voltage range12 - 280 VACPeak voltage(clamping voltage)600 VACNominal current2 ANon-repetitive...
Open the catalog to page 10RSR50DESCRIPTION TYPESD32-A0-24-400-0D32-A0-24-400-1D32-A1-24-400-0 D32-A1-24-400-1 Max. load current 40 A (rms)40 A (rms)Nominal load voltage240 VAC240 VAC240 VAC240 VACLoad voltage range24 - 280 VAC24 - 280 VAC24 - 280 VAC24 - 280 VAC Non-repetitive Max. peak voltage600 VAC600 VAC600 VAC600 VAC Non-repetitive Max. peak current315 A Max. off-state leakage current7 mAOn state voltage drop1.8 VMin. load current 100 mAMax. off-state slew rate (dv/dt)250 V/s Operating frequency range47 Hz ~ 63 Hz INPUT CIRCUIT OUTPUT CIRCUIT LED indicateYESNO Control voltage range4 - 32 VDC3 - 32 VDC Control...
Open the catalog to page 17RSR50DESCRIPTION TYPESA28-A0-24-100-0A28-A1-24-100-0 INPUT CIRCUIT LED indicateYESNO Control voltage range50 - 280 VAC50 - 280 VAC Control current 15 mA Max.15 mA Max. Min. turn-off voltage40 VAC35 VACInput impedance106 KΩ Min.106 KΩ Min. Max. load current 10 A (rms)10 A (rms) Nominal load voltage240 VAC240 VACLoad voltage range24 - 280 VAC24 - 280 VACNon-repetitive Max. peak voltage600 VAC600 VAC Non-repetitive Max. peak current125 A Max. off-state leakage current1 mAOn state voltage drop1.6 VMin. load current 50 mAMax. off-state slew rate (dv/dt)250 V/s Operating frequency range47 Hz ~ 63...
Open the catalog to page 21RSR50DESCRIPTION TYPESA28-A0-24-250-0A28-A1-24-250-0 Max. load current 25 A (rms)25 A (rms)Nominal load voltage240 VAC240 VACLoad voltage range24 - 280 VAC24 - 280 VAC Non-repetitive Max. peak voltage600 VAC600 VAC Non-repetitive Max. peak current260 A Max. off-state leakage current7 mAOn state voltage drop1.6 VMin. load current 100 mAMax. off-state slew rate (dv/dt)250 V/s Operating frequency range47 Hz ~ 63 Hz INPUT CIRCUIT OUTPUT CIRCUIT LED indicateYESNO Control voltage range50 - 280 VAC50 - 280 VAC Control current 15 mA Max.15 mA Max.Min. turn-off voltage40 VAC35 VACInput impedance106...
Open the catalog to page 22This Returning Card originates from catalogues Solid State RelaysӔ 08/2005 >
