Semi-automatic horizontal strapping machine

Product catalog summary

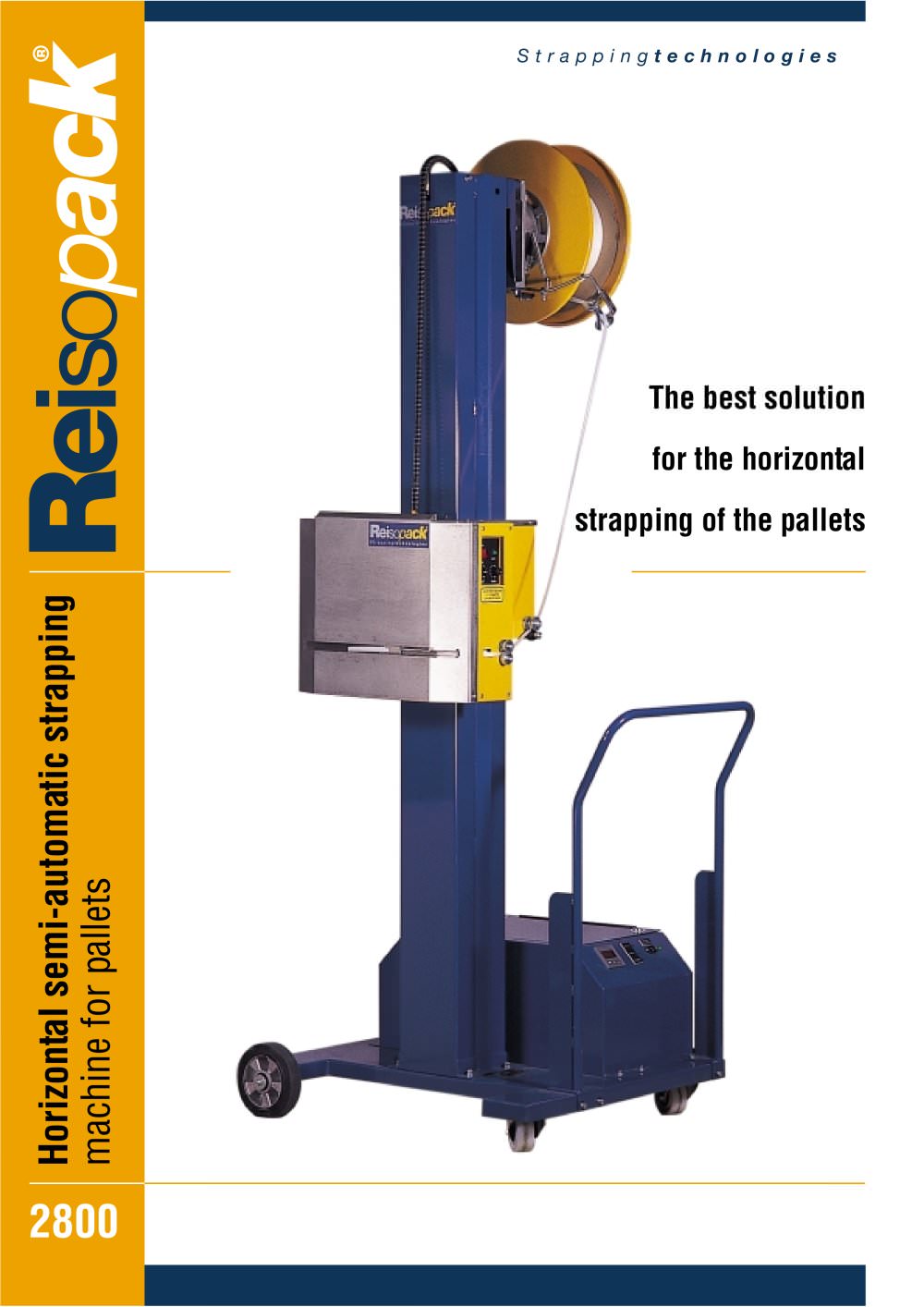

Overview: The document describes the features and specifications of the horizontal semi-automatic strapping machine for pallets, model 2800, designed by Reisopack S.L. It highlights the machine's ease of use, quality components, and operational efficiency.

Specifications:

Voltage: 220 V / 240 V, 50 / 60 Hz, Single phase.
Electrical Consumption: 1 Kw.
Production Capacity: Approximately 20-30 pallets per hour.
Battery Duration: 600 straps.
Packaging Dimensions: Two packages weighing 350 Kg, dimensions 110 x 110 x 84 cm and 245 x 78 x 65 cm.

Technical Specifications:

Strap Width: 6-8-12-15.5 mm (factory set).
Strap Thickness: 0.50-0.85 mm.
Heating System: Electrical heating with adjustable temperature and cooling time.
Options: Battery including recharge system.

Features:

Easy to use, can be placed beside the stacked pallet.
Battery operation is optional.
Aluminium head set and tension roller for durability.
Electronically adjustable tension via magnetic clutch.
Manually adjustable strapping height from 17 cm to 2 m.
Facilitates edge protector placement during first strapping.
Over 300 machines in use since 1994, primarily in fruit and vegetable warehouses.

Additional Information: The machine stabilizes the pallet before moving the load and assists in edge protector placement. The manufacturer reserves the right to make modifications without prior notice.
