CG400 - CRYO-FLOW Products
CG400 - CRYO-FLOW Products
This catalog provides an overview of Rego® Industrial Gas and Cryogenic Equipment, highlighting new products and updates as of August 2007. Users are advised to ensure proper application, installation, and maintenance of the products.
Products previously used with other gases should not be used for oxygen service. Users must verify material compatibility for specific applications.
Rego suggests materials based on technical compatibility, but users must test under their own conditions to ensure suitability.
Products are cleaned according to ASTM-G93 and CGA G-4.1 standards. System designers must verify material compatibility for oxygen service.
These valves are used in cylinder filling panels and high-pressure systems, featuring a 4200 psig maximum working pressure and a non-rising stem design.
Used in hospital and industrial piping systems, these valves are UL listed and feature a diaphragm stem seal and resilient seat disc.
Various series are available for cryogenic and gas systems, each with specific applications and features.
Includes brass pipe plugs, pressure gauges, and repair kits for valves and regulators.
General valves are UL listed and approved for oxygen and fuel gas services. The CW6900 Series incorporates a built-in gauge for pressure indication. Extended Bonnet Cryogenic Globe Valves and Extended Stem Cryogenic Valves are designed for cryogenic liquids.
General valves have a brass body and neoprene O-ring. The CW6900 Series features a brass and chrome whitened body.
Detailed ordering information is provided for each series, including part numbers and dimensions.
Valves are used in gas stations, hospital rooms, cryogenic tanks, and pipelines.
For safety, select gauges where the system's maximum working pressure is 66% to 75% of the gauge's maximum reading.
These kits convert short stem shut-off valves into extended stem styles and are oxygen cleaned per CGA G-4.1 standards.
Designed to secure CGA fittings on liquid cylinders, preventing unauthorized removal.
Utilize gas pressure in cryogenic cylinders to prevent atmospheric loss.
Maintain pressure in cryogenic containers, made from brass, PTFE, and stainless steel.
Combines pressure building and economizer functions, featuring a precision silver brazed assembly.
Designed for indoor applications to reduce noise, featuring a bubble-tight seal.
Models PRV 19432 and PRV 29432 have specific inlet sizes and dimensions.
Designed for secondary relief in CO2 transports and storage tanks.
Suitable for oxygen and non-corrosive gases, providing moderate pressure relief.
Designed for medical oxygen systems, maintaining steady downstream pressure.
Engineered Controls International, Inc. provides a limited warranty, disclaiming other express or implied warranties. The company's liability is limited to the purchase price of the products.
If technical advice is provided, the company is not liable for it, and the buyer assumes all risks associated with the advice.
Products require periodic inspection and maintenance to prevent injury and damage.
The limited warranty applies to first purchasers, and users must notify distributors of defects within 30 days.
The company reserves the right to change product designs, materials, or specifications without notice.
Certain product categories have received PED certification from Lloyd’s Registry of Shipping.
Most products are registered with the Canadian Department of Labor.
Engineered Controls International, Inc. is located in Burlington, NC, USA.
Catalog excerpts

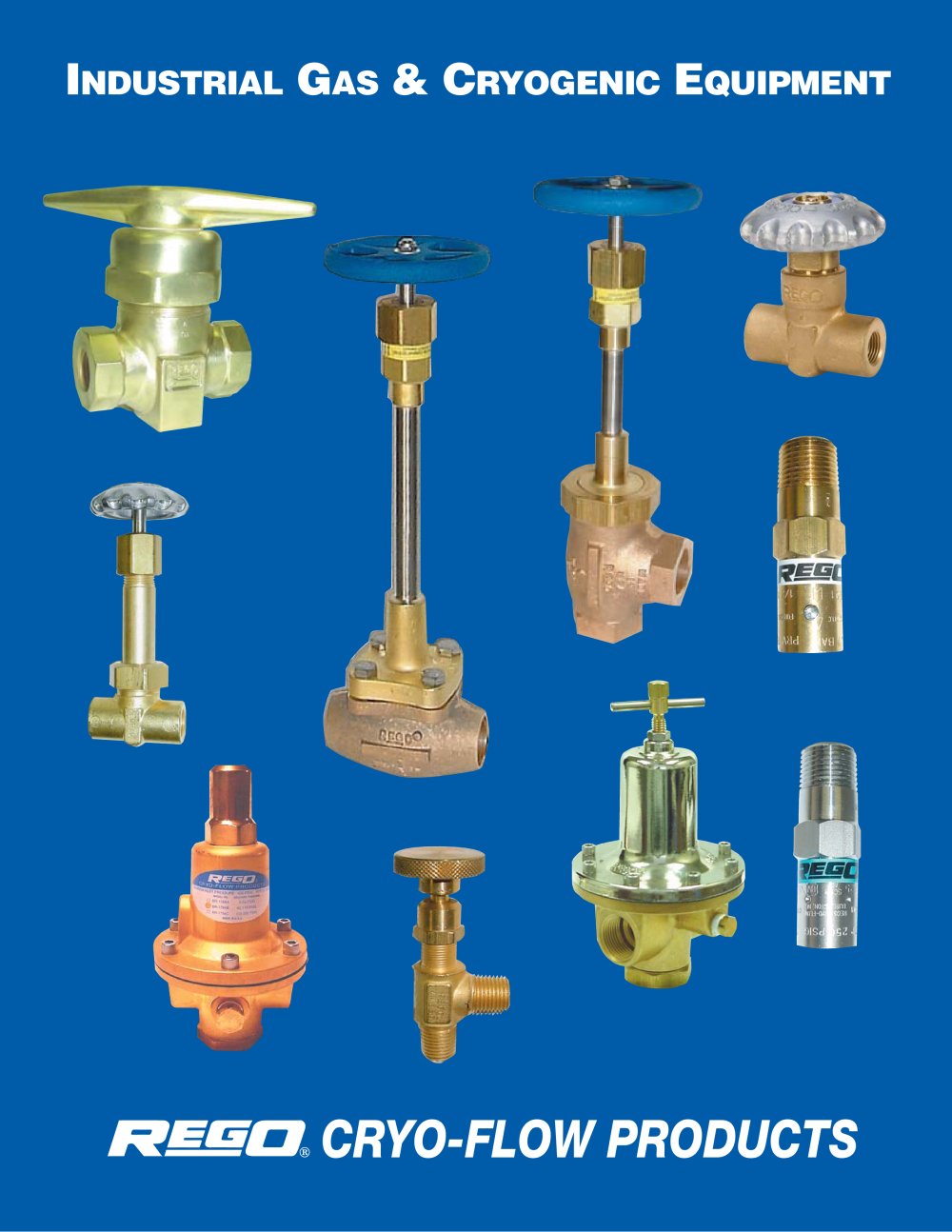

I > NDUSTRIAL G > AS & C > RYOGENIC E > QUIPMENT
Open the catalog to page 1
9560A9560CA > 1 ⁄ > 2 F. NPT > 1 ԢD > 2 F. NPT 9560B9560CB > 3 ԢD > 4 F. NPT > 3 ԢD > 4 F. NPT3.25Ԕ 9561R9561CR 1-11 > 1 ԢD > 2 NPSM R.H.1Ԕ-11 > 1 ⁄ > 2 R.H. Female Swivel4.36 9561RL9561CRL 1Ԕ-11 > 1 ⁄ > 2 NPSM R.H.1Ԕ-11 > 1 ⁄ > 2 NPS L.H. Female Swivel5.27 9561L9561CL 1Ԕ-11 > 1 ⁄ > 2 NPSM L.H.1-11 > 1 ԢD > 2 L.H. Female Swivel5.5 9563R9563CR 1Ԕ-11 > 1 ⁄ > 2 NPSM R.H. 1-11 > 1 ԢD > 2 NPSM R.H. 9563L9563CL 1-11 > 1 ԢD > 2 NPSM L.H.1-11 > 1 ԢD > 2 NPSM L.H.panel mount3.79 > Division of Engineered Controls International, Inc.
Open the catalog to page 5
The REGO-LOK > TM is designed for installation on the RegoT9450 and T9460 Series liquid cylinder valves to deter and prevent the removal of the CGA fitting from the valve. The REGO-LOK > TM retains standard CGA outlet connection fittingsso unauthorized persons do not remove the fitting. By use of a special one-way bolt, the REGO-LOK > TM is secured to the valve.The REGO-LOK > TM installs in a few minutes with the use ofscrewdrivers. REGO-LOK > TM installs without valve disassembly,brazing, welding, or drilling. The REGO-LOK > TM deters andprevents fitting removal by gas customers, however allows...
Open the catalog to page 18
Application The new REGO LCR Series regulator assembly controls thepressure from the gas use line discharge of any liquid cylinderwith a flow capacity at least double the vaporization capacityof the cylinder vaporization coil. For use with oxygen, nitrogen, argon, or carbon dioxide liquid cylinders. Features Maximum Inlet Pressure: 550 psig ՕTemperature Range: -320 F to 165аFBrass Body and DiaphragmՕPTFE Seat Stainless Steel Springs, Adjusting Screw and Nut Օ1/4 Female NPT Outlet ԕCGA fitting inlet connection for ready hook-up. Pressure Gauge for delivery pressure reading. ՕTwo delivery pressure...
Open the catalog to page 21
Flow Performance See the Rego Flow Performance Curves section of the catalog for more detailed flow curves. Dimensions The BR-1780 Series Regulators have inlet and outlet connection dimensions similar to thepopular 1680 Series aluminum regulators. This means that you can replace the respectivesize 1680 Series regulator with the new BR-1780 Series regulator and have the improved performance and premium features available on the BR-1780 SeriesFor Carbon Dioxide or Nitrous Oxide Service, add EӔ to end of part number. Part Number Delivery PressurePressure Gauge*Inlet & OutletDimensionsC Range Range...
Open the catalog to page 28
NOTICE TO USERS OF PRODUCTS The Limited Warranty stated above is a factory warranty to the first purchasers of Engineered Controls International, Inc. products. Since most users have purchased these products from Engineered Controls International, Inc. distributors, the user must within thirty (30) days after the users discovery of what user believes is a defect, notify in writing the distributor from whom he purchased the product/parts. The distributor may or may not at the distributorҒs option, choose to submit the product/parts to Engineered Controls International, Inc. pursuant to its Limited...
Open the catalog to page 40
3181 Lear Drive Burlington, NC 27215 USA Phone (336) 226-3244 Fax (336) 227-6294 e-mail: [email protected] Catalog CG-400A Printed In U.S.A. 05-0703-400 On the web at: www.regoproducts.com/cryoflow >
