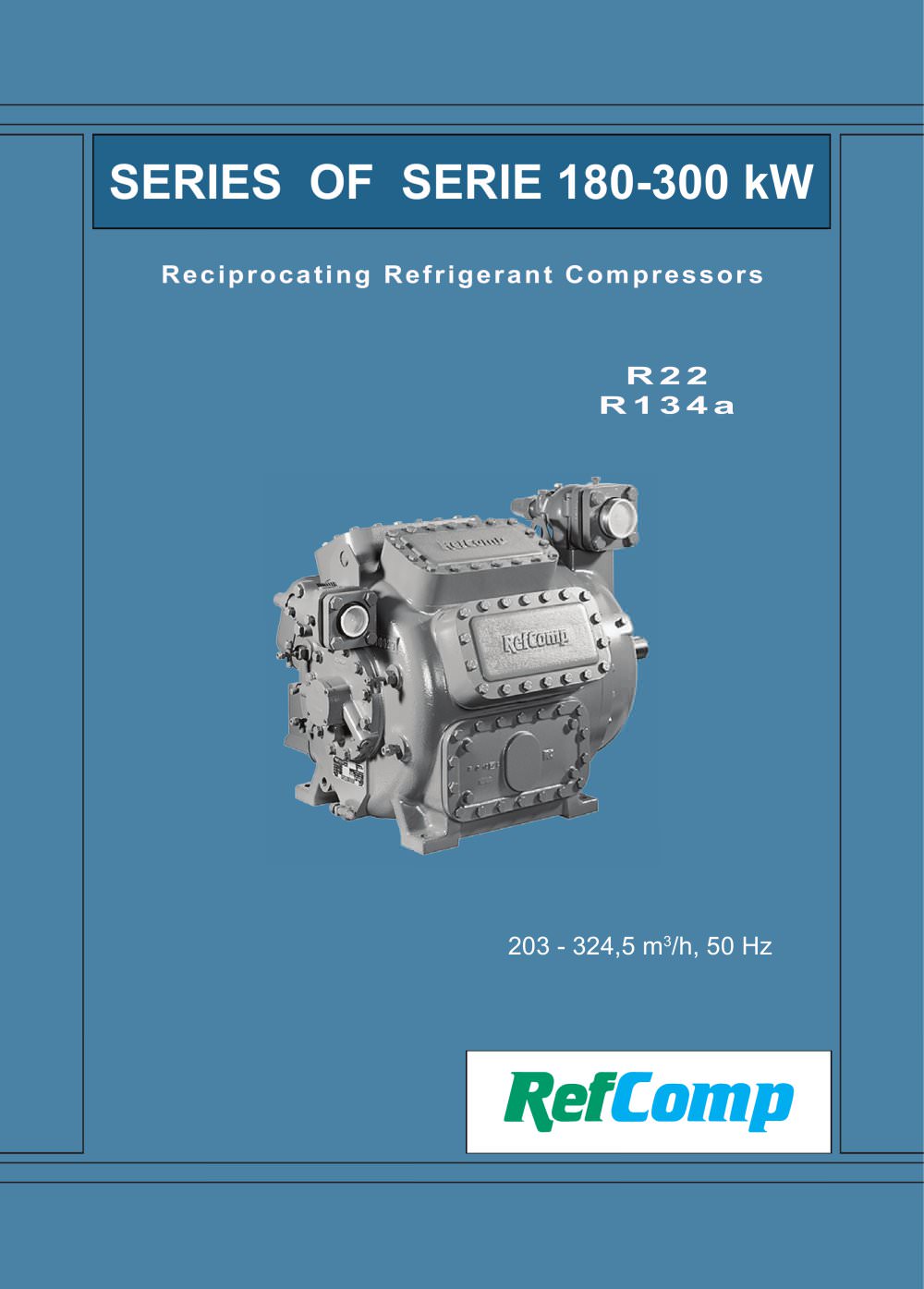

SERIES OF SERIE 180-300 kW Reciprocating Refrigerant Compressors

BENEFITS PUNTI DI FORZA TRADITION AND INNOVATION TRADIZIONE E INNOVAZIONE These compressors are designed to operate at 1450 and 1750 rpm. They cover a capacity range from 180 to 300 kW: four models for open version. Our methods of design and construction, together with the strictest manufacturing tests, have enabled us to assure all the following: □ High performance, resulting from volumetric and compression efficiency. □ High reliability, long-working life, efficient service and low operation costs. □ Quiet running: careful balancing of the moving mechanical parts ensures a minimum of vibration...

FEATURES CARATTERISTICHE Technical data Caratteristiche tecniche Casting: casting is constructed from high-tensile, closegrained, cast iron with stress relieving heat treatment. Carcassa: le fusioni sono in ghisa di elevata qualità ed alta resistenza, sottoposte a trattamento di distensione. Crankshaft: forget steel, statically and dynamically balanced. Albero a gomiti: in acciaio forgiato, staticamente e dinamicamente bilanciato. Capacity control: this consists of a capacity control system which controls compressor capacity by activation an unloading mechanism set on cylinders. It is oil pressure...

EXTENT OF DELIVERY FORNITURA Capacity control The OF series compressors may be delivered together with a certain number of capacity control steps according to the following logic. The capacity control consists of a capacity control system which controls compressor capacity by activation an unloading mechanism set on cylinders. It is oil pressure activated through solenoid valves (externally mounted) witch turn on and off the oil pressure supply to load or unload the cylinders in response to an external thermostat (provided by others). Compressor always starts at minimum capacity, meaning that...

EXTENT OF DELIVERY FORNITURA “HFC” refrigerants & “POE” lubricants The compressors can operate with both HCFC (R22 chlorinated refrigerant) and HFC (R134a chlorine-free refrigerant). Only the charged lubricant varies according to the refrigerant type. Polyol ester oils (POE) are recommended with chlorinefree refrigerants (HFC). However, the high degree of hygroscopicity of the POE oils demands for particular cautions: these oils must not come in contact with air and the moisture content in the circuit has to be maintained, as a general rule, under 50 ppm. I compressori sono costruiti in versione...

TECHNICAL DATA TABLE DATI TECNICI Model / Modello Weight Peso Oil charge Carica olio Displacement at 1450 rpm Cilindrata oraria a 1450 giri/1’ N° of cylinders N° di cilindri Crankcase heater Resistenza carter Discharge line, internal Ø Raccordo mandata, Ø interno Suction line, internal Ø Raccordo aspirazione, Ø interno Capacity control steps Modulazione capacità Moment of inertia Momento di inerzia Compressor type - Tipo compressore Open type compressor (direct drive) Compressore aperto (trascinamento diretto) Reciprocating compressor / compressore a pistoni Given cooling capacity (kW) - 1450...

TECHNICAL DRAWINGS DISEGNI TECNICI MODELS MODELLI 1) Oil charging 3/4” NPT 2) Oil drain 3/8” S.A.E. - FLARE 3) Crankcase heater 1/2” NPT 4) Oil level sight glass 5) Hight pressure 1/4” S.A.E. - FLARE 6) Low pressure 1/4” S.A.E. - FLARE 7) Oil pressure 1/4” S.A.E. - FLARE 8) End cover oil drain 1/4” NPT 9) Low pressure 1/8” NPT 10) Solenoid valves DL) Discharge shut off valve SL) Suction shut off valve 1) Tappo carica olio 3/4” NPT 2) Scarico olio 3/8” S.A.E. - FLARE 3) Resistenza carter 1/2” NPT 4) Spia olio 5) Alta pressione 1/4” S.A.E. - FLARE 6) Bassa pressione 1/4” S.A.E. - FLARE 7) Pressione...

R22 PERFORMANCE DATA PRESTAZIONI R22 ORC-F-226 Tc

R22 PERFORMANCE DATA PRESTAZIONI R22 ORC-F-300 Tc KEY / LEGENDA Pf = cooling capacity / potenza frigorifera resa (kW) Pa = input power / potenza elettrica assorbita (kW) Te = evaporating temperature / temperatura di evaporazione (°C) Tc = condensing temperature / temperatura di condensazione (°C) Liquid subcooling / sottoraffreddamento liquido 5K Suction gas superheat / surriscaldamento gas aspirato 10K Data based on 1450 rpm / I valori sono riferiti a 1450 giri/1’ Apex “1” identifies working conditions which require additional cooling by liquid injection. / L’apice “1” identifica condizioni...

R134a PERFORMANCE DATA PRESTAZIONI R134a ORC-F-188 Tc

R134a PERFORMANCE DATA PRESTAZIONI R134a ORC-F-300 Tc KEY / LEGENDA Pf = cooling capacity / potenza frigorifera resa (kW) Pa = input power / potenza elettrica assorbita (kW) Te = evaporating temperature / temperatura di evaporazione (°C) Tc = condensing temperature / temperatura di condensazione (°C) Liquid subcooling / sottoraffreddamento liquido 5K Suction gas superheat / surriscaldamento gas aspirato 10K Data based on 1450 rpm / I valori sono riferiti a 1450 giri/1’ Apex “1” identifies working conditions which require additional cooling by liquid injection. / L’apice “1” identifica condizioni...

Data subject to change without any notice - Dati soggetti a cambiamento senza preavviso REFCOMP SPA - VIA E. FERMI 6 - 36045 LONIGO - VICENZA - ITALY - TEL. +39 0444 726726 - FAX +39 0444 436386 - WWW.REFCOMP.IT - [email protected] 12
