Catalogue SERIES 134-IS

Product catalog summary

Compressor Specifications:
The document details a semi-hermetic refrigerant compressor optimized for R134a, featuring inverter capacity regulation. It includes built-in volumetric ratios with standard and optional configurations. The nominal motor power is specified at 70 Hz.

Model Specifications:
Various models are listed with nominal power ranging from 100 to 420 Hp. Displacement at 70 Hz varies from 378 to 1540 m3/h. Weight, oil charge, and connection sizes are specified for each model.

Electrical and Mechanical Features:
The compressor power supply is compatible with 400 V/3/50 Hz and 460 V/3/60 Hz. Inverter insulation is rated at IP 54. Terminal screw sizes and full load amperage (FLA) are provided for different models.

Performance Data:
Performance metrics are provided for different models at varying frequencies (30 Hz, 50 Hz, 70 Hz) and conditions (T_ev = 2°C, T_cond = 50°C and T_ev = 5°C, T_cond = 38°C). Metrics include cooling capacity (Q0), power absorbed (Pa), and coefficient of performance (COP).

Additional Features:
The document highlights the absence of starting currents, reducing electrical wiring needs. It also lists various connections and components such as suction and discharge lines, oil charge/drain valves, and temperature sensors.

Catalog excerpts

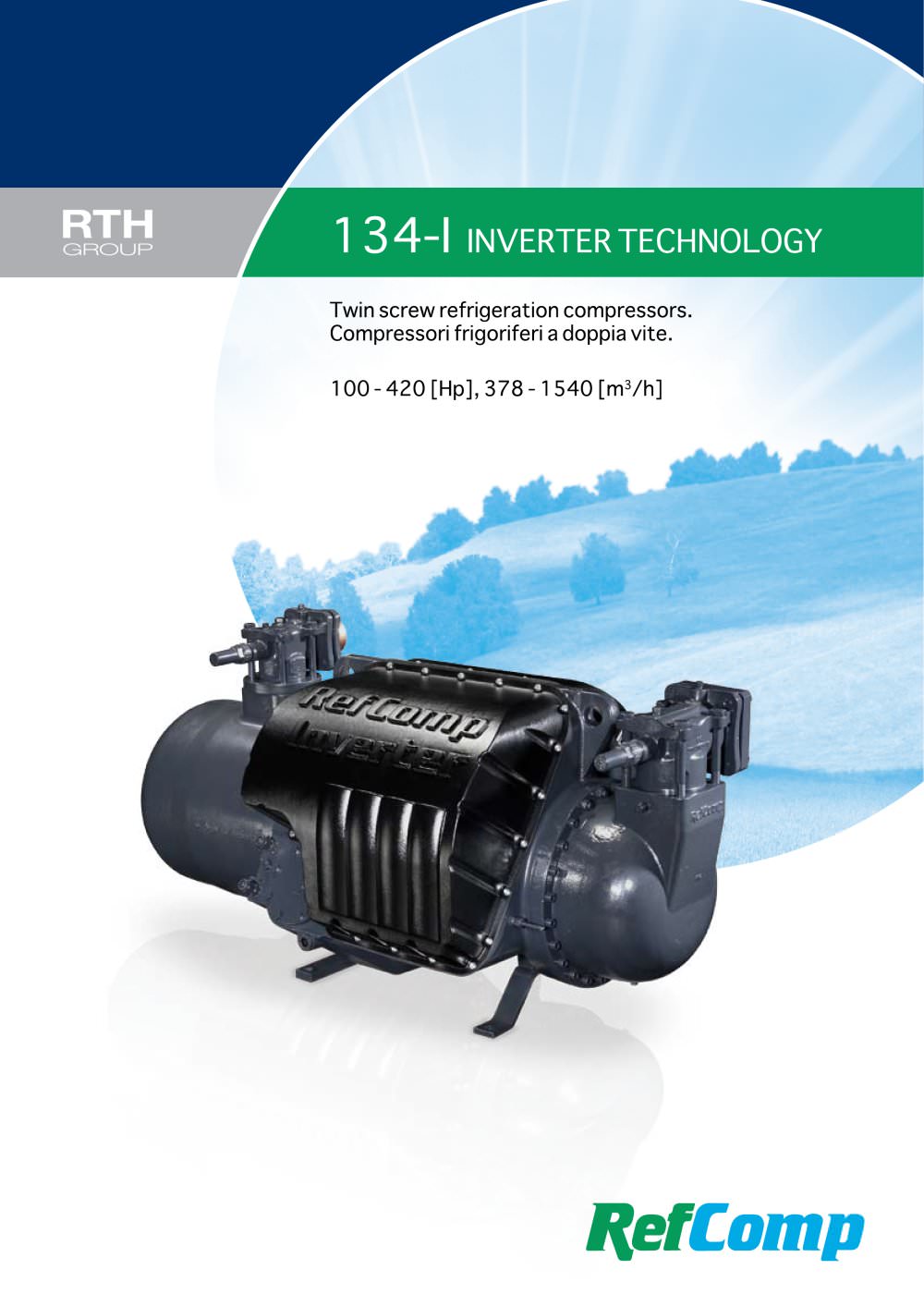

Twin screw rfrigration compressors. Compressori frigoriferi a doppia vite. 100 - 420 [Hp], 378 -1 540 [mVh] RefComp

Open the catalog to page 1

2 134-I 3 COMPRESSOR - COMPRESSORE 134 I S 220 COMPRESSOR TYPE / TIPO COMPRESSORE 134 Semi-hermetic Refrigerant Compressor optimized for R134a Compressore frigorifero semi-ermetico ottimizzato per R134a SERIES - SERIE I Inverter capacity regulation Regolazione della capacità tramite inverter BUILT IN VOLUMETRIC RATIO Vi RAPPORTO VOLUMETRICO INTRINSECO Vi S Vi = 3,2 (standard) A Vi = 2,2 (optional) V Vi variabile 2,2 - 2,6 - 3,2 - 4,4 (optional) 220 Nominal motor power at 70 [Hz] [Hp] Potenza nominale del motore a 70 [Hz] [Hp] *

Open the catalog to page 2

8 134-I 9 NO STARTING CURRENTS 0 A against the 500-600 A of a conventional screw compressor equal size, allowing a reduction of electrical wiring. ASSENZA CORRENTI DI SPUNTO 0 A contro i 500-600 A di un compressore a vite tradizionale di pari taglia, consentendo un ridimensionamento dei cablaggi elettrici.

Open the catalog to page 5

16 17 1 Suction line Linea d’aspirazione 2 Discharge line Linea di scarico 3 Oil charge/drain valve 3/8” SAE-Flare Rubinetto carico/scarico olio 3/8 ” SAE Flare 4 Oil cooling connections ½” SAE Flare Connessioni raffreddamento olio ½” SAE- Flare 5 Oil pressure connection ¼” SAE Flare Pressione olio ¼” Flare 6 Oil sight glass Spia olio 7 Oil filter Filtro olio 8 Crankase heater Resistenza carter 9 Check valve Valvola di non ritorno 10 Electrical box Scatola morsettiera 11 Low pressure ¼” SAE Flare Bassa pressione ¼” SAE Flare 12 Capacity control solenoid valves Solenoidi di parzializzazione 13...

Open the catalog to page 9

oc m o HefComp 36045 Lonigo (VI) Italy - Via Fermi, 6 - Tel +39 0444 726726 - Fax +39 0444 436386 - www.refcomp.it - [email protected] THERMOKEY RTH GROUP I _J 50LARKEY
