The document provides detailed instructions for the Power Protection Seal, a safety device designed to fit most standard 13 amp sockets. It is crucial to verify compatibility with your specific socket before use.

Suitability
The seal is not suitable for outdoor use. Ensure a minimum 2.0mm gap between Edge A and the switch inside edge. For twin sockets, ensure adequate spacing between switches. If the socket does not meet these requirements, replacement is necessary.

Preparation
Ensure the socket surface is clean, grease-free, and dry before installation.

Marking Out
1. Insert the plug into the back plate apertures to locate it on the socket.
2. Ensure a 2.0mm gap between Edge A and the switch inside edge.
3. Mark lines along Edges A and B on the socket.

Attaching Back Plate to Socket
1. Remove the adhesive backing from the back plate.
2. Align Edges A and B with the guide lines on the socket.
3. Pivot the back plate until it attaches securely, ensuring apertures align with the socket.
4. Press firmly and allow 30 minutes for the adhesive to cure before engaging the plug and cover.

Attaching Plug Cover to Back Plate
1. Ensure the back plate is secure.
2. Insert the plug and press it flush against the back plate.
3. Fit the electric cable into the designated slot at the cover's bottom.
4. Attach the plug cover by inserting its feet into the back plate's slots.
5. Pivot the cover until the spring catch clicks into place.

Breaking the Seal
1. Pull the ring pull away from the socket face to apply pressure.
2. The seal will break under sufficient pressure, leaving the back plate as evidence of tampering or for replacement.

Catalog excerpts

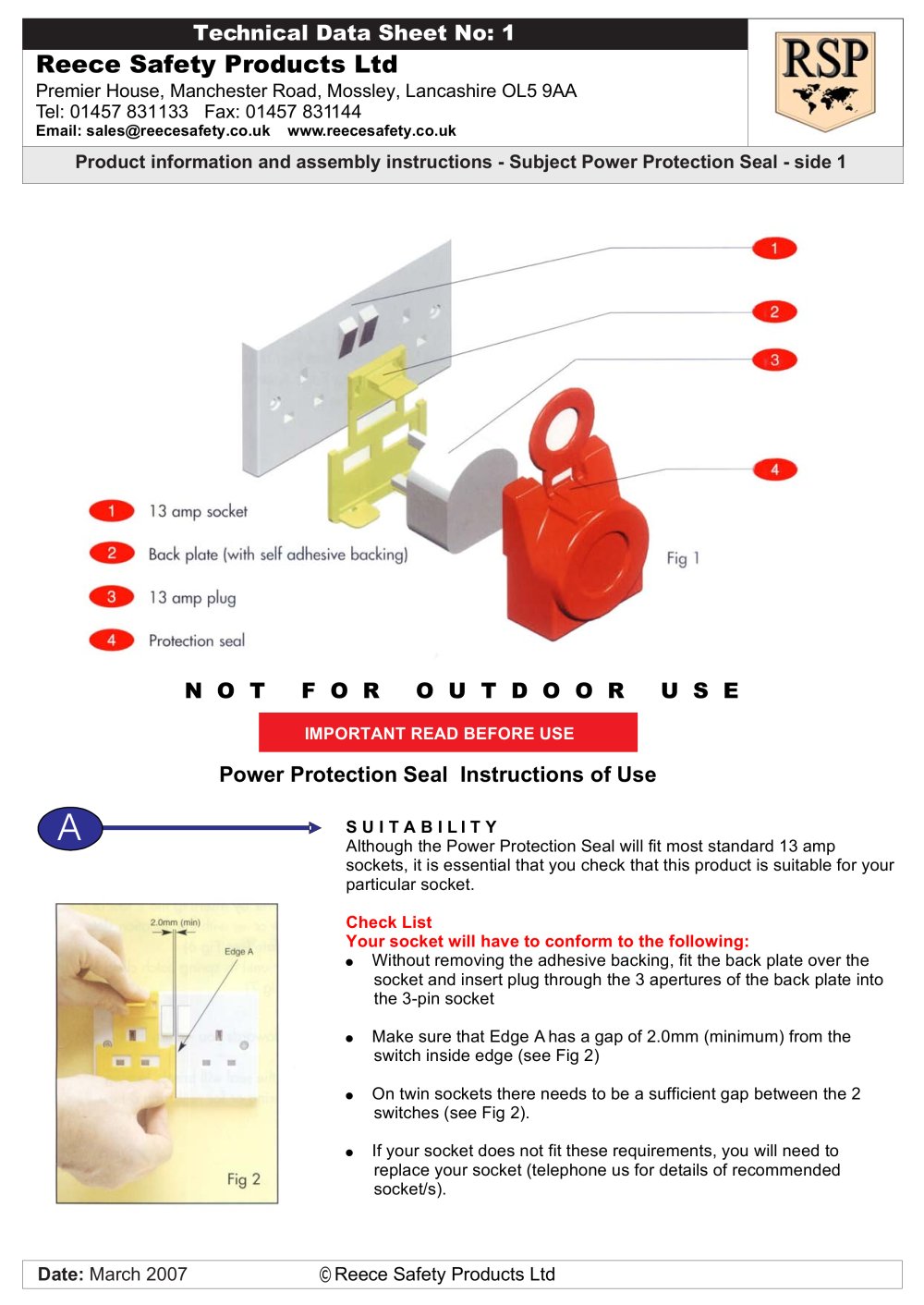

Reece Safety Products Ltd Premier House, Manchester Road, Mossley, Lancashire OL5 9AA Tel: 01457 831133 Fax: 01457 831144 Email: [email protected] www.reecesafety.co.uk Product information and assembly instructions - Subject Power Protection Seal - side 1 Technical Data Sheet No: 1 Date: March 2007 © Reece Safety Products Ltd IMPORTANT READ BEFORE USE Power Protection Seal Instructions of Use S U I T A B I L I T Y Although the Power Protection Seal will fit most standard 13 amp sockets, it is essential that you check that this product is suitable for your particular socket. ! Without removing the adhesive backing, fit the back plate over the socket and insert plug through the 3 apertures of the back plate into the 3-pin socket ! Make sure that Edge A has a gap of 2.0mm (minimum) from the switch inside edge (see Fig 2) ! On twin sockets there needs to be a sufficient gap between the 2 switches (see Fig 2). ! If your socket does not fit these requirements, you will need to replace your socket (telephone us for details of recommended socket/s). Check List Your socket will have to conform to the following: N O T F O R O U T D O O R U S E A
