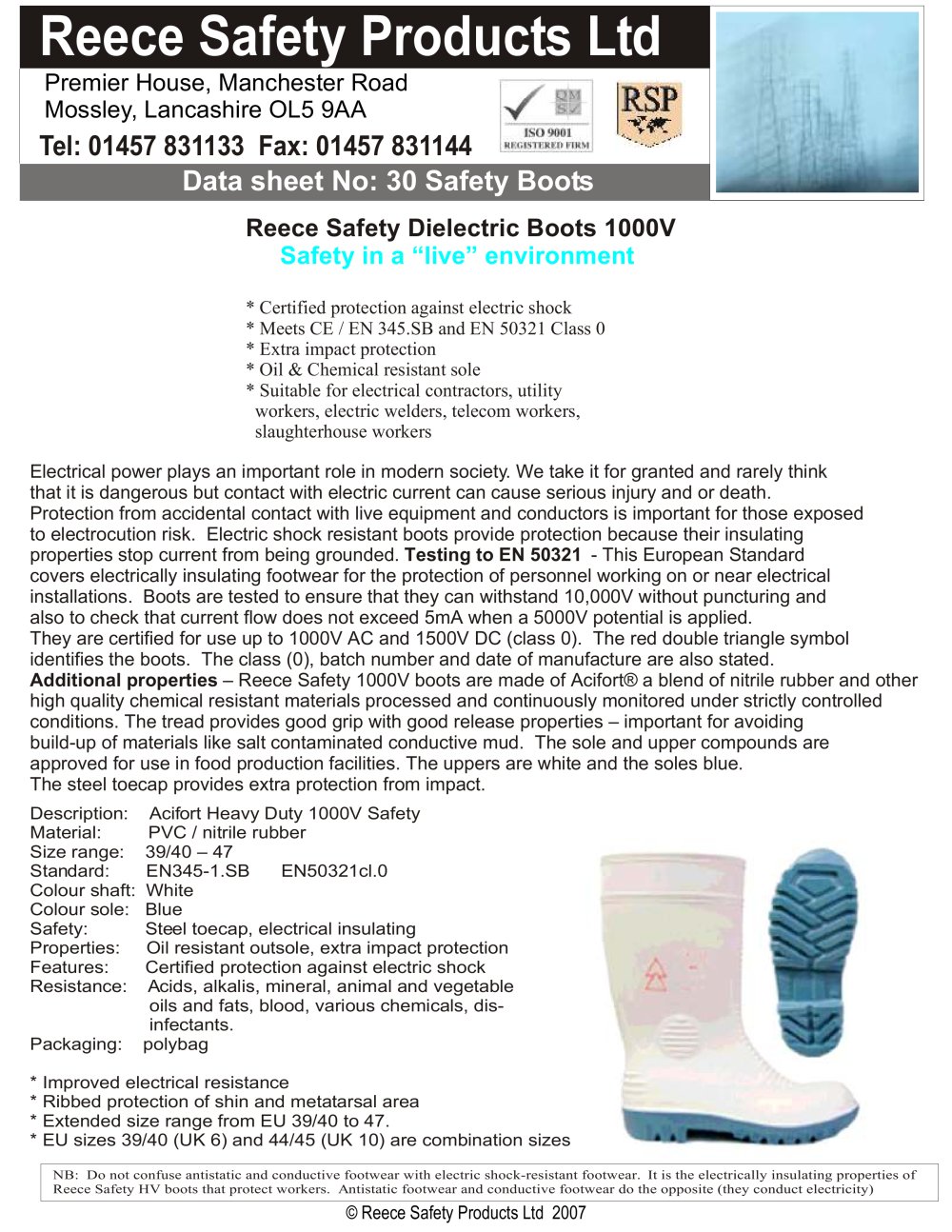

Reece Safety Products Ltd Tel: 01457 831133 Fax: 01457 831144 Data sheet No: 30 Safety Boots Premier House, Manchester Road Mossley, Lancashire OL5 9AA © Reece Safety Products Ltd 2007 Reece Safety Dielectric Boots 1000V * Certified protection against electric shock * Meets CE / EN 345.SB and EN 50321 Class 0 * Extra impact protection * Oil & Chemical resistant sole * Suitable for electrical contractors, utility workers, electric welders, telecom workers, slaughterhouse workers Safety in a “live” environment Electrical power plays an important role in modern society. We take it for granted and rarely think that it is dangerous but contact with electric current can cause serious injury and or death. Protection from accidental contact with live equipment and conductors is important for those exposed to electrocution risk. Electric shock resistant boots provide protection because their insulating properties stop current from being grounded. Testing to EN 50321 - This European Standard covers electrically insulating footwear for the protection of personnel working on or near electrical installations. Boots are tested to ensure that they can withstand 10,000V without puncturing and also to check that current flow does not exceed 5mA when a 5000V potential is applied. They are certified for use up to 1000V AC and 1500V DC (class 0). The red double triangle symbol identifies the boots. The class (0), batch number and date of manufacture are also stated. Additional properties – Reece Safety 1000V boots are made of Acifort® a blend of nitrile rubber and other high quality chemical resistant materials processed and continuously monitored under strictly controlled conditions. The tread provides good grip with good release properties – important for avoiding build-up of materials like salt contaminated conductive mud. The sole and upper compounds are approved for use in food production facilities. The uppers are white and the soles blue. The steel toecap provides extra protection from impact. Description: Acifort Heavy Duty 1000V Safety Material: PVC / nitrile rubber Size range: 39/40 – 47 Standard: EN345-1.SB EN50321cl.0 Colour shaft: White Colour sole: Blue Safety: Steel toecap, electrical insulating Properties: Oil resistant outsole, extra impact protection Features: Certified protection against electric shock Resistance: Acids, alkalis, mineral, animal and vegetable oils and fats, blood, various chemicals, disinfectants. Packaging: polybag * Improved electrical resistance * Ribbed protection of shin and metatarsal area * Extended size range from EU 39/40 to 47. * EU sizes 39/40 (UK 6) and 44/45 (UK 10) are combination sizes NB: Do not confuse antistatic and conductive footwear with electric shock-resistant footwear. It is the electrically insulating properties of Reece Safety HV boots that protect workers. Antistatic footwear and conductive footwear do the opposite (they conduct electricity)
