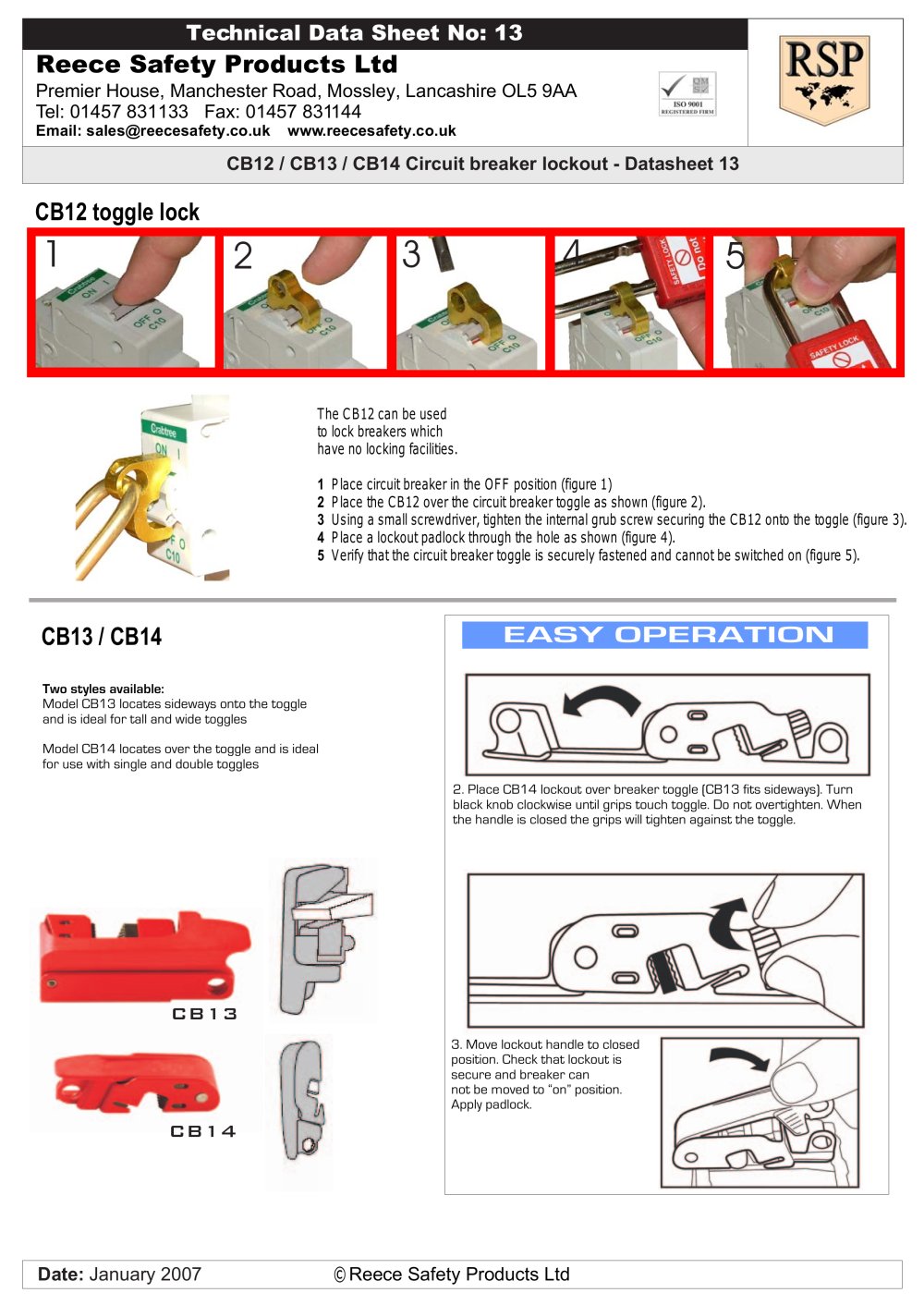

Reece Safety Products Ltd Premier House, Manchester Road, Mossley, Lancashire OL5 9AA Tel: 01457 831133 Fax: 01457 831144 Email: sales@reecesafety.co.uk www.reecesafety.co.uk Technical Data Sheet No: 13 Date: January 2007 © Reece Safety Products Ltd 2 3 4 5 The CB12 can be used to lock breakers which have no locking facilities. 1 Place circuit breaker in the OFF position (figure 1) 2 Place the CB12 over the circuit breaker toggle as shown (figure 2). 3 Using a small screwdriver, tighten the internal grub screw securing the CB12 onto the toggle (figure 3). 4 Place a lockout padlock through the hole as shown (figure 4). 5 Verify that the circuit breaker toggle is securely fastened and cannot be switched on (figure 5). CB12 / CB13 / CB14 Circuit breaker lockout - Datasheet 13 1 CB13 / CB14 CB12 toggle lock 2. Place CB14 lockout over breaker toggle (CB13 fits sideways). Turn black knob clockwise until grips touch toggle. Do not overtighten. When the handle is closed the grips will tighten against the toggle. 3. Move lockout handle to closed position. Check that lockout is secure and breaker can not be moved to “on” position. Apply padlock. EASY OPERATION Two styles available: Model CB13 locates sideways onto the toggle and is ideal for tall and wide toggles Model CB14 locates over the toggle and is ideal for use with single and double toggles CB13 CB14
