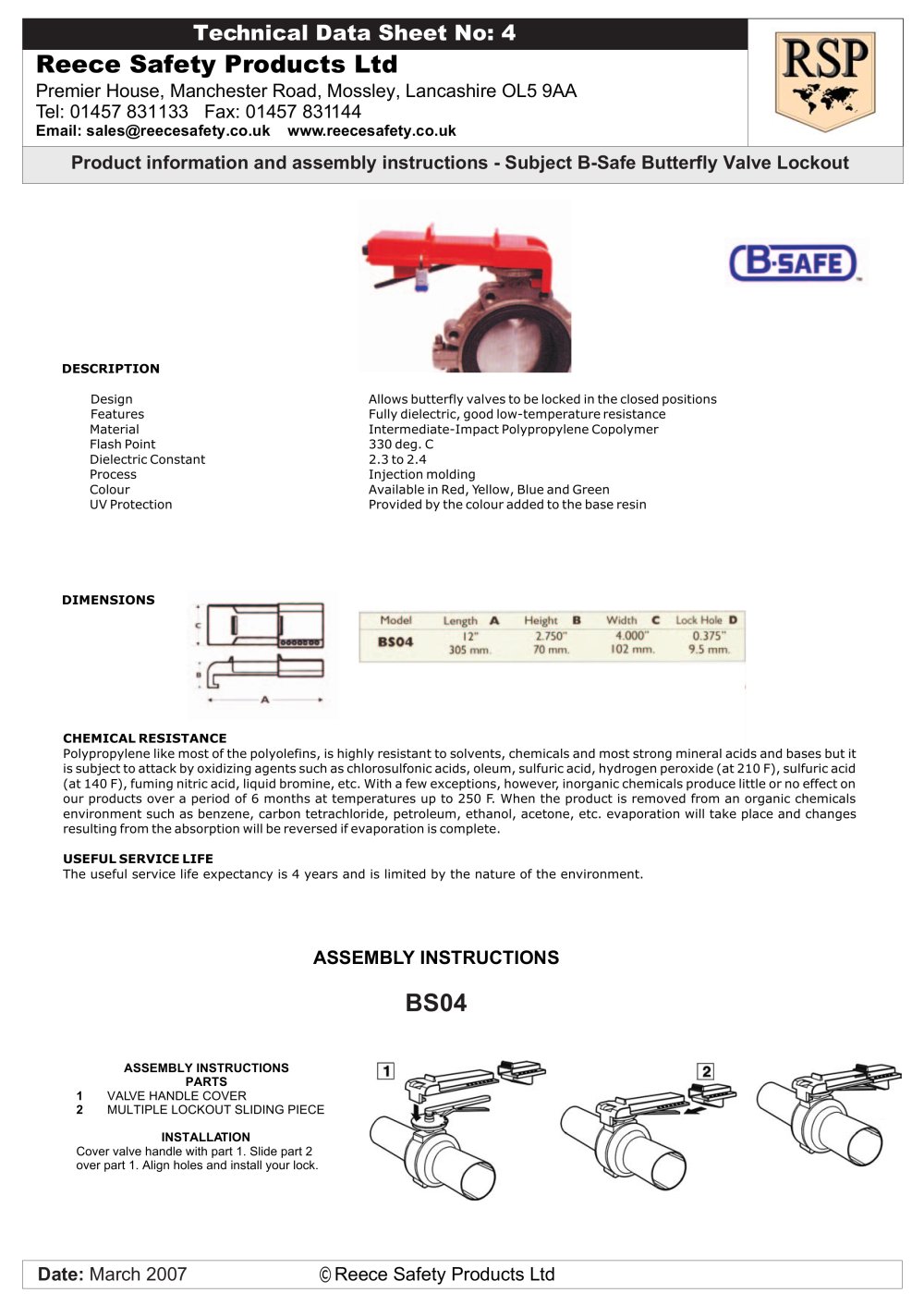

Reece Safety Products Ltd Premier House, Manchester Road, Mossley, Lancashire OL5 9AA Tel: 01457 831133 Fax: 01457 831144 Email: [email protected] www.reecesafety.co.uk Product information and assembly instructions - Subject B-Safe Butterfly Valve Lockout Technical Data Sheet No: 4 DESCRIPTION Design Allows butterfly valves to be locked in the closed positions Features Fully dielectric, good low-temperature resistance Material Intermediate-Impact Polypropylene Copolymer Flash Point 330 deg. C Dielectric Constant 2.3 to 2.4 Process Injection molding Colour Available in Red, Yellow, Blue and Green UV Protection Provided by the colour added to the base resin DIMENSIONS Date: March 2007 © Reece Safety Products Ltd ASSEMBLY INSTRUCTIONS BS04 ASSEMBLY INSTRUCTIONS PARTS 1 VALVE HANDLE COVER 2 MULTIPLE LOCKOUT SLIDING PIECE INSTALLATION Cover valve handle with part 1. Slide part 2 over part 1. Align holes and install your lock. CHEMICAL RESISTANCE Polypropylene like most of the polyolefins, is highly resistant to solvents, chemicals and most strong mineral acids and bases but it is subject to attack by oxidizing agents such as chlorosulfonic acids, oleum, sulfuric acid, hydrogen peroxide (at 210 F), sulfuric acid (at 140 F), fuming nitric acid, liquid bromine, etc. With a few exceptions, however, inorganic chemicals produce little or no effect on our products over a period of 6 months at temperatures up to 250 F. When the product is removed from an organic chemicals environment such as benzene, carbon tetrachloride, petroleum, ethanol, acetone, etc. evaporation will take place and changes resulting from the absorption will be reversed if evaporation is complete. USEFUL SERVICE LIFE The useful service life expectancy is 4 years and is limited by the nature of the environment.
