T series HYDRAULIC motor driven hose reels
3Pages

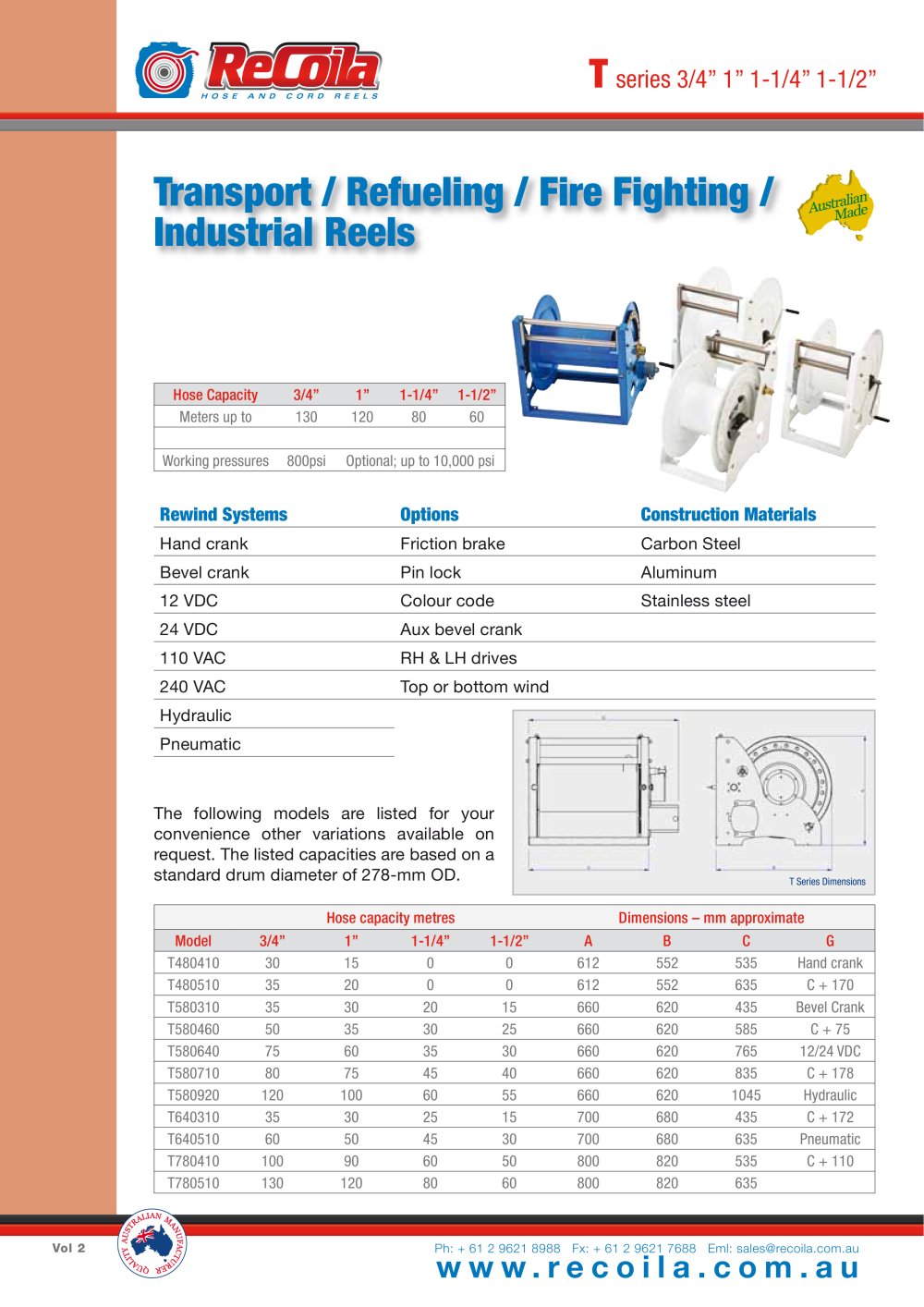

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Arial", sans-serif; } .font6 { font:13.00pt "Arial", sans-serif; } .font7 { font:19.00pt "Arial", sans-serif; } .font8 { font:24.00pt "Arial", sans-serif; } T sries 3/4" 1" 1-1/4" 1-1/2" Transport / Refueling / Fire Fighting / ^ Industrial Reels Hose Capacity 3/4" 1" 1-1/4" 1-1/2" Meters up to 130 120 80 60 Working pressures 800psi Option; il; up to 10,000 psi Rewind Systems Options Construction Materials Hand crank Friction brake Carbon Steel Bevel crank Pin lock Aluminum 12 VDC Colour code Stainless steel 24 VDC Aux bevel crank 110 VAC RH & LH drives 240 VAC Top or bottom wind Hydraulic Pneumatic The following models are listed for your convenience other variations available on request. The listed capacities are based on a standard drum diameter of 278-mm OD. T Series Dimensions Hose capacity metres Dimensions - mm approximate Model 3/4" 1" 1-1/4" 1-1/2" A B C G T480410 30 15 0 0 612 552 535 Hand crank T480510 35 20 635 C + 170 T580310 35 30 435 Bevel Crank T580460 50 35 25 660 620 585 C + 75 T580640 75 60 30 660 620 765 T580710 80 75 835 C + 178 T580920 120 100 1045 Hydraulic T640310 35 30 435 C + 172 T640510 60 50 30 700 635 Pneumatic T780410 100 90 60 50 800 820 535 C + 110 T780510 130 120 60 800 820 635 PH: + 61 2 9621 8988 Fx: + 61 2 9621 7688 Eml; sales@reooila.oom.au www.reooila.oom.au

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Arial", sans-serif; } .font6 { font:13.00pt "Arial", sans-serif; } .font7 { font:19.00pt "Arial", sans-serif; } .font8 { font:24.00pt "Arial", sans-serif; } T sries 1-1/2" 2" Transport / Refueling / Industrial Reels ^ Hose Capacity 1-1/2" 2" Meters up to 80 60 Working pressures 800psi Optional; up to...

The main axle is machine from stainless steel to maintain strength and rigidity while preventing corrosion. The T series can be con gured LH or RH drive, LH or RH inlet, Top wind and bottom wind allowing us to offer any number of con gurations to suit your applications. The unique design of the T series uid path allows for a gradual tangent between the hose and the uid path reducing hose stress and ow restrictions at the connection point while keeping the layering neat and tidy. > Another unique feature of the T series is the ability to engage and disengage the bevel crank drive, this...
