Recoila
Gen IV E - Electrical cord / cable reels

Gen IV E - Electrical cord / cable reels

Product catalog summary

Overview: The document provides detailed information about ReCoila's Gen IV series of composite construction reels, highlighting their design, functionality, and reliability. These reels are suitable for commercial and light-duty applications and are known for their innovative features and economical pricing.

Gen IV Series Features & Benefits: The Gen IV series includes a compact design, high-quality finished edge spring, full flow fluid paths for hose reels, a positive latching system for all positional mounting, a 12-month warranty, a unique slip ring design for electrical reels, UV-stabilized composite construction, a sliding swivel mounting bracket system, and parallel input hose/cable connection for a slimmer design.

GP Series: The GP series reels are designed for small to medium workshop applications where space is limited or short hose lengths are needed. They are ideal for service vans, under-bench setups, assembly lines, and home handyman use. The series includes models GP612, GP812, and GP1010, each with specific hose dimensions, pressure ratings, and fittings.

E Series: The E series reels are designed for safe storage of cables and cords to prevent damage and potential electrocution. They come with a 2-meter inlet cable with plugs and sockets. Models include E2401210 and E2401215, with specifications for cable length, cores, voltage, amperage, and weight.

L Series: The L series reels provide portable lighting solutions for workshops, panel shops, and maintenance applications. They include a 1.8-meter inlet cable with plugs and light. The model L24032610 is specified with cable length, cores, voltage, amperage, and weight. An inline transformer offers 32 VAC to the fluorescent light.

Additional Notes: The document mentions the availability of different thread types (NPT, JIC, JIS, Metric) and voltage options (110, 115, 220 VAC) upon request. The reels are manufactured to specific standards (AS3105 for E series and AS for L series).

Catalog excerpts

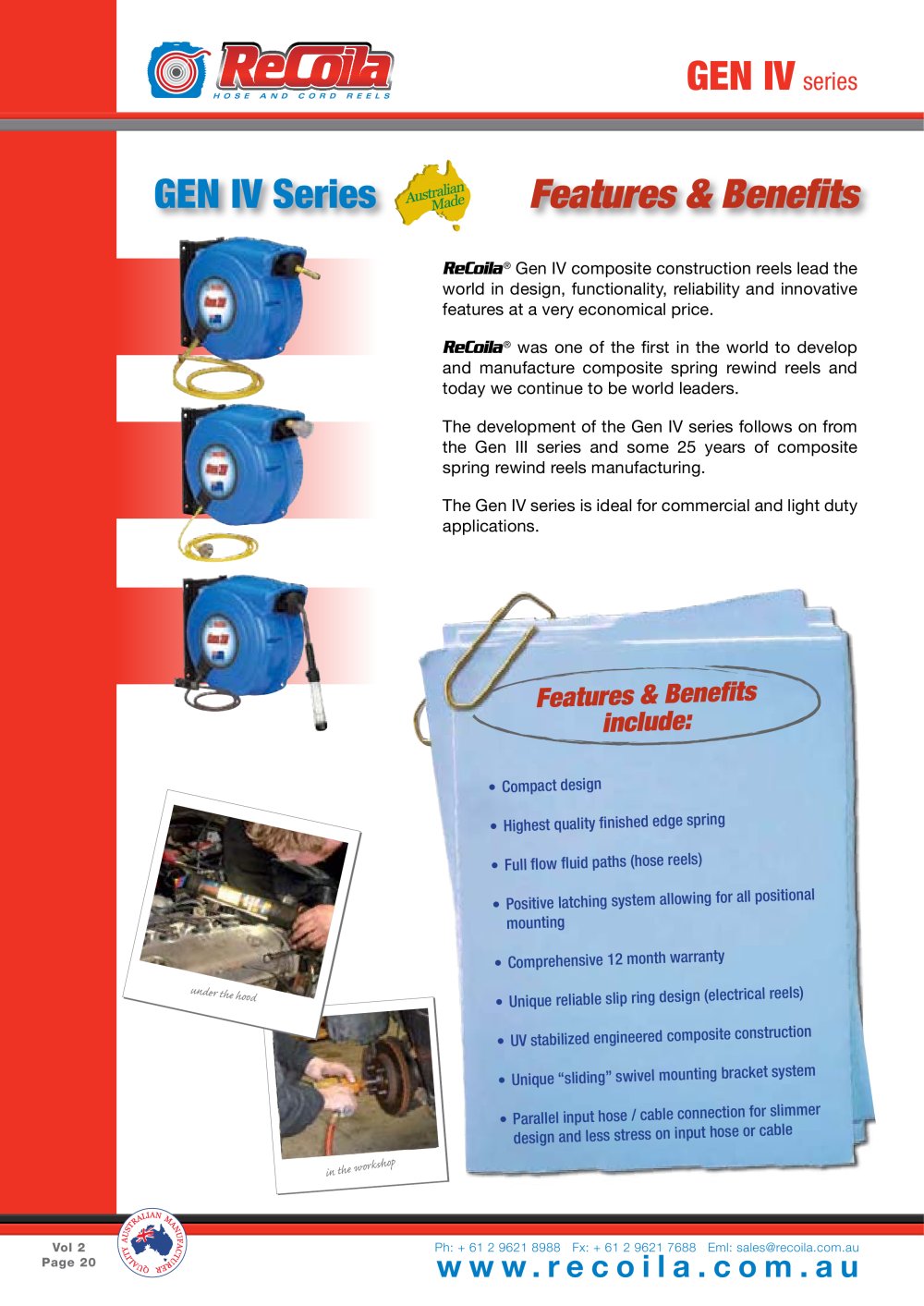

Gen IV E - Electrical cord / cable reels-1

GEN IV > series GEN IV Series Features & Benefits > ReCoila Gen IV composite construction reels lead the world in design, functionality, reliability and innovative features at a very economical price. ReCoila ή was one of the first in the world to develop and manufacture composite spring rewind reels and today we continue to be world leaders.The development of the Gen IV series follows on from the Gen III series and some 25 years of composite spring rewind reels manufacturing.The Gen IV series is ideal for commercial and light duty applications. Features & Benefitsinclude: Compact designՕ Highest quality finished edge spring Full flow fluid paths (hose reels) Օ Positive latching system allowing for all positional mounting Comprehensive 12 month warranty Օ Unique reliable slip ring design (electrical reels) UV stabilized engineered composite construction Օ Unique slidingӔ swivel mounting bracket system Parallel input hose / cable connection for slimmer design and less stress on input hose or cable ndr t ho t rho Vol 2Page 20 Ph: + 61 2 9621 8988 Fx: + 61 2 9621 7688 Eml: [email protected] www.recoila.com.au size="-1">

Open the catalog to page 1

Gen IV E - Electrical cord / cable reels-2

ModelHose IDHose LengthMax PSIInlet FittingOutlet FittingTemp RangeWeightGP6126-mm12-m2403/8Δ BSPF1/4 BSPM-5/+65 > C7.5KgGP8128-mm12-m2403/8Ԕ BSPF3/8 BSPM-5/+65 > C7.5KgGP101010-mm10-m2403/8Ԕ BSPF3/8 BSPM-5/+65 > C7.5Kg*all reel supplied with 1.5m inlet hose > GP Series Dimensions Note:NPT, JIC, JIS, Metric threads are available. Maximum hose ratings are based at 30 > O C. > Ph: + 61 2 9621 8988 Fx: + 61 2 9621 7688 Eml: [email protected] Vol 2Page 21

Open the catalog to page 2

Gen IV E - Electrical cord / cable reels-3

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:15.20pt "Arial", sans-serif; } .font5 { font:19.00pt "Arial", sans-serif; } .font6 { font:24.00pt "Arial", sans-serif; } .font7 { font:15.00pt "Microsoft Sans Serif", sans-serif; } .font8 { font:5.00pt "Times New Roman", serif; } ma HOSE AND CORD REEL: E sries Gable & Gord Rels ReCaila® Gen IV E s驩ries reels are the perfect solution to ensuring cables and...

Open the catalog to page 3

Gen IV E - Electrical cord / cable reels-4

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:19.00pt "Arial", sans-serif; } .font5 { font:24.00pt "Arial", sans-serif; } .font6 { font:24.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:37.00pt "Microsoft Sans Serif", sans-serif; } .font8 { font:4.00pt "Tahoma", sans-serif; } .font9 { font:5.00pt "Times New Roman", serif; } ReBil HOSE AND CORD REELS L sries Light Cord Reels ReCoila® Gen...

Open the catalog to page 4
