AW series

Product catalog summary

Overview: The document provides technical specifications and features of ReCoila's Gen III AW series air and water reels, designed for general workshop applications such as compressed air and cold water washdown.

Specifications: The AW series includes models with varying hose diameters (8-mm, 10-mm, 12-mm) and lengths (10-m to 20-m). All models have a maximum pressure rating of 240 PSI and operate within a temperature range of -5 to +65°C. The reels are equipped with BSPF and BSPM fittings.

Heavy Duty Model: The AWHD1210 model is specifically designed for air applications in fabrication areas, featuring an EPDM rubber hose to withstand welding spatter.

GEN III Series Features: The GEN III series reels offer a range of benefits including a 5-year warranty, high-quality spring steel strip, full flow brass swivels, positive crimp hose fittings, and a robust polypropylene construction with anti-static and flame retardant properties. Additional features include a unique ratchet tensioning system, heavy-duty wall mounting, replaceable protective mouth guard, and food-grade approved materials.

Additional Features: The reels come with a detailed operation and service manual, an easy mount drill hole pattern, and a unique service locking pin port for added safety.

Catalog excerpts

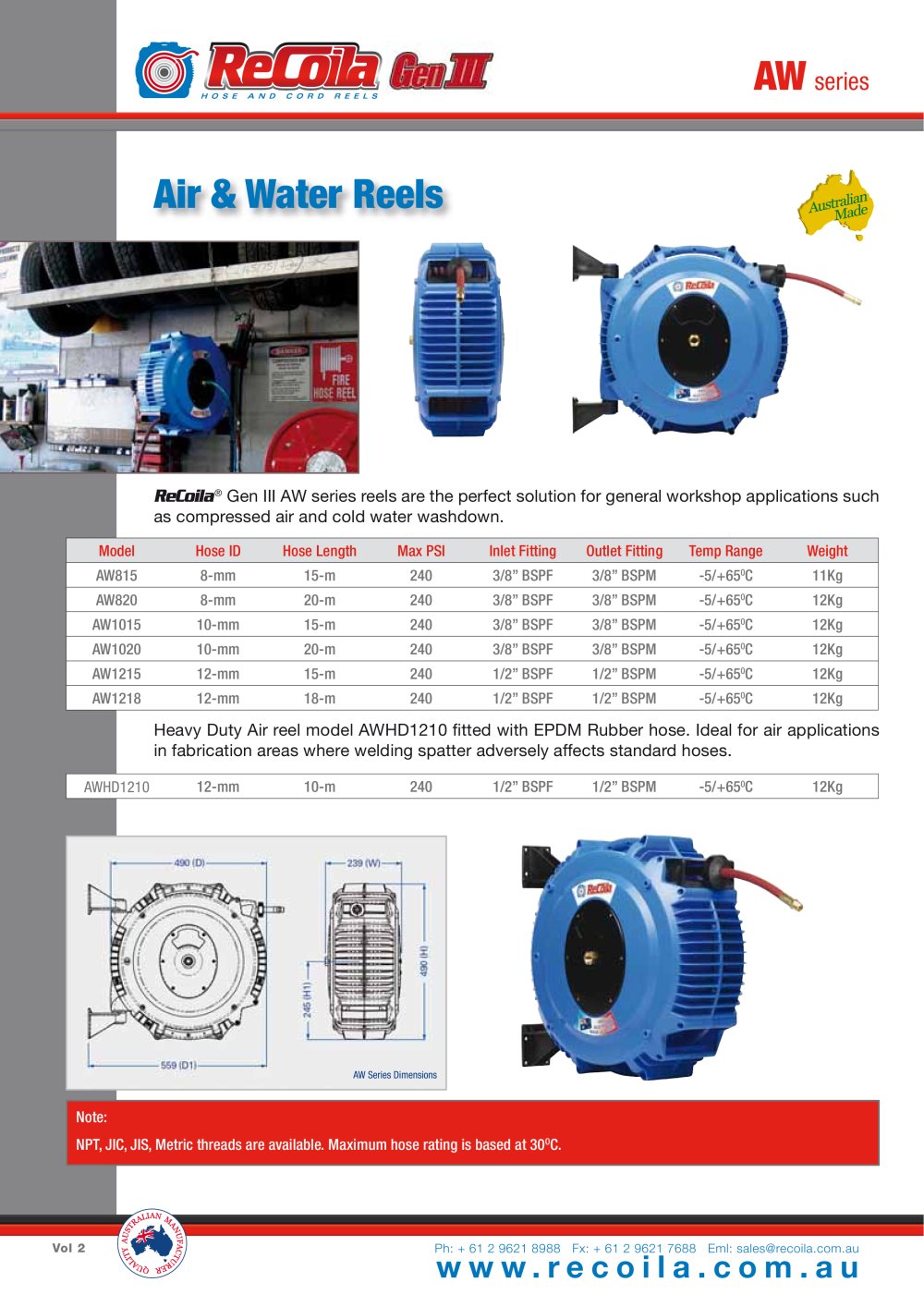

AWHD1210 12-mm10-m2401/2Ԕ BSPF1/2 BSPM-5/+65 > C12Kg > AW Series Dimensions Note:NPT, JIC, JIS, Metric threads are available. Maximum hose rating is based at 30 > O C. > Vol 2 Ph: + 61 2 9621 8988 Fx: + 61 2 9621 7688 Eml: [email protected]

Open the catalog to page 1

GEN III > series GEN III Series Features & Benefi ts > ReCoila Gen III composite construction reels lead the world in design, functionality, reliability and innovative features. ReCoila ή was one of the rst in the world to develop and manufacture composite spring rewind reels and today we continue to be world leaders. Features & Benefi tsinclude: Up to a 5 year warranty Օ Highest quality fi nished edgeђ Spring steel strip Full fl ow full DR brass swivels and fl uid pathsՕ Positive crimp hose fi ttings All position positive latching systemՕ Tough, impact, corrosion resistant and UV stabilized...

Open the catalog to page 2

AW series

AW series
