![LIN Extreme Environment Displacement Transducer - 1](https://img.directindustry.com/pdf/repository_di/7179/lin-extreme-environment-displacement-transducer-149554_1m.jpg)

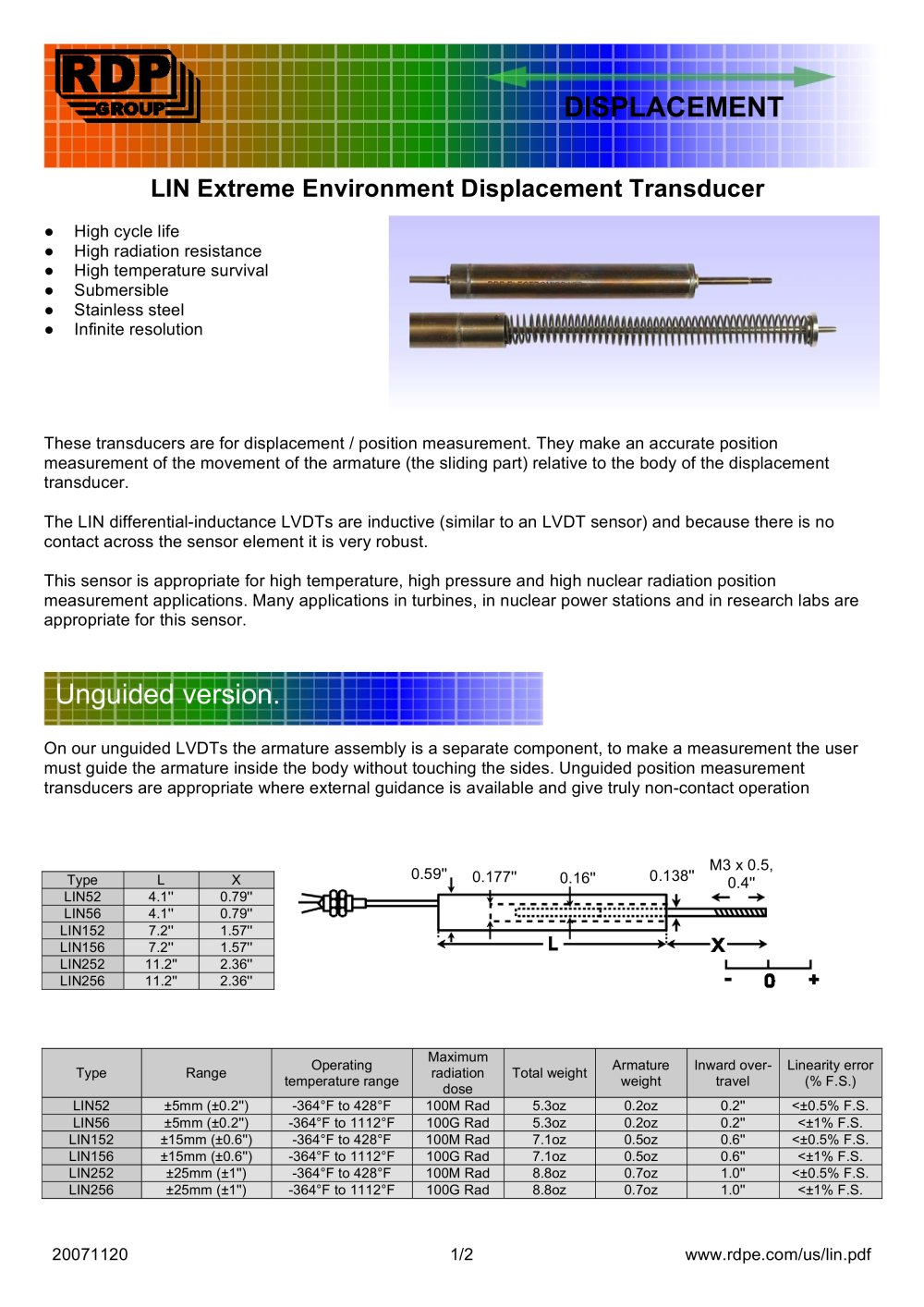

20071120 1/2 www.rdpe.com/us/lin.pdf Type L X LIN52 4.1'' 0.79'' LIN56 4.1'' 0.79'' LIN152 7.2'' 1.57'' LIN156 7.2'' 1.57'' LIN252 11.2'' 2.36'' LIN256 11.2'' 2.36'' Type Range Operating temperature range Maximum radiation dose Total weight Armature weight Inward overtravel Linearity error (% F.S.) LIN52 ±5mm (±0.2'') -364°F to 428°F 100M Rad 5.3oz 0.2oz 0.2'' <±0.5% F.S. LIN56 ±5mm (±0.2'') -364°F to 1112°F 100G Rad 5.3oz 0.2oz 0.2'' <±1% F.S. LIN152 ±15mm (±0.6'') -364°F to 428°F 100M Rad 7.1oz 0.5oz 0.6'' <±0.5% F.S. LIN156 ±15mm (±0.6'') -364°F to 1112°F 100G Rad 7.1oz 0.5oz 0.6'' <±1% F.S. LIN252 ±25mm (±1'') -364°F to 428°F 100M Rad 8.8oz 0.7oz 1.0'' <±0.5% F.S. LIN256 ±25mm (±1'') -364°F to 1112°F 100G Rad 8.8oz 0.7oz 1.0'' <±1% F.S. DISPLACEMENT LIN Extreme Environment Displacement Transducer œ High cycle life œ High radiation resistance œ High temperature survival œ Submersible œ Stainless steel œ Infinite resolution These transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer. The LIN differential-inductance LVDTs are inductive (similar to an LVDT sensor) and because there is no contact across the sensor element it is very robust. This sensor is appropriate for high temperature, high pressure and high nuclear radiation position measurement applications. Many applications in turbines, in nuclear power stations and in research labs are appropriate for this sensor. On our unguided LVDTs the armature assembly is a separate component, to make a measurement the user must guide the armature inside the body without touching the sides. Unguided position measurement transducers are appropriate where external guidance is available and give truly non-contact operation Unguided version. 0.59'' 0.177'' 0.16'' 0.138'' M3 x 0.5, 0.4''
Open the catalog to page 1![LIN Extreme Environment Displacement Transducer - 2](https://img.directindustry.com/pdf/repository_di/7179/lin-extreme-environment-displacement-transducer-149554_2m.jpg)
20071120 2/2 www.rdpe.com/us/lin.pdf All dimensions and specifications are nominal. Type L X LIN52A 4.7'' 2.22'' LIN56A 4.7'' 2.22'' LIN152A 7.8'' 3.90'' LIN156A 7.8'' 3.90'' LIN252A 11.8'' 3.70'' LIN256A 11.8'' 3.70'' Specification Excitation/supply (acceptable) 0.5V to 5V rms, 2.4kHz to 9.6kHz (sinusoidal) Temperature coefficient (combined zero and span) ±0.01% F.S. /°F (typical) Electrical termination 6.6ft (integral cable) Longer available to order. Maximum static pressure 2901psi (482°F maximum) Type Range Operating temperature range Maximum radiation dose Total weight Spring force at...
