ACT LVDT Displacement Transducer
3Pages

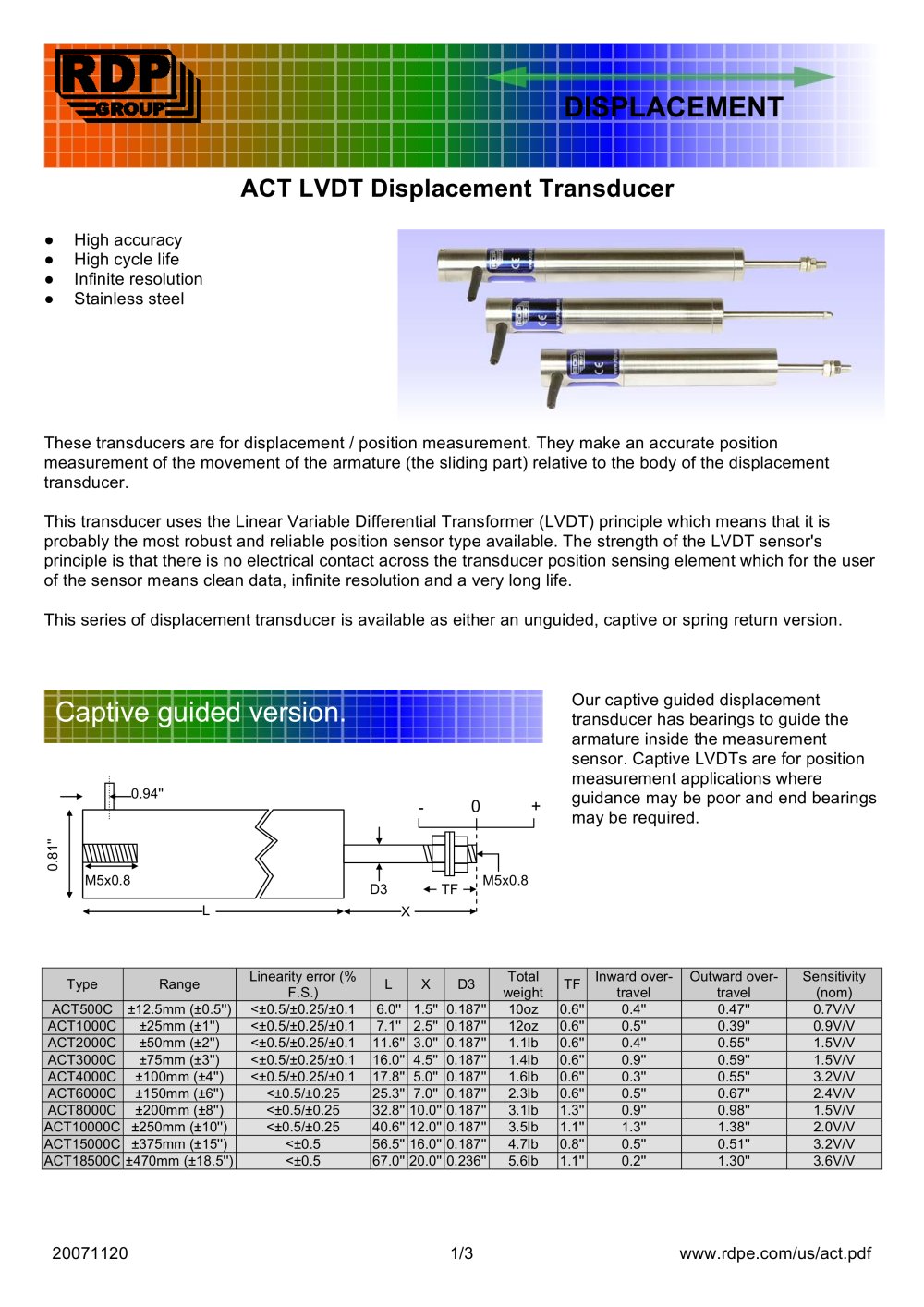

20071120 1/3 www.rdpe.com/us/act.pdf Type Range Linearity error (% F.S.) L X D3 Total weight TF Inward overtravel Outward overtravel Sensitivity (nom) ACT500C ±12.5mm (±0.5'') <±0.5/±0.25/±0.1 6.0'' 1.5'' 0.187'' 10oz 0.6'' 0.4'' 0.47'' 0.7V/V ACT1000C ±25mm (±1'') <±0.5/±0.25/±0.1 7.1'' 2.5'' 0.187'' 12oz 0.6'' 0.5'' 0.39'' 0.9V/V ACT2000C ±50mm (±2'') <±0.5/±0.25/±0.1 11.6'' 3.0'' 0.187'' 1.1lb 0.6'' 0.4'' 0.55'' 1.5V/V ACT3000C ±75mm (±3'') <±0.5/±0.25/±0.1 16.0'' 4.5'' 0.187'' 1.4lb 0.6'' 0.9'' 0.59'' 1.5V/V ACT4000C ±100mm (±4'') <±0.5/±0.25/±0.1 17.8'' 5.0'' 0.187'' 1.6lb 0.6'' 0.3'' 0.55'' 3.2V/V ACT6000C ±150mm (±6'') <±0.5/±0.25 25.3'' 7.0'' 0.187'' 2.3lb 0.6'' 0.5'' 0.67'' 2.4V/V ACT8000C ±200mm (±8'') <±0.5/±0.25 32.8'' 10.0'' 0.187'' 3.1lb 1.3'' 0.9'' 0.98'' 1.5V/V ACT10000C ±250mm (±10'') <±0.5/±0.25 40.6'' 12.0'' 0.187'' 3.5lb 1.1'' 1.3'' 1.38'' 2.0V/V ACT15000C ±375mm (±15'') <±0.5 56.5'' 16.0'' 0.187'' 4.7lb 0.8'' 0.5'' 0.51'' 3.2V/V ACT18500C ±470mm (±18.5'') <±0.5 67.0'' 20.0'' 0.236'' 5.6lb 1.1'' 0.2'' 1.30'' 3.6V/V DISPLACEMENT ACT LVDT Displacement Transducer œ High accuracy œ High cycle life œ Infinite resolution œ Stainless steel These transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer. This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor's principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life. This series of displacement transducer is available as either an unguided, captive or spring return version. Captive guided version. Our captive guided displacement transducer has bearings to guide the armature inside the measurement sensor. Captive LVDTs are for position measurement applications where guidance may be poor and end bearings may be required. L X 0.81'' 0.94'' D3 TF M5x0.8 - 0 + M5x0.8

20071120 2/3 www.rdpe.com/us/act.pdf Type Range Linearity error (% F.S.) L X Total weight Armature weight TF Inward over-travel Sensitivity (nom) ACT500 ±12.5mm (±0.5'') <±0.5/±0.25/±0.1 5.0'' 1.7'' 6oz 0.6oz 0.6'' 0.6'' 0.7V/V ACT1000 ±25mm (±1'') <±0.5/±0.25/±0.1 6.1'' 2.7'' 8oz 0.8oz 0.6'' 0.9'' 0.9V/V ACT2000 ±50mm (±2'') <±0.5/±0.25/±0.1 10.6'' 3.2'' 11oz 1.3oz 0.6'' 0.6'' 1.5V/V ACT3000 ±75mm (±3'') <±0.5/±0.25/±0.1 15.0'' 4.7'' 1.0lb 1.9oz 0.6'' 1.1'' 1.5V/V ACT4000 ±100mm (±4'') <±0.5/±0.25/±0.1 16.8'' 5.2'' 1.3lb 2.5oz 0.6'' 0.6'' 3.2V/V ACT6000 ±150mm (±6'') <±0.5/±0.25 24.3''...

20071120 3/3 www.rdpe.com/us/act.pdf All dimensions and specifications are nominal. RDP Electrosense 2216 Pottstown Pike Pottstown, PA 19465 USA Tel: 610-469-0850 Tel: 800-334-5838 Fax: 610-469-0852 Email: info@rdpe.com Due to our policy of on-going development, specifications may change without notice. Any modification may affect some or all of the specifications for our equipment.
