Douilles pour pinces W et B

Product catalog summary

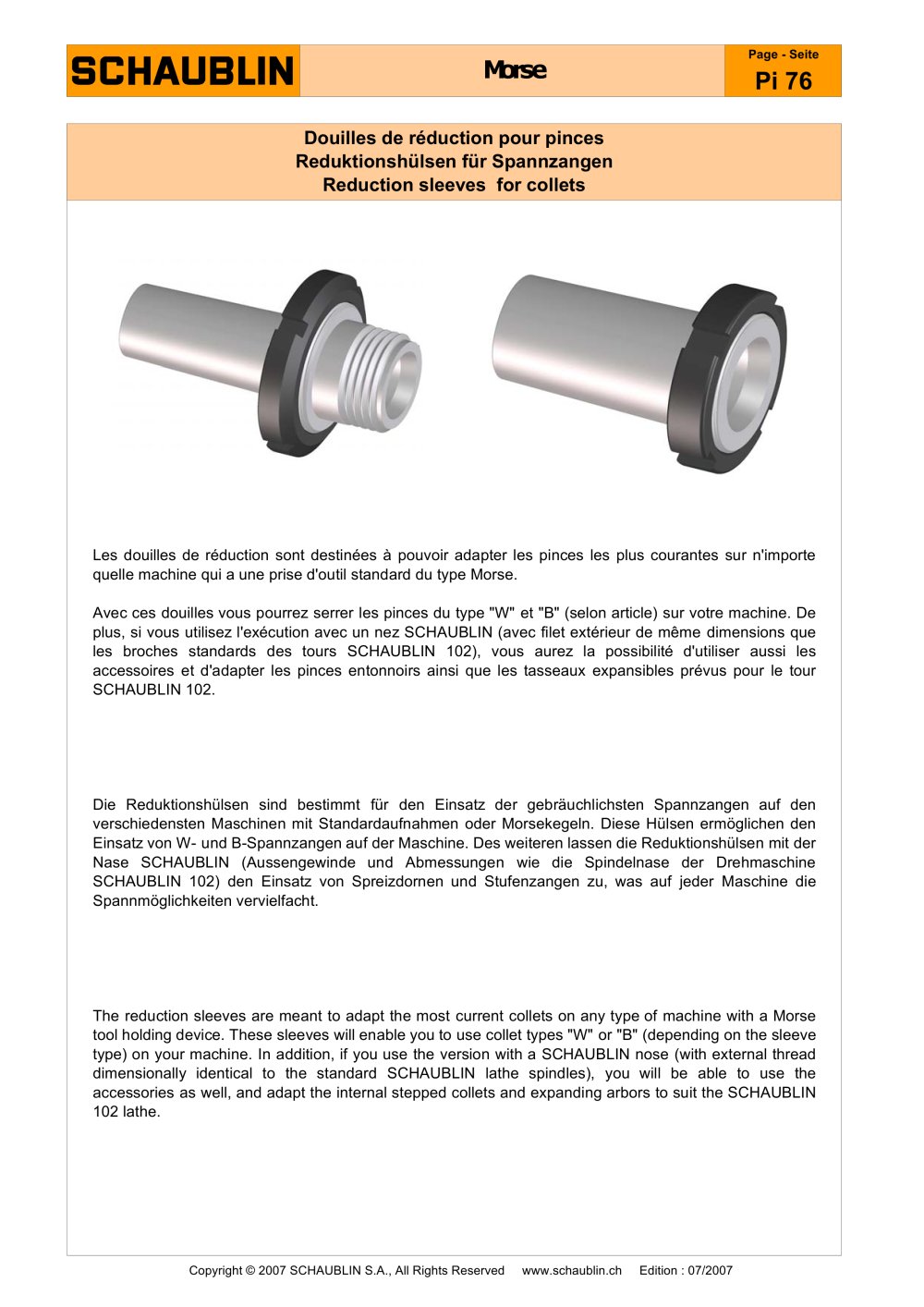

Overview: The document provides technical specifications and usage guidelines for reduction sleeves designed for collets, specifically for use with various machines equipped with standard Morse tool holding devices. These sleeves facilitate the use of W and B type collets and are compatible with SCHAUBLIN lathe accessories.

Specifications: The reduction sleeves are compatible with the most common collets and can be used on machines with standard Morse tapers. They are available in different types, including those with a SCHAUBLIN nose, which have external threads matching the SCHAUBLIN 102 lathe spindles.

Compatibility: The sleeves allow the use of external and internal step collets and expanding arbors, enhancing the versatility of the machine's clamping capabilities. Specific models are designed for use with Walter Helitronic Power, Mini Power, and Micro grinding machines.

Included Components: The document lists various components included with the sleeves, such as releasing nuts and reduction nuts, which are highlighted in bold to indicate their inclusion in the delivery.

Technical Data: Detailed tables provide dimensions and part numbers for different sleeve types, including measurements for diameter, length, and thread specifications. The tables also specify which models are suitable for specific applications and machines.

Usage Recommendations: The document advises on the appropriate use of the sleeves with different collet types and machine models, ensuring optimal performance and compatibility.

Catalog excerpts

Page - Seite MNO D1D2D3D4 L1L2 Erm鼶glicht den Einbau von Glockenzange, Ringfutter und SpreizdornePermet l'emploi des pinces entonnoirs, pinces chelles et tasseaux expansibles Allows to use external step collets, internal step collets and expanding arborsNanneauRing L1 caractres gras :inclus dans la livraison M37.6x3 ring Fettschrift :im Lieferumfang inbegriffenbold script :included in delivery O騩crou d'extractionAusziehmutter releasing nut 1) 37.97 N 68-03017 2037.97Mo5/W 2020 38 102-21044 OM387045M387045 M448060 L2TypeArt.D1D2D3D4 68-030181 7575100M37.6x3143 39.3 68-03019 2548M47.6x380143Mo4/W...
