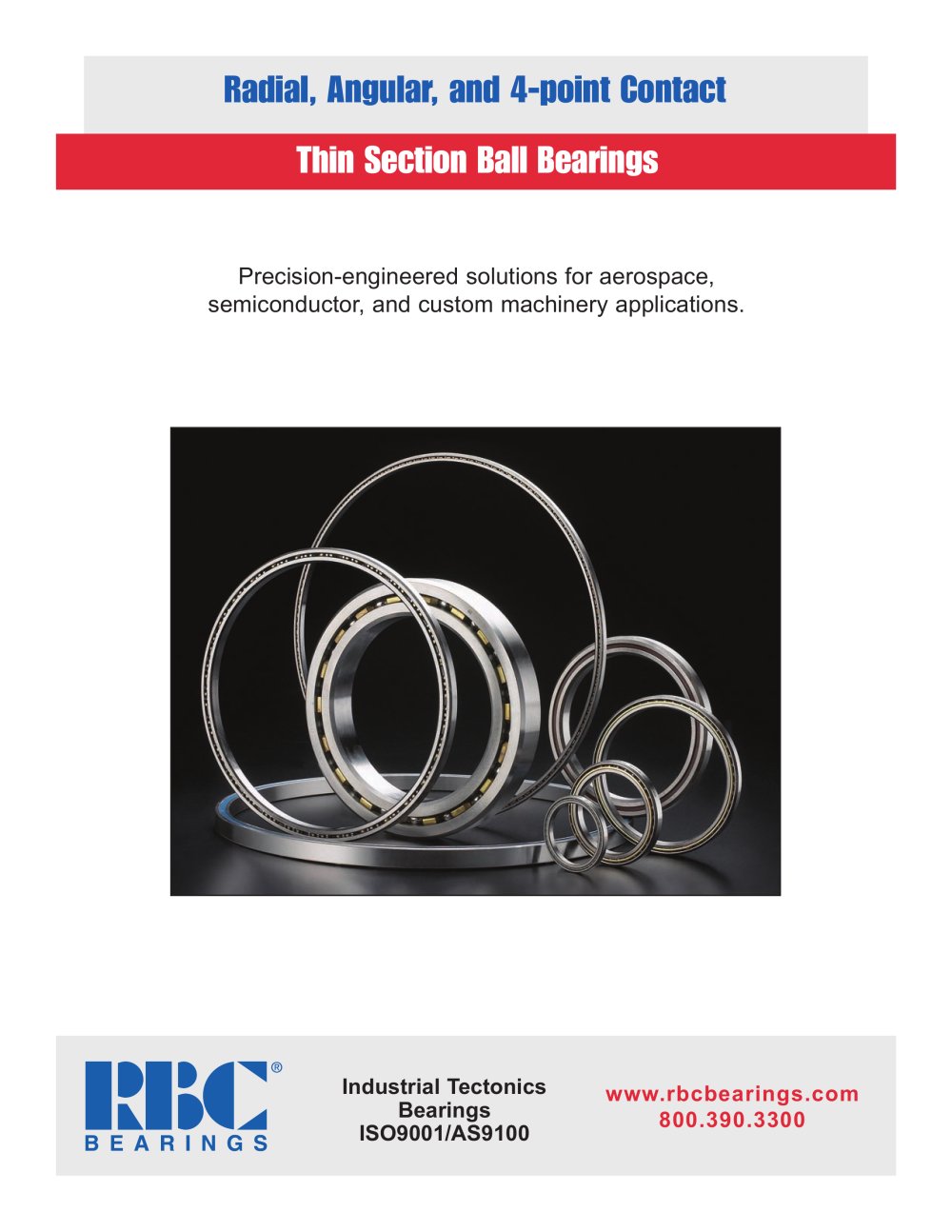

RBC Bearings Incorporated (RBCBearings, RBC) has had a longtradition of innovation, commitment, and quality since the company was founded in 1919. Today, RBC Bearings has grown into a world- class manufacturer of standard and custom-engineered bearings and related products, with a product focus on research, testing, and development of the best product for specific applications. > RBC thin section ball bearings are engineered to solve a variety ofdesign problems that cannot be solved with conventional ball bearings.Abearing is considered a thin section when the bore diameter is greaterthan four...

TABLE OFCONTENTS SELECTIONGUIDEPART # DESIGNATION RADIALC-TYPE ANGULAR A-TYPE4-PT.X-TYPESEALEDC-TYPE SEALEDX-TYPE ENGINEERING DATA TOLERANCES & FITSCUSTOMFEATURESSEPARTORGUIDETYPICAL

Material,Conditiona > 2 max 52100, Air melt1.0052100, Vacuum degassed1.50 52100, Air melt & TDC Plate2.00 52100, Vacuum melt, (CEVM)3.00440C, Air melt1.00440C, Vacuum melt (CEVM)3.00M50, Vacuum melt (CEVM)5.00M50, Vacuum re-melt (VIM-VAR)8.00 > Capacity and fatigue life information is based on ANSI/ABMA Standard 9-1990 published by: The American Bearing Manufacturers Association, Inc., 1200 19th Street, NW, Suite 300, Washington, DC 20036-2401 witha > 1 = reliability factora > 2 = material & processing factora > ENGINEERING 3 = application factor > DATA Reliability %L > n Reliability Factor a...

Face-to-Face, DF Radial Play > F-Type Radial play (diametral clearance) is the distancethe inner ring can be moved radially from one ex- treme position to the other. Standard RBC Thin Section Ball Bearings are manufactured with enough radial play that some clearance remains after the bearing is properly installed. RADIAL PLAYPRELOAD Heavy radial loadsՕCombined thrust & radial loadsReversing thrust loadՕMoment loads Radial and Axial Runout Tandem, DTT-Type > Radial runout of RBC Thin Section Ball Bearings isa measurement of the thickness variation of the bearing rings. The outer ring is measured...

Shim Herefor Proper AxialPreload Radial Load ReversingThrust Load F-Type Configuration B-Type Configuration Radial Load > ReversingThrust Load Shim Here for Proper Axial Preload >

Radial LoadThrust Load B-Type Configuration Single Bearing X-Type Configuration > ENGINEERING DATA Radial LoadThrust Load >

BC manufactures many custom bearings designed to optimize bearing performance for specific applica-tions. Special features include changes in radial play, lubri- cants, materials, preloading and design. Contact your RBC Sales Engineer for your custom bearing needs. > Challenge us: There are many design options availableto solve difficult application problems. The radial play (diametral clearance) of a thin sectionball bearing will need to be predetermined if mounting fits other than those recommended are used. Special radial play may be required for a temperature differential across the bearing,...

STAINLESS STEEL STAINLESS STEEL BRASS BRASS EFFECT ON TORQUE NYLON > TEMPERATURE TOLERANCE NYLON >

hin section ball bearings are generally used in applica-tionswith space, weight, and load constraints. Some typical applications for standard RBC Thin Section Ball Bearings include: Medical EquipmentMachine ToolsRadar EquipmentTextile Machinery Material HandlingSatellite Systems Antenna PedestalsPackaging Machinery AerospaceScanning Equipment Optical EquipmentSemi-ConductorRotary JointsManufacturing Equipment Military TurretsSlip Ring Assemblies RoboticsHarmonic DrivesSpeed Reducers Paper Making Machine Apair of radial contact RBC Thin Section Ball Bearings is the ideal choice for applications...

n addition to the standard RBC Thin Section Ball Bearings, RBC will also manufacture specially designedbearings for specific applications. RBC Sales Engineers andCustomer Service Representatives are available for consultation. Continuous Rotating Machine Tool Table Using a 4-point contact RBC Thin Section Ball Bearing provides stiffness for accurate positioning as well as carrying multiple loads. RBC supplied this assembly as shown. Machine Tool Indexing Table Running at slow speeds with combined load carrying capabilities and minimal space determined the use of this 4-point RBC Thin Section...

Radar Antenna Drive An RBC Thin Section Ball Bearing designed with a gear integrated with the inner ring, achieved both a significant weight reduction and improved accuracy as well as sim- plicity of assembly. This bearing is used in a radar antenna drive which has limited space available for its support bearing. Coil springs were used as spacers between balls to lower bearing torque and further reduce weight. > .500 in.26.750 in.27.750 in. Aircraft Gun Turret Abearing was required which would take radial, axial, and moment loading, to support an aircraft gun turret. It was desirable to have...

Radial, angular contact, extended innerring, high misalignment. Commercial and industrial, precision, Mil-Spec series, self-lubricating, and air-craft. Sold under the QuadLube > , Heim ImpactTuff > ή , SpreadLock > Seal > , ή , Unibal > ,and CrossLube > ή , DuraLube , MillTuff ٙ Spherco > brands. Available in inchand metric sizes. bearings, and self-lubricating bearings. Available in inch and metric sizes. > Standard cross sections to one inch. Sizes to 40 inches. Stainless steel and other materials are available. Seals are available on all sizes and standard cross sections. Precision ground,...
