RBC Bearings
Dowel Pins, Loose Needle Rollers, Shafts

Dowel Pins, Loose Needle Rollers, Shafts

Product catalog summary

Overview: RBC Bearings Incorporated, established in 1919, specializes in the production of precision bearings and related components. The company is ISO 9001:2000 registered and offers a wide range of products including dowel pins, loose needle rollers, and shafts.

Product Specifications:

Materials: Common materials include 52100, 8620, 440C, M50, and various stainless steels such as 302, 303, 304, 316, 416, 420.
Dimensions: Diameter ranges from 0.031 to 1.250 inches (0.787 to 31.750 mm) and lengths from 0.125 to 8.000 inches (3.17 to 203.20 mm).
End Types: Options include spherical, flat with corner break, ground, and chamfered ends.
Coatings: Available coatings include black oxide, manganese phosphate, zinc dichromate, electroless nickel, and oil.

Applications:

Precision ground ends and spherical ends are used in bearings, planetary gear sets, overrunning clutches, and engine tappet rollers.
Motor shafts, rails, and machined components are utilized in gear motors and other mechanical assemblies.
Large rollers and pins are applied in alignment, crank, and wrist pin applications.

Product Range:

Spherical Plain Bearings: Available in radial, angular contact, and high misalignment types with various lubrication options.
Self-Lubricating Bearings: Include radial, thrust, rod ends, and spherical bearings suitable for high temperature and load conditions.
Airframe Control Bearings: Comprise ball bearing types and needle roller track rollers.
Thin Section Ball Bearings: Offered in standard cross sections up to one inch and sizes up to 40 inches.
Rod Ends and Ball Bearings: Available in commercial, industrial, and precision series, including Mil-Spec and aircraft-grade options.
Cam Followers and Needle Roller Bearings: Include standard, heavy stud, and yoke types, with patented designs for enhanced performance.
Tapered Roller and Thrust Bearings: Suitable for heavy-duty applications such as Class 8 truck and trailer wheel bearings.
Ball Screws: Precision ground and rolled options for high accuracy and long life.

Commitment to Quality: RBC emphasizes innovation, commitment, and quality across its product lines, serving industries such as aerospace, oil and energy, semiconductor equipment, packaging, and heavy trucking.

Catalog excerpts

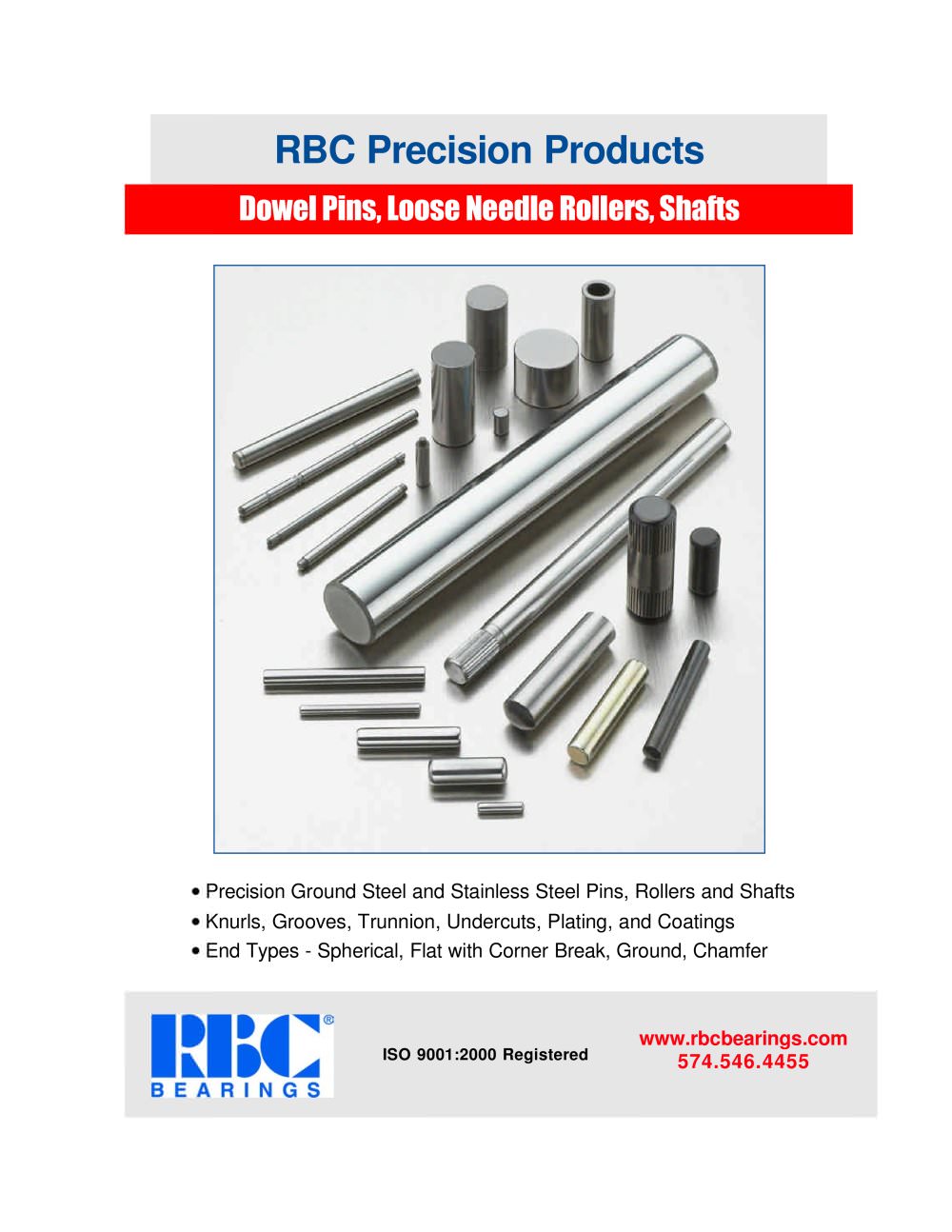

Dowel Pins, Loose Needle Rollers, Shafts-1

? Precision Ground Steel and Stainless Steel Pins, Rollers and Shafts ? Knurls, Grooves, Trunnion, Undercuts, Plating, and Coatings ? End Types - Spherical, Flat with Corner Break, Ground, Chamfer www.rbcbearings.com574.546.4455 > ISO 9001:2000 Registered size="-1">

Open the catalog to page 1

Dowel Pins, Loose Needle Rollers, Shafts-2

Bearings PlanetaryGear Sets OverrunningClutches Engine TappetRollers ? Diameter:.031 to 1.250 inch.787 to 31.750 mm ? Length:.125 to 8.000 inch3.17 to 203.20 mm ? Available in inch and metric sizes ? Superior roundness and finish ? Typical materials:52100, 8620, 440C, M50 ? Other materials available Flat Ends with Corner BreakPrecision Ground EndsSpherical Ends >

Open the catalog to page 2

Dowel Pins, Loose Needle Rollers, Shafts-5

Typical Applications > RollerShaft AlignmentPin CrankPin ? Materials:52100, 8620, 4140 Stainless ? Diameter:Up to 1.250 inch ? Length:Up to 8.000 inch Typical Coatings ? Black Oxide ? Manganese Phosphate ? Zinc Dichromate ? Electroless Nickel ? Oil ? Others as Required >

Open the catalog to page 5
