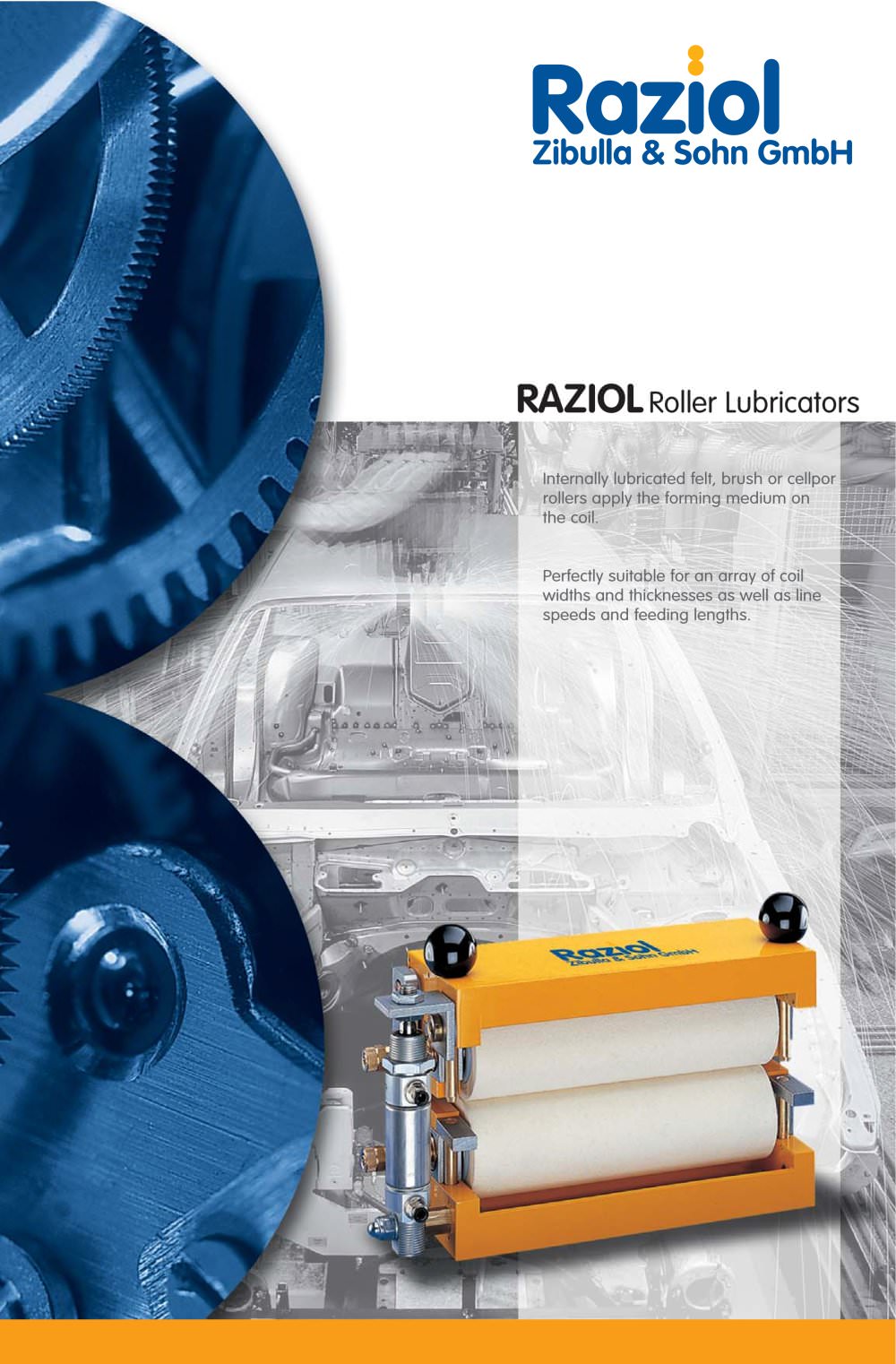

Internally lubricated felt, brush or cellpor rollers apply the forming medium on the coil. Perfectly suitable for an array of coil widths and thicknesses as well as line speeds and feeding lengths. RAZIOL Roller Lubricators
Open the catalog to page 1
RAZIOL Roller Lubricators Mist-free oil application Roller lubricators by RAZIOL use internally lubricated felt, brush or cellpor rollers to apply the forming medium on the coil material without leaving oil mist. Narrow coil (from 5 mm wide) as well as wide coil (up to 1300 mm) are optimally lubricated according to forming requirements. Speedy roller change RAZIOL roller lubricator quick-change devices (SW) require very little maintenance. The lubrication rollers can be changed in no time flat. No tools required. Mist-free oil application All RAZIOL roller lubricators come equipped with oil...
Open the catalog to page 2
RAZIOL Roller Lubricators Formats Accessories Designation Roller dia. Max. material strgth. Max. feeding length Max. oil visc. (40° C) Lubrication width RB M RB M-SW RB F RB B RB F-SW RB FK-SW RB FK-P-SW RB PF-SW RB SF-SW RB TS SW K 32 mm 32 mm 60 mm 60 mm 60 mm 60 mm 60 mm 60 mm 110 mm 110 mm 1.0 mm 1.0 mm 1.5 mm 1.5 mm 4.0 mm 4.0 mm 4.0 mm 4.0 mm 10.0 mm 15.0 mm 100 mm 150 mm 200 mm 200 mm 600 mm 600 mm 600 mm 600 mm 800 mm 800 mm 100 mm2/s 100 mm2/s 150 mm2/s medium to high viscosity 150 mm2/s 150 mm2/s 150 mm2/s 150 mm2/s 200 mm2/s 200 mm2/s 15 - 300 mm 15 - 400 mm 75 - 600 mm 55 - 430...
Open the catalog to page 3
RAZIOL Zibulla & Sohn GmbH Hagener Str. 144 + 152 • D-58642 Iserlohn Phone: +49 (0) 23 74 - 50 00 - 0 Fax: +49 (0) 23 74 - 50 00 - 12 E-mail: info@raziol.de Internet: http://www.raziol.de RAZIOL Roller Lubricators
