RAZIOL Non-contact Lubrication
RAZIOL Non-contact Lubrication
RAZIOL provides non-contact lubrication solutions for forming processes, ensuring optimal lubrication of coils, blanks, and formed parts without direct contact with the material. This document outlines the specifications and features of RAZIOL's spray chambers and lubrication systems.
Specifications
The RAZIOL spray chambers are designed with either 2 or 6 nozzles, suitable for narrow coils up to 300 mm wide or wider coils up to 1600 mm. The nozzles, such as the BS-25/SV, are specifically designed for precision lubrication, with lubrication images depending on the medium and pressure settings.
Spray Chambers
1. Straightforward Spray Chambers: Equipped with LAMA or CD type nozzles for narrow coils.
2. SprayChamberTransfer (SKT): Designed for wider coils, featuring telescopic extensions for easy access and maintenance.
Supply Management
The supply stands include all necessary components such as pressurized supply tanks, heaters, and control units. They are designed to accommodate various accessories like exhausters and automatic filling devices.
Precision and Customization
RAZIOL offers a range of accessories and customization options to meet individual requirements, ensuring precise and cost-effective lubrication solutions.
Contact Information
RAZIOL Zibulla & Sohn GmbH
Hagener Str. 144 + 152, D-58642 Iserlohn
Phone: +49 (0) 23 74 - 50 00 - 0
Email: [email protected]
Website: www.raziol.de
Catalog excerpts

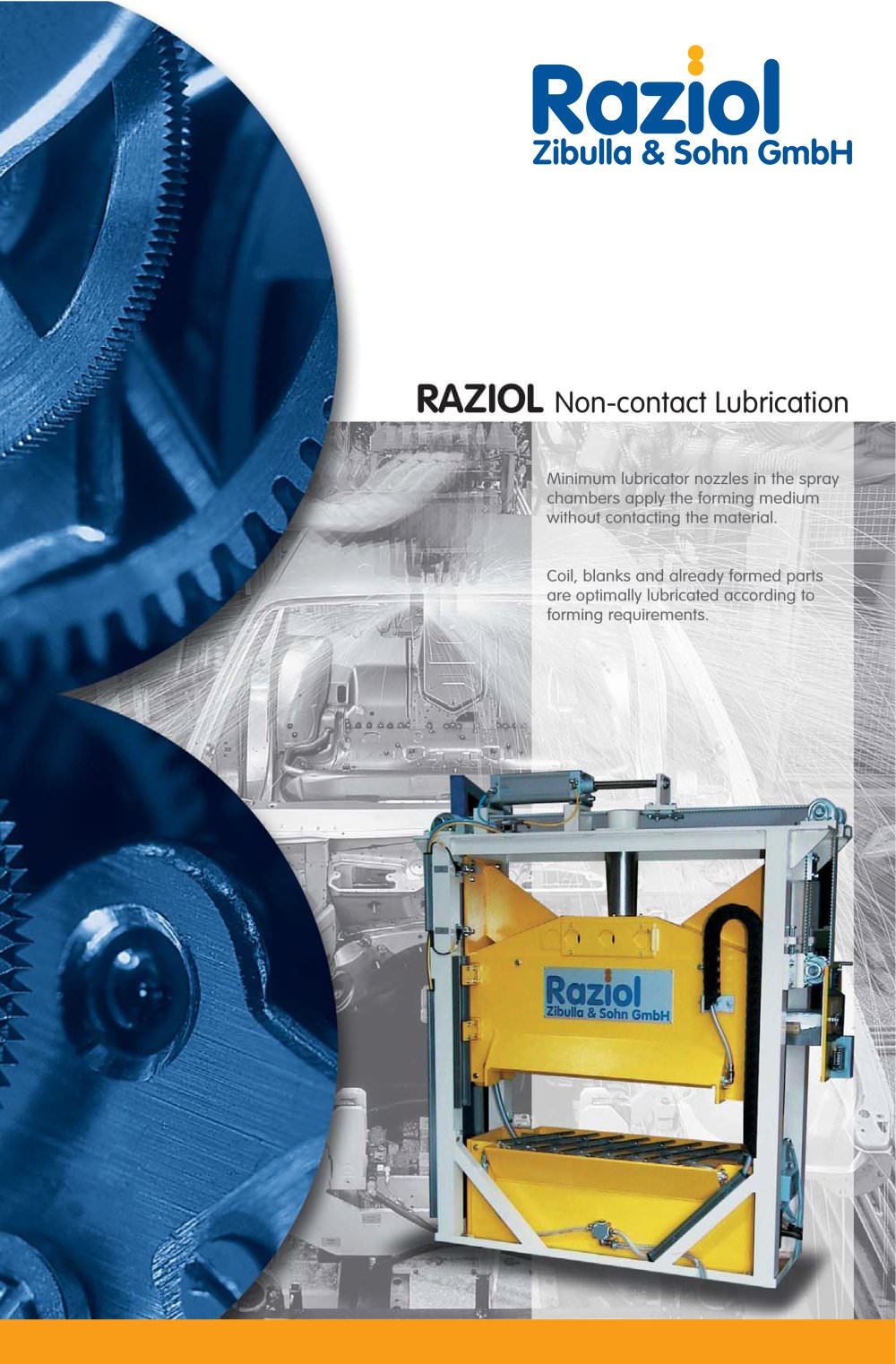

Zibulla & Sohn GmbH RAZIOL Non-contact Lubrication Minimum lubricator nozzles in the spray chambers apply the forming medium without contacting the material. Coil, blanks and already formed parts are optimally lubricated according to forming requirements.
Open the catalog to page 1
RAZIOL Non-contact Lubrication SKT Spray Chambers Our latest Standard-All-RoundSystem for non-contact lubrication. The most straightforward spray chambers Ample accessories In the straightforward RAZIOL spray chambers designed with only We look forward to providing advice according to your 2 nozzles of type LAMA or CD, narrow coil (up to 300 mm wide) individual requirements. Our spray chambers and are lubricated on both sides. supply stands can be equipped with ample accessories such as exhausters, medium changing units, automatic filling devices for barrels or levelcontrolled return tanks. SprayChamberTransfer...
Open the catalog to page 2
RAZIOL Non-contact Lubrication RAZIOL Spray Chambers Feeding height Lubrication width Nozzle Girders PC, manifold, supply tank for Drylub, manual distributor, electrical circulation pump, supply pump, distributor ball cock, flow sensor, medium heater
Open the catalog to page 3
RAZIOL Non-contact Lubrication RAZIOL Zibulla & Sohn GmbH Hagener Str. 144 + 152 • D-58642 Iserlohn Phone: +49 (0) 23 74 - 50 00 - 0 Fax: +49 (0) 23 74 - 50 00 - 12 E-mail: [email protected] Internet: http://www.raziol.de
